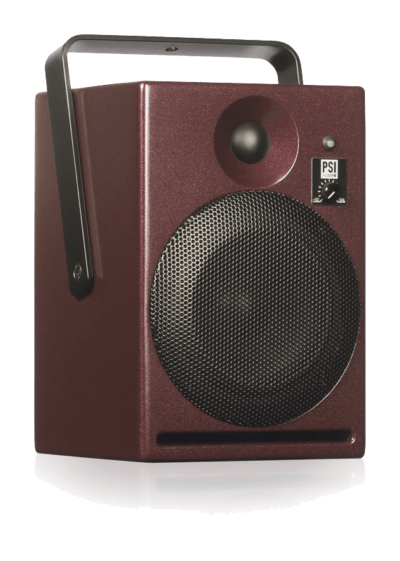

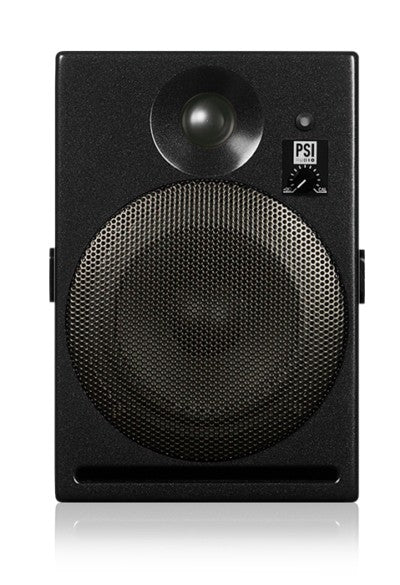

The A14-M is designed to produce the highest possible SPL and broad bandwidth in an extremely compact cabinet. It is perfect for applications with limited space that still require the best in terms of precision and reliability. Nothing else comes close.
Fast and reliable results with the A14-M Broadcast
âHave you heard?â The number one question in news and gossip does not concern the audio engineer with A14-M speakers â they have heard everything.
The sound that has earned PSI Audio the respect of sound professionals all around the world improves your results and quickens your pace. From broadcast vans to the use as surround speakers in immersive setups, the A14-M Broadcast brings the trademark PSI Audio accuracy into the most discerning and demanding environments. Speakers you can trust ⦠from any angle.
Frequency Range
56Hz â 23kHz
Typical listening distance
0.5 to 1m
Handmade in Switzerland
| Potential peak power | 110 + 45 | W |
| Continuous max SPL@1 m | 98 | dB |
| Short term max. SPL@1m | 103 | dB |
| Peak max. SPL@1m | 113 | dB |
| Signal to noise ratio (S/N) | 95 | dBA |
| Bandwidth at -6dB | 56-23'000 | Hz |
| SPL tolerances |  ±2.5 | dB |
| Phase tolerances |  ± 45 (350 Hz â 20 kHz) | deg |
| Dispersion (H x V) | 80 x 35 | deg |
| System | 2 | ways |
| Crossover frequency | 3600 | Hz |
| Woofer ext. diam. | 147 | mm |
| Woofer ext. diam. | 5.8 | in |
| W. diaphragm diam. | 104 | mm |
| W. diaphragm diam. | 4.1 | in |
| Tweeter ext. dim. | 90 | mm |
| Tweeter ext. dim. | 3.5 | in |
| T. diaphragm diam. | 27 | mm |
| T. diaphragm diam. | 1.06 | in |
| Dimensions W x H x D | 163 x 243 x 170 | mm |
| Dimensions W x H x D | 6.4 x 9.6 x 6.7 | in |
| Net Weight | 4.9 | Kg |
| Net Weight | 10.8 | lbs |
| Input connector | 1 x XLR F / 3P | |
| Warranty | 5 (+1) | years |
