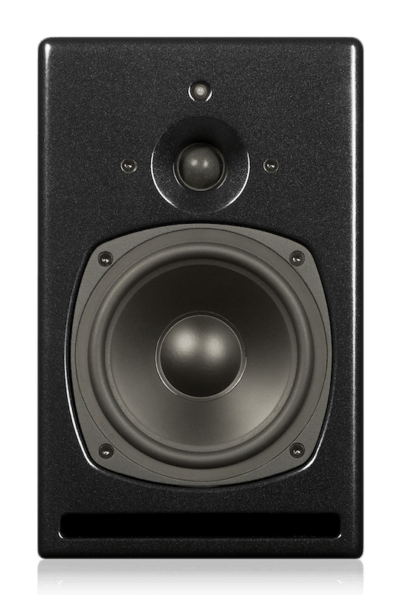

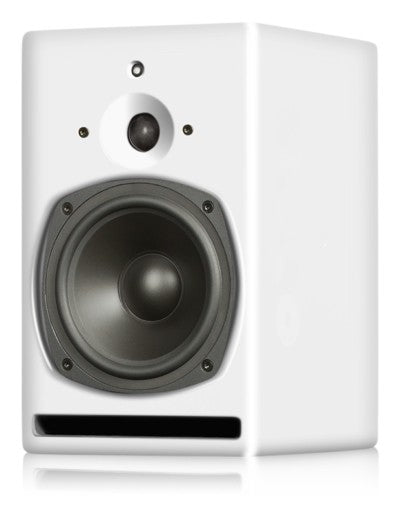

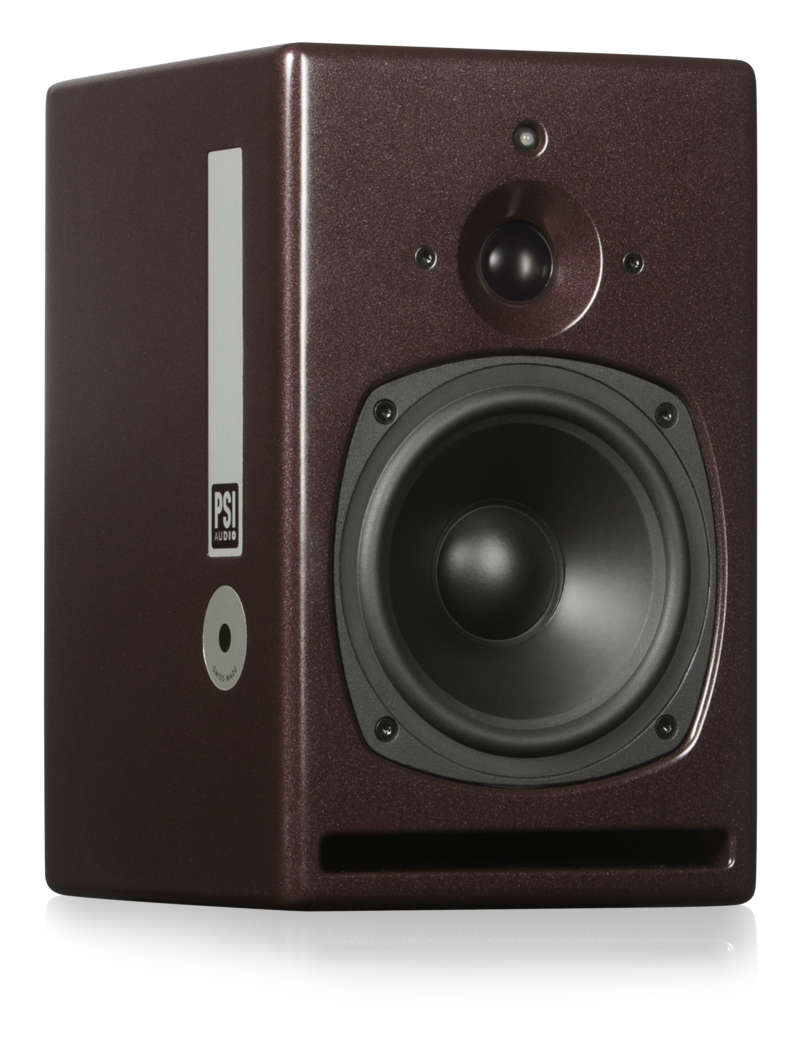

The A17-M is THE REFERENCE of near field monitors. Powerful for its size, it delivers an uncompromised quality in term of stereo image, low end control and transparency all over the bandwidth. Are you ready to step ahead?
Your success story with the A17-M
Only you know where your story begins, and who knows where it will take you? With the A17-M, you can trust your judgement every step of the way. Listen better, create faster.
You can trust your speakers, since it is their sound that has earned PSI Audio the respect of audio professionals all around the world. Building on over 40 years of experience and continuous development, the A17-M is the definitive nearfield monitor. Assess your work comprehensively without a subwoofer â or enhance the A17-M with a , for example. Whatever story you need to tell, the A17-M helps you get your message across â a friend you should definitely listen to.
Power
170 + 45W
Frequency Range
44Hz â 23kHz
Peak max. SPL@1m
115dB
Typical listening distance
0.7 to 2m
100% Analog â No DSP
Flat frequency response
Perfect stereo image
Handmade Tweeter
Class A/B Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland
| Potential peak power | 170+45 | W |
| Continuous max SPL@1 m | 102 | dB |
| Short term max. SPL@1m | 105 | dB |
| Peak max. SPL@1m | 115 | dB |
| Signal to noise ratio (S/N) | 96 | dBA |
| Bandwidth at -6dB | 44-23'000 | Hz |
| SPL tolerances |  ±2.2 | dB |
| Phase tolerances |  ± 45 (300 Hz â 20 kHz) | deg |
| Dispersion (H x V) | 75 x 40 | deg |
| System | 2 | ways |
| Crossover frequency | 3500 | Hz |
| Woofer ext. diam. | 180 | mm |
| Woofer ext. diam. | 7.1 | in |
| W. diaphragm diam. | 130 | mm |
| W. diaphragm diam. | 5.1 | in |
| Medium ext. dim. | N/A | mm |
| Medium ext. dim. | N/A | in |
| M. diaphragm diam. | N/A | mm |
| M. diaphragm diam. | N/A | in |
| Tweeter ext. dim. | 90 | mm |
| Tweeter ext. dim. | 3.5 | in |
| T. diaphragm diam. | 27 | mm |
| T. diaphragm diam. | 1.06 | in |
| Dimensions W x H x D | 200 x 320 x 230 | mm |
| Dimensions W x H x D | 7.9 x 12.6 x 9.1 | in |
| Net Weight | 7.4 | Kg |
| Net Weight | 16.3 | lbs |
| Input connector | 1 x XLR F / 3P | |
| Warranty | 5 (+1) | years |
