Reference level USB & SPDIF signal re-clocking with no compromise.
The Absolute Time Signature is a no-compromise design and implementation solving all issues inherent to digital playback, providing the ultimate quality signal for any DAC, regardless of price or brand.
Such a purified, re-generated signal is the first step to a natural, high-performance playback.
It was conceived, designed, and manufactured as an ultra hi-end audiophile device, based only on proprietary technologies developed by extensive, multi-year R&D by experts in software and hardware electronics.
It operates for both USB and SPDIF signals.
Evolution to the Extreme level.
As a leader in re-clocking platform technology, Ideon Audio announced this new design after heavy customer demand for even higher standards for digital playback.
The Absolute Time Signature comes because of all the R&D, field testing and the experience gained directly from our extensive work in purifying and optimizing the USB signal with our proprietary re-clocking, re-generating, and re-driving family of products.
The Absolute Time takes all this knowledge, design and components deployed to the extreme scale up, being a bespoke product with a final handcrafted touch.
3Rs. Addressing digital playback challenges.
The Absolute Time Signature is an extremely well though off, accurate, and highly sophisticated audiophile device, re-clocking, re-energizing, and re-driving the digital signal with correction at both the input and output stages.
It’s the only way to experience the full potential of not only your DAC but of your complete audio system, by elimination noises, losses and jitter, while dramatically improving dynamics, clarity and resolution, bringing magic out of the digits.
The signal quality is improved at an extreme level.
Furthermore, the proprietary Ideon Audio Triple Distillation USB input comprises a proprietary three-stage noise eradication circuit that eliminates completely digital noise or any distortion from the input signal.
Signature Edition additional features
The technology within is an innovative combination of high-performance design features and best-of-breed quality components, featuring in addition to the highly acclaimed existing Absolute Time:
- Advanced, triple Distillation USB input comprising a proprietary three-stage noise eradication circuit that eliminates digital noise from the input signal.
- Twin cascading, sequential re-clocking systems with the absolute best femto clocks in a proprietary upgradable circuit
- Twin sequential re-driving systems with clean power and re-generating buffering technology
- Parallelized, extremely low-noise power supplies for noise elimination
- Parallelized power transformers of excess load
- Future-proof upgradable platform
The Absolute Time Signature leads to an extreme level of resolution and life-like natural sound with unimaginable dynamics and texture. This device will immediately reveal a clear and perceptible difference in ultimate audio systems.
The Signature version will shine in exotic levels of sound reproduction, for customers who want nothing but the very best musical experience from their system.
Dual Input and Outputs (USB & SPDIF)
The Absolute Time Signature also incorporates separate USB and SPDIF inputs and outputs — a boon for CD collectors for the enjoyment of their music!
SPDIF Correction / Re-clocking
The Absolute Time Signature SPDIF circuit also includes a stabilized coax input and a proprietary, ultra-low-noise, jitter-less re-clocking platform with 12.8MHz master clock output.
Stability and Power
The Absolute Time Signature incorporates electrically stable signal inputs and outputs; more importantly, it has a high current power, 2.5A (5V rail) USB output, capable of driving any load without loss of detail, clarity, or dynamics.
Extreme Power Supply in Reclocking Core

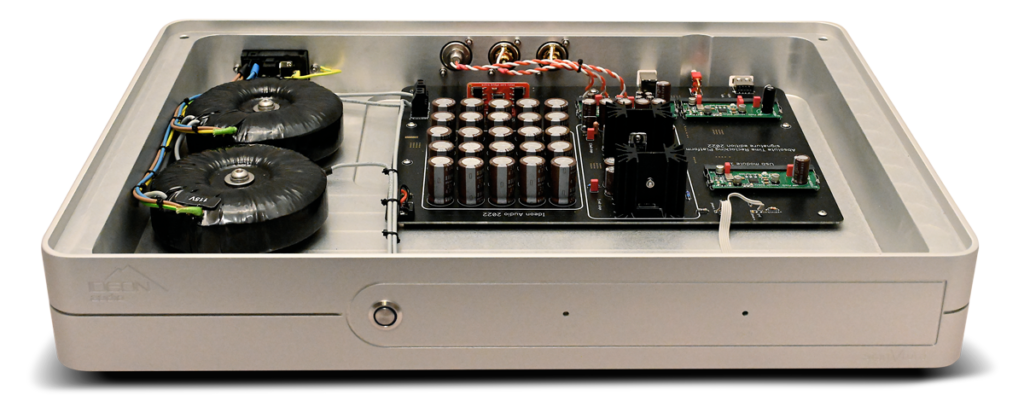

Huge, extremely high current, ultra-low noise linear, power supplies – an Ideon Audio “trademark” are utilized in the Absolute Time Signature. We gave the Absolute Time Signature an huge main power bank composed of selected audiophile, low esr, silk caps.
The Absolute Time Signature is the only reclocker today that uses two parallel, high-wattage audiophile transformers are high-wattage for the application, that are hand-made.
Abundant Clean Power
As with all Ideon devices, power is carefully rectified and regulated to ensure vanishingly low noise and distortion.
In the Absolute Time Signature we have included triple-stage, ultra-stabilized, filtering, fueling the circuit.
This approach is instrumental in achieving the sound quality pursued: alive, real, and dynamic, connecting you to the musical event.
Future Proof Phase Correction
Correct timing is what the Absolute Time is all about! We apply correction at both ends (input-output) of the circuit.
Our multiple, ultra-low jitter femto clocks upgradable platform, ensures that the output signal is phase correct with vanishingly low jitter.

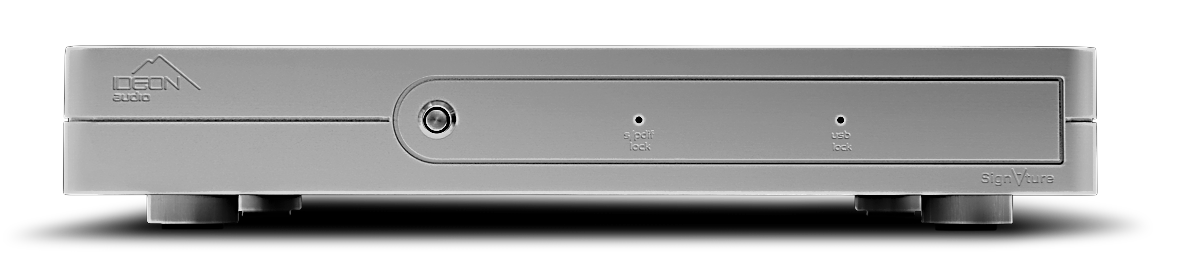

Massive, single-block aluminium chassis
The 22kg (~ 48 lbs) CNC milled chassis takes 15 hours to complete.
The result is a solid mechanical base housing the most intricate and expensive electronics available currently.
Various finishes are available to order.
Share:
Facebook
KEY FEATURES

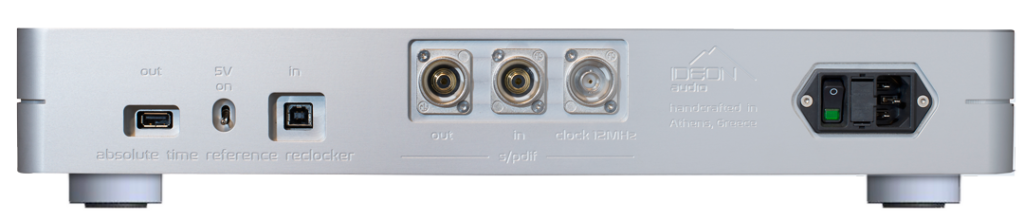

- Separate, electrically stable USB and coaxial (SPDIF) inputs
- Superlatively sized power bank, 2 X hand-made audiophile transformer
- Linear, triple-stage, ultra-low noise, stabilized, power supply, with separate lines to different circuits.
- Low esr, audiophile (silk) capacitors throughout;
- Proprietary, 2 X cascading femto clock re-clocking circuits on an upgradable platform;
- Phase correct restitution and vanishingly low jitter.
- Proprietary, zero-noise rectification bridge eliminates diode-rectification noise
- USB output: ultra-stabilized with signal boost, high power (2.5S / 5V rail), easily drives any load
- SPDIF output: proprietary ultra-low-noise, jitter attenuating PLL / supports 12.8MHz master clock
TECHNICAL SPECIFICATIONS
| USB | 2 X Cascading sequential type 2.0 hi speed: 480Mb/sec |
| SPDIF SAMPLE RATE | 32 -192 re-clocking |
| PCM, DSD | Full Compatibility |
| OPERATING SYSTEM SEAMLESS OPERATION | With USB Stack Support (no special drivers required) |
| USB POWER RAIL | Switchable 5V on/offs |
| POWER SUPPLY | High current Triple ultra-low noise linear power supply |
| OUTPUT USB | 2.5A ultra low noise 5 volt USB |
| LOCK | Custom discrete LED audio clock synchronous display |
| OUTPUT SPDIF | Buffered |
| DIMENSIONS (W X H X D) | 470 x 350 x 110 mm ( (18.5 x 13.8 x 4.3 in) |
| WEIGHT | 22 kg (~ 48 lbs) |
| FINISH | Anodized aluminum, silver/black + additional options upon request |
