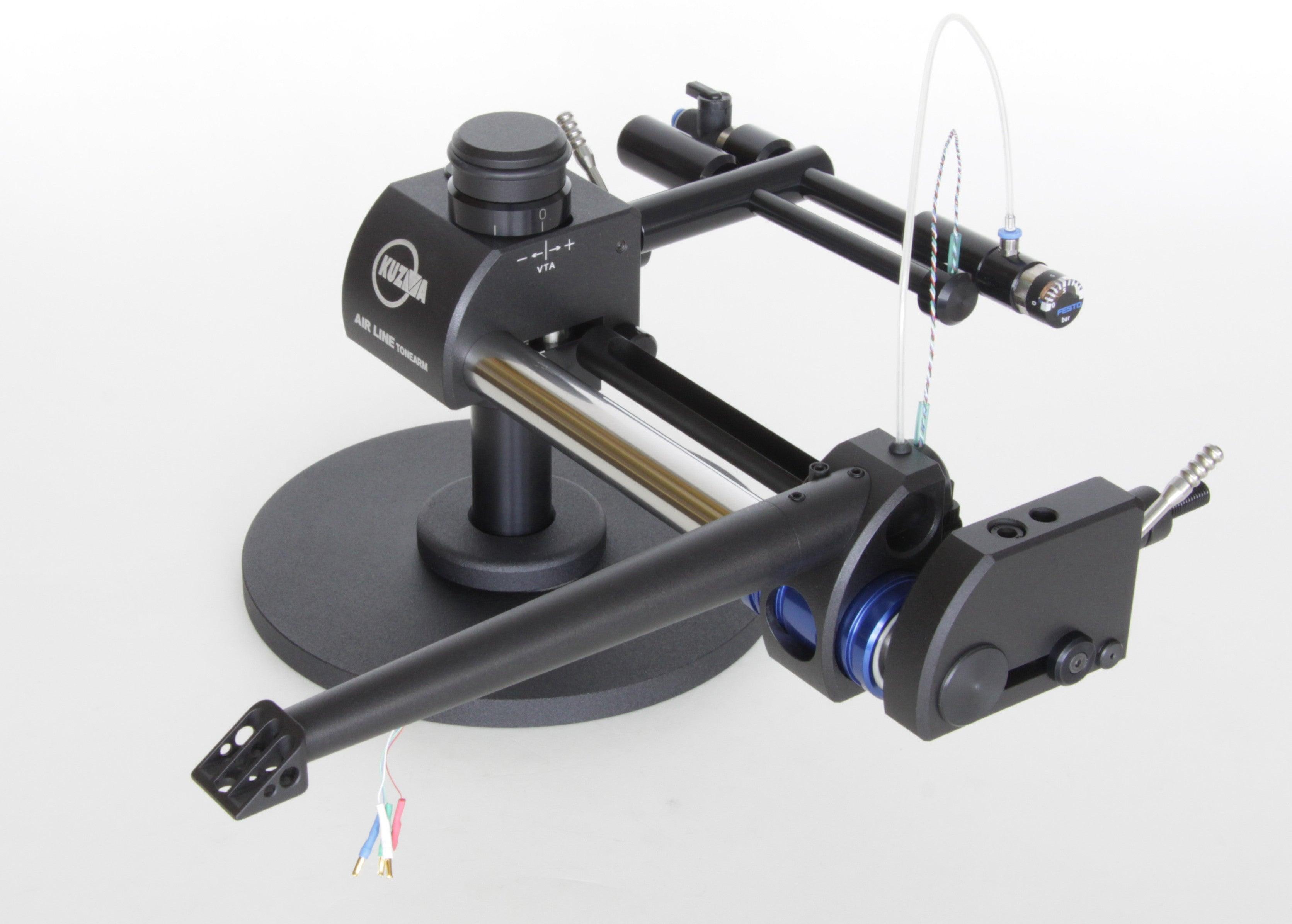

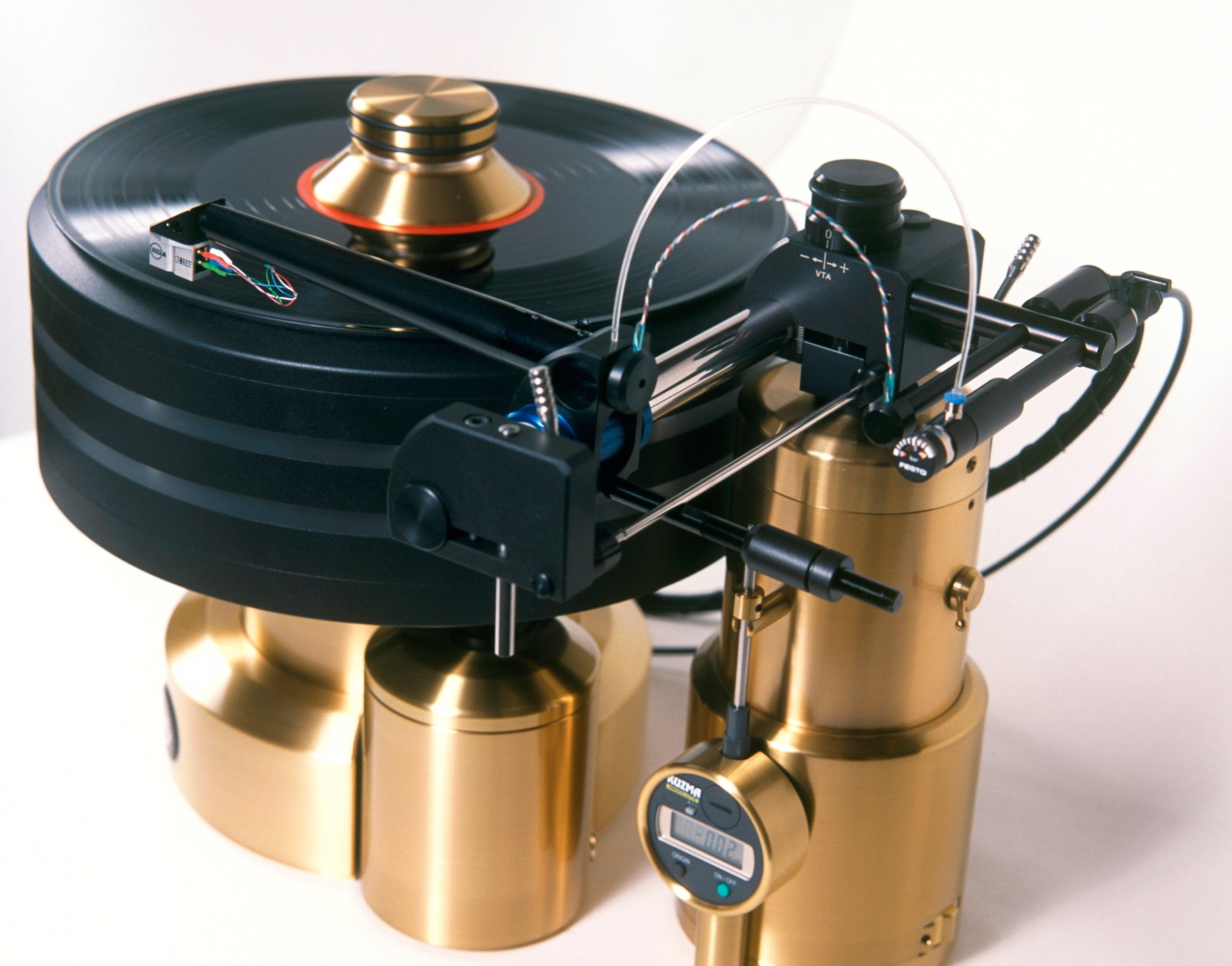

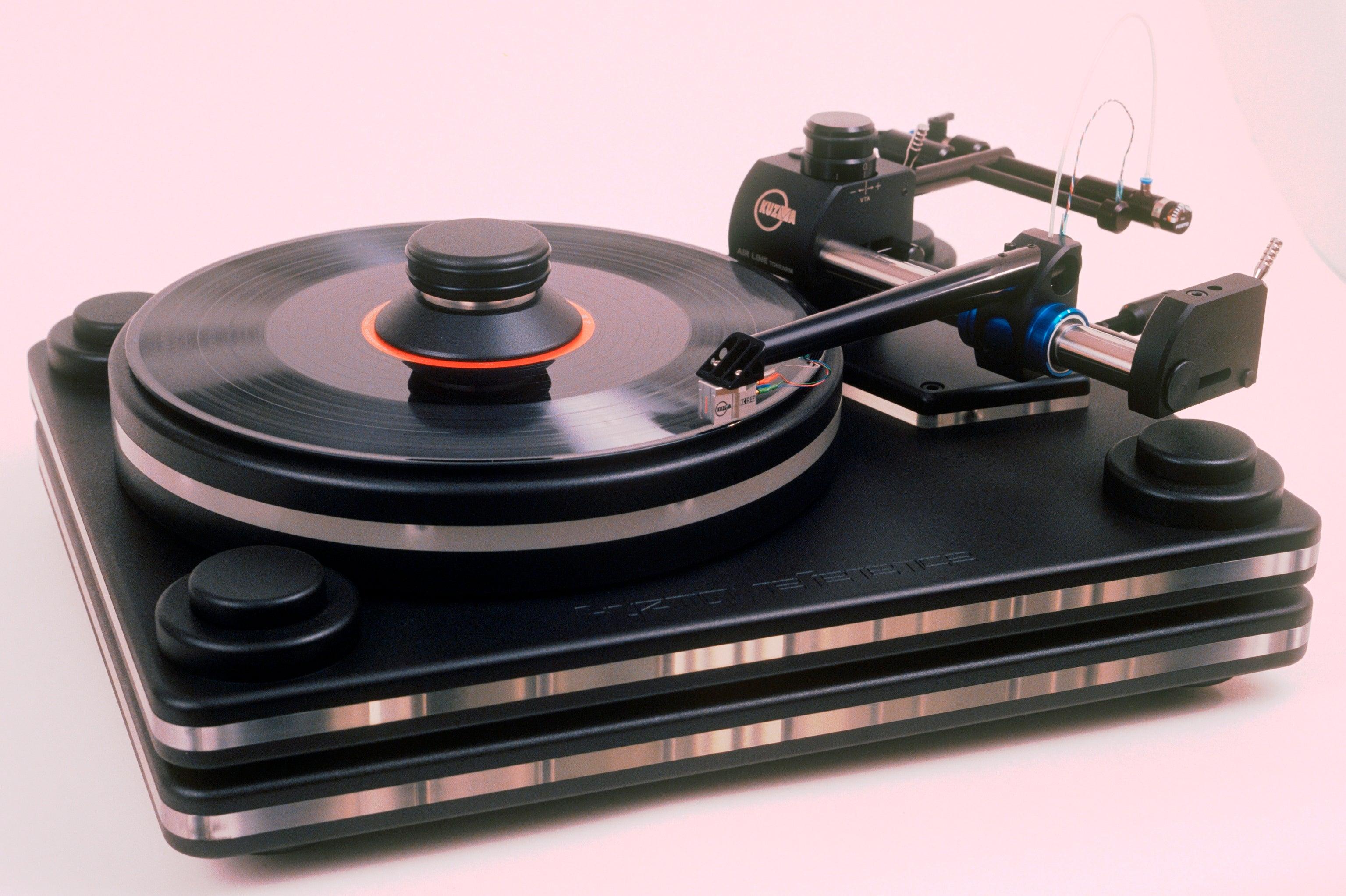

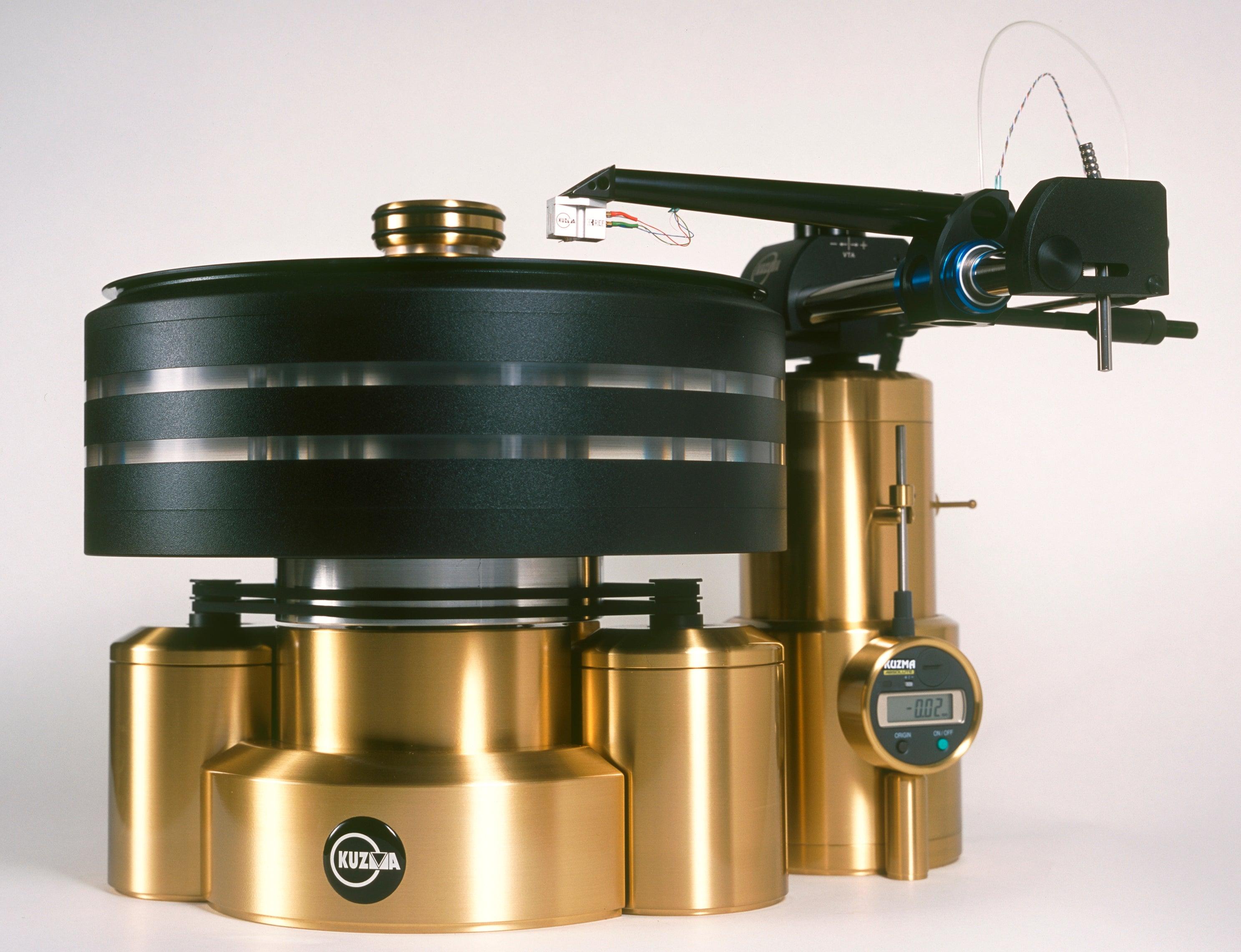

Kuzma Air Line Tonearm

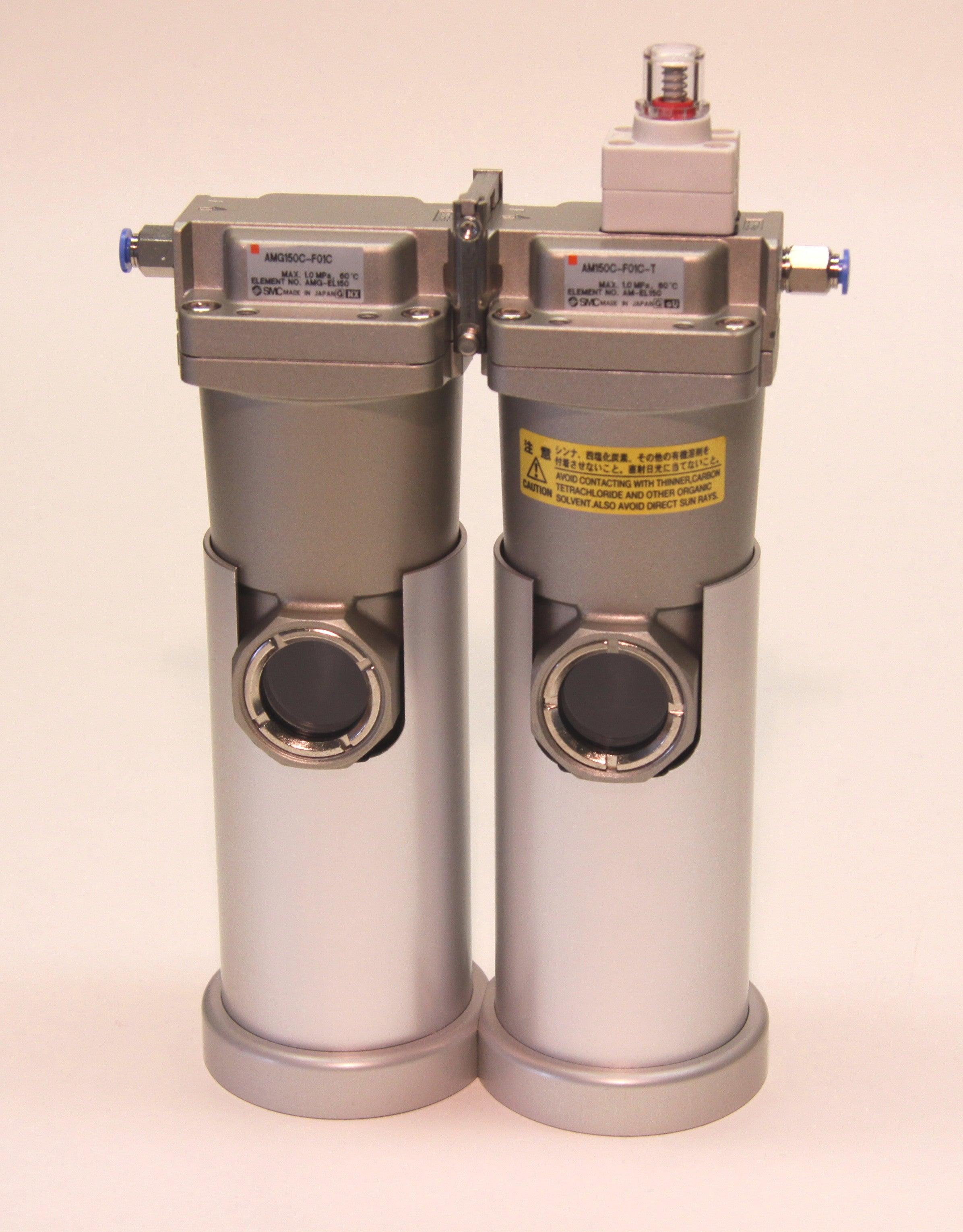

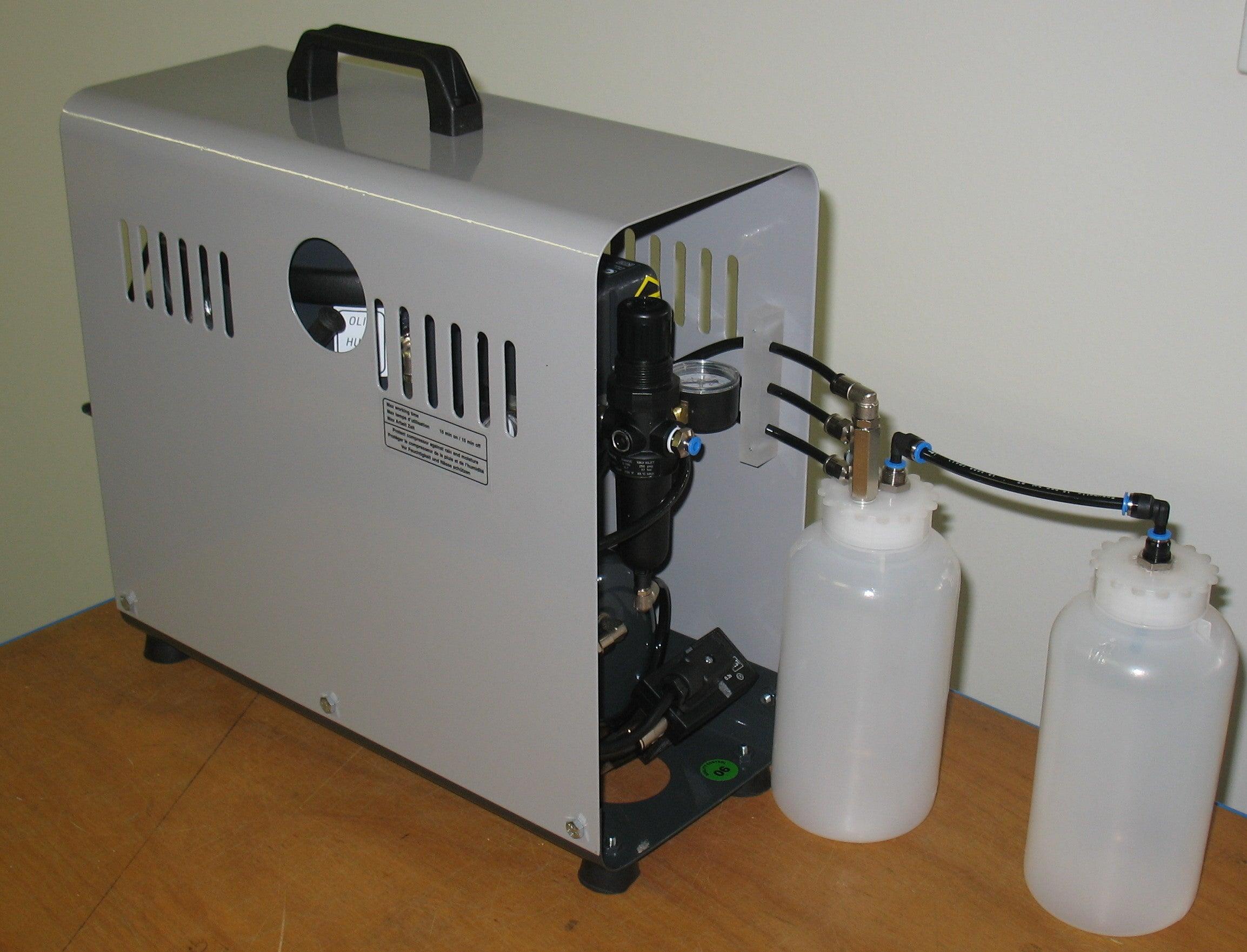

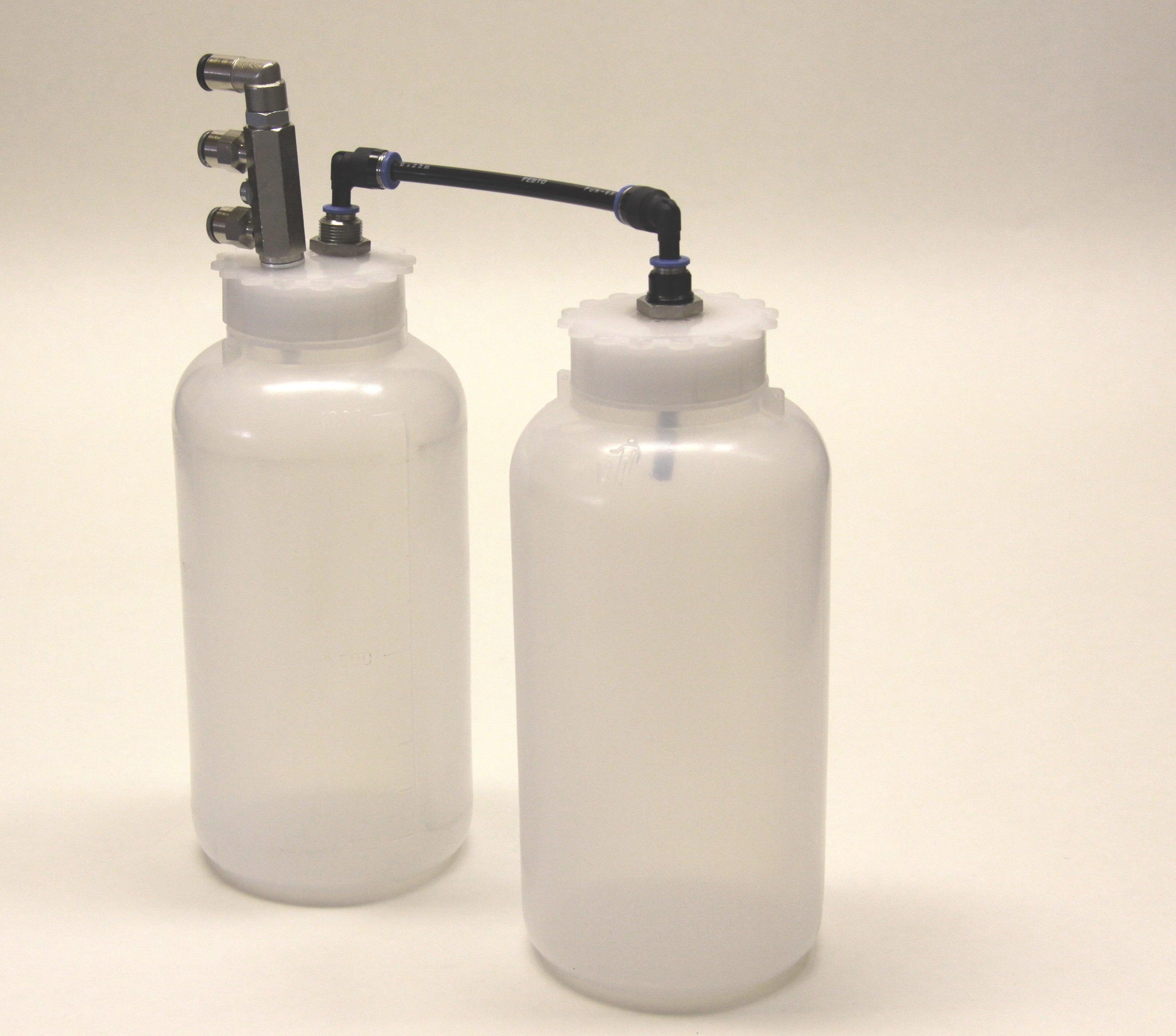

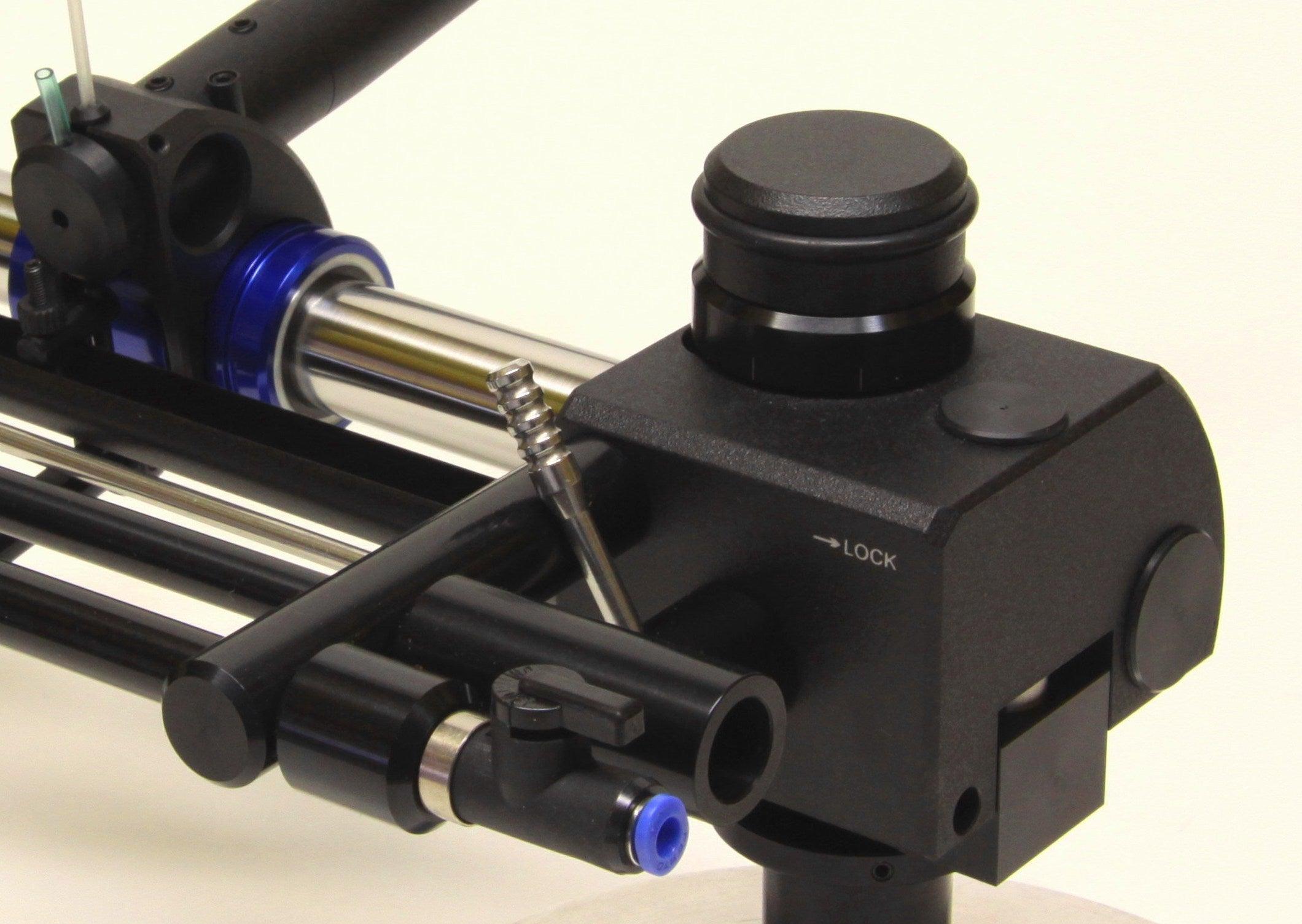

The Kuzma Air Line tonearm uses air-bearing technology for precise and frictionless movement to maintain the cartridge in the same position as the cutting head. It combines experience from conventional tonearms with new research to create a minimally resonating aluminum structure with easy and precise adjustments for VTA and azimuth. The air bearing, similar to those used in precision measuring machines, provides accurate and frictionless movement with a 5-micron gap and a bearing that can withstand over 10kg. This results in zero vibrations, zero unwanted movements, and only musical information collected from the grooves. Air is supplied by quiet and efficient compressors, with the air-drying unit located outside the listening room. Originated in 2003. For more information and drawings, see our website and FAQ and Manual folder.
Call to inquire about prices and other Kuzma Air Line Model variations
Airline complete â SE
Airline complete â CarCl
Airline complete â KS
Specifications
Technical Data
Effective length- 184 mm
Arm mount distance- 212 mm
Distance from spindle to horizontal bearing-Â

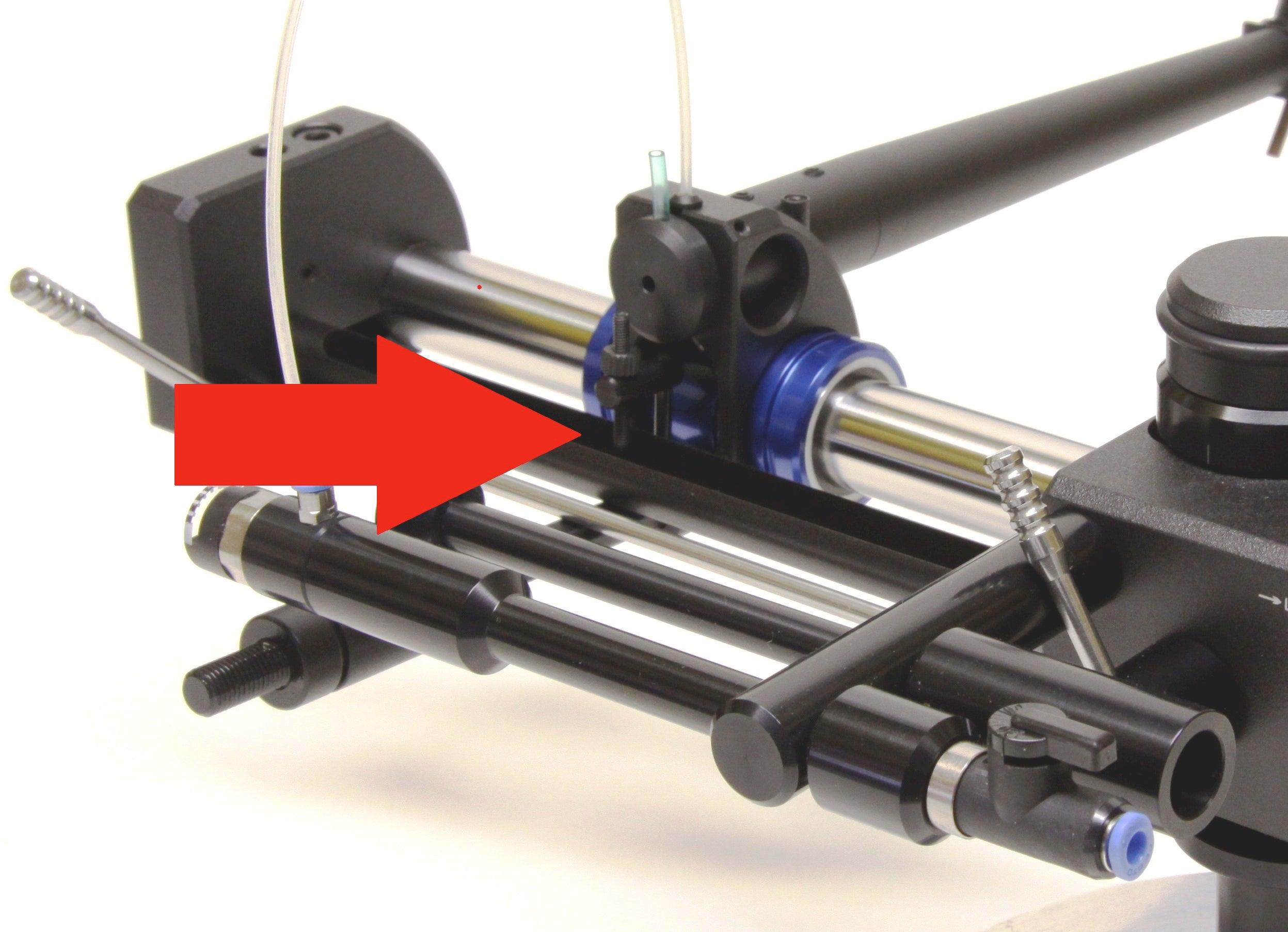

Bearing type- Precise high-pressure air bearing
Effective mass- Vert.Â
Total mass- 2270 gr
Offset angle- 0*
VTA adjustment- Precise VTA tower
Azimuth adjustment- Precise worm drive
Tube- Conical
Bias-Â
Max. standard cartridge weight- 25 gr
Optional light and heavy counterweight- Yes

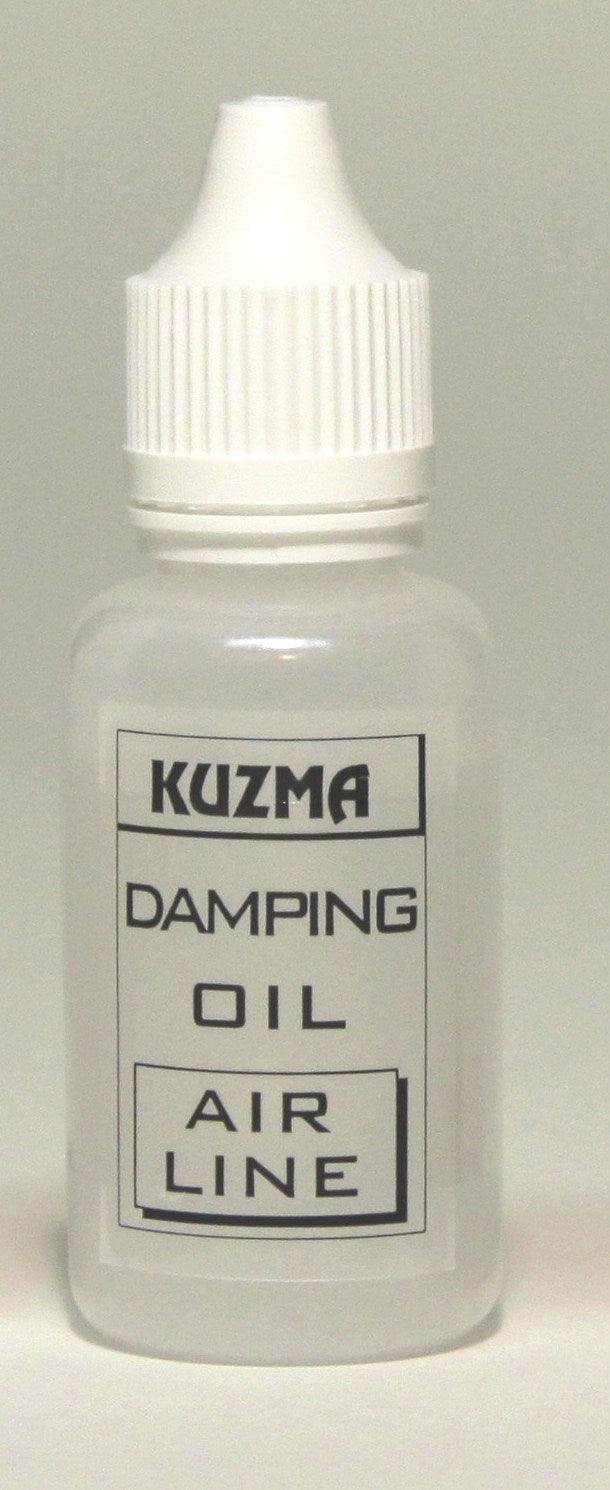

Damping- Yes
Detachable headshell- No

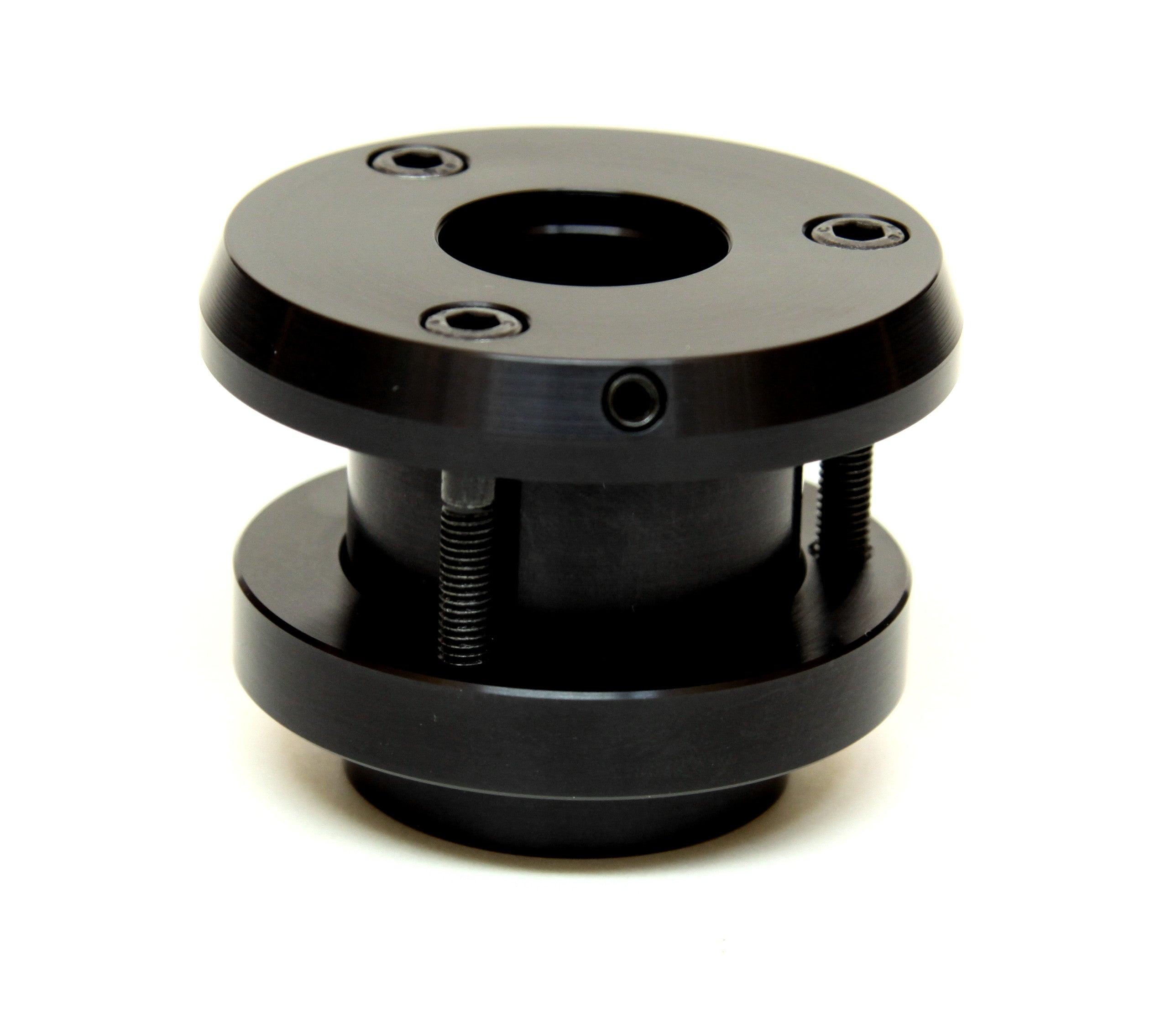

Arm mount- Kuzma
Standard wiring- Silver, RCA Bullet (46pF)
Accessories- Protractors, Allen keys, cartridge mounting screws

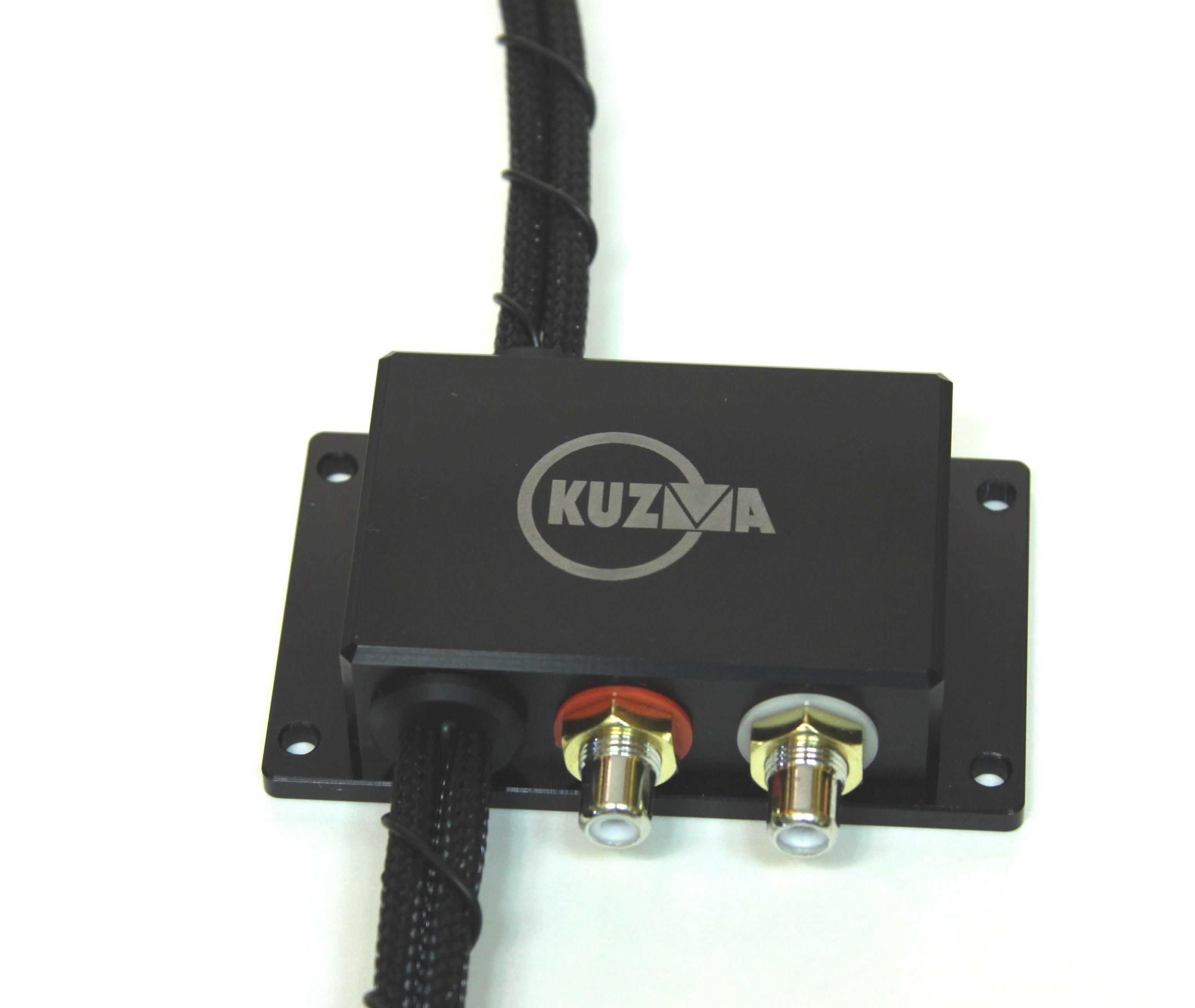

Options- XLR, 5pin, RCA box, purchase without compressor (XL AIR compressor-model 50D can supply air for Air Line)
