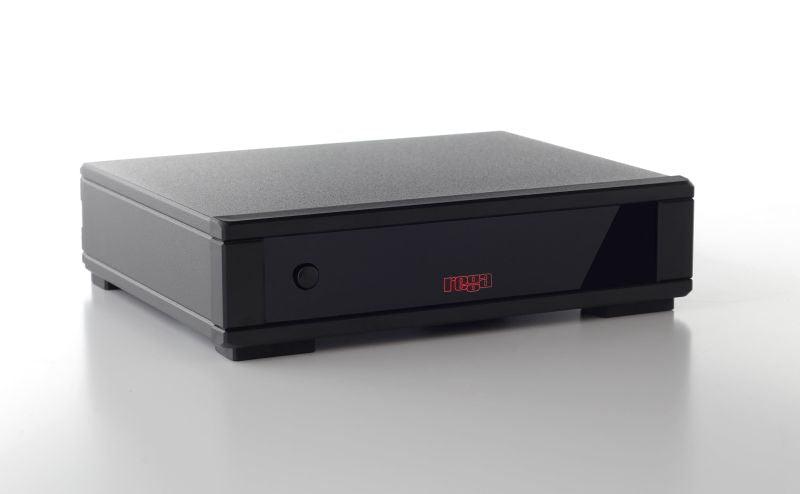

The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same updated aluminum case as the Rega Neo and Fono MC amplifier, giving it a design that offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The RIAA equalization has been split into two stages to minimize interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.
TECHNICAL SPECIFICATIONS
Input Sensitivity1.7 mV for 200 mV Output
Input Loading47 kΩ in parallel with 100 pF
Maximum Input Level60 mV at 1 kHz
Gain41.4 dB at 1 kHz
Output Impedance200 Ω
Recommended Minimum Output Load Resistance5 kΩ
Frequency response (50KΩ output load)15 Hz (-3 dB) to 100 kHz (-0.2 dB)
RIAA Accuracy (50 kΩ Output Load)Better than ±0.2 dB 100 Hz to 100 kHz
Power Requirements24 V AC at 80 mA maximum
- For full technical specifications, download FONO MM MK5 USER MANUAL below.
