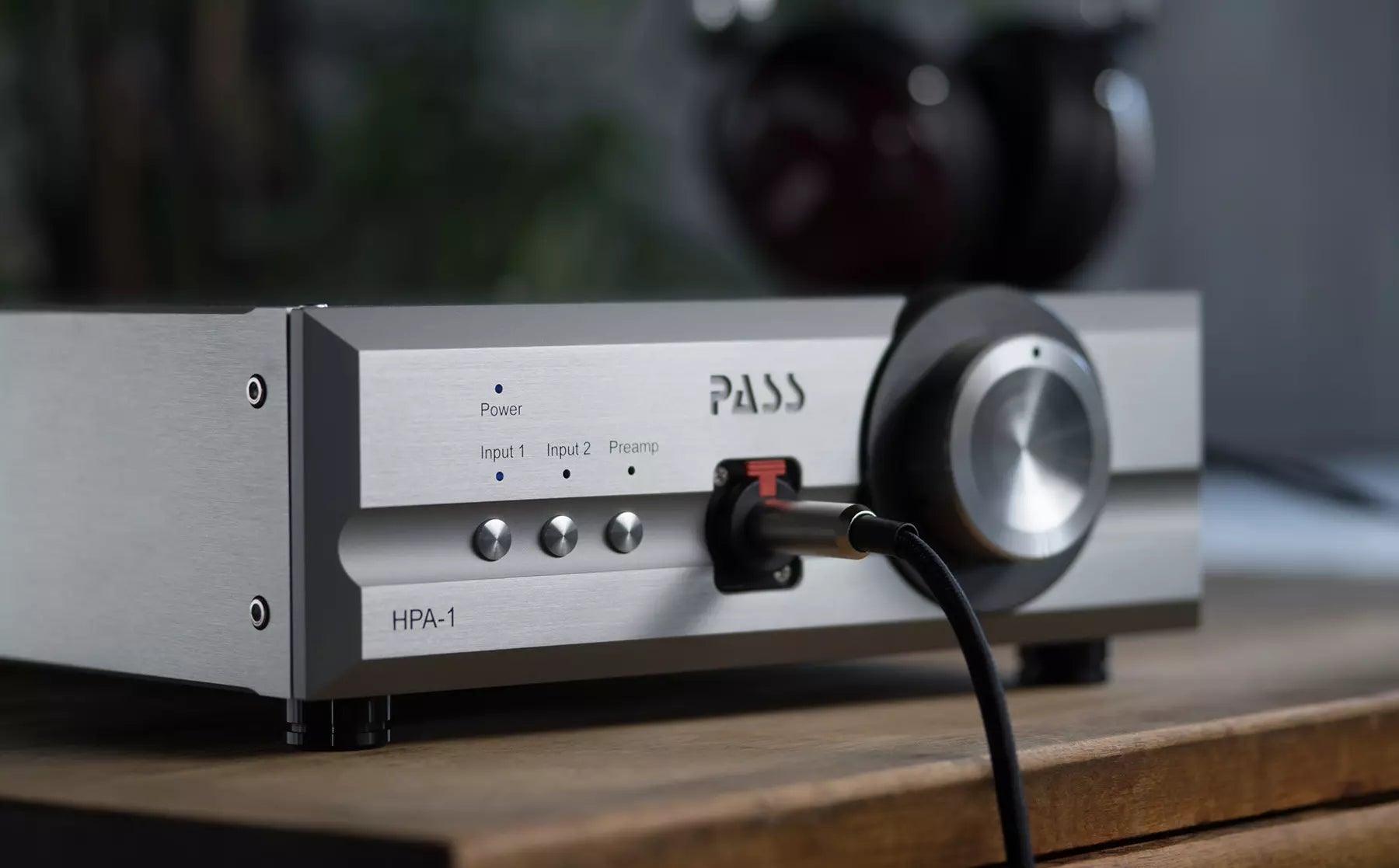

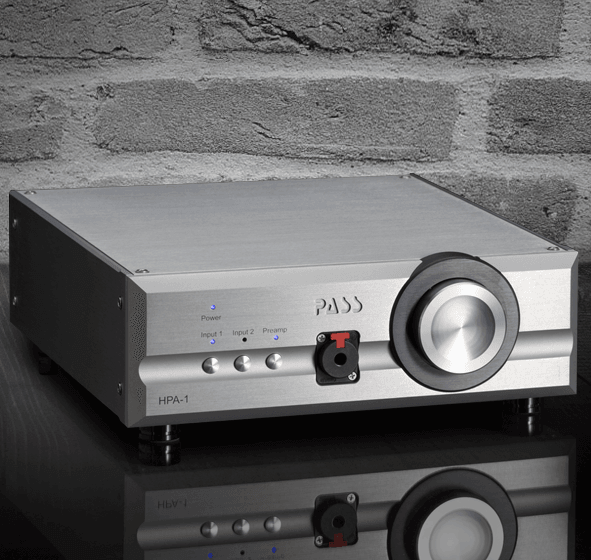

Pass Labs HPA-1 High-End Headphone Amplifier - Audiophile-Grade Sound for Home Studio & Professional Music Listening

The Pass Labs HPA-1 is a Class A headphone amp that was designed to amplify headphones with impedances of 15 ohms to 600 ohms.

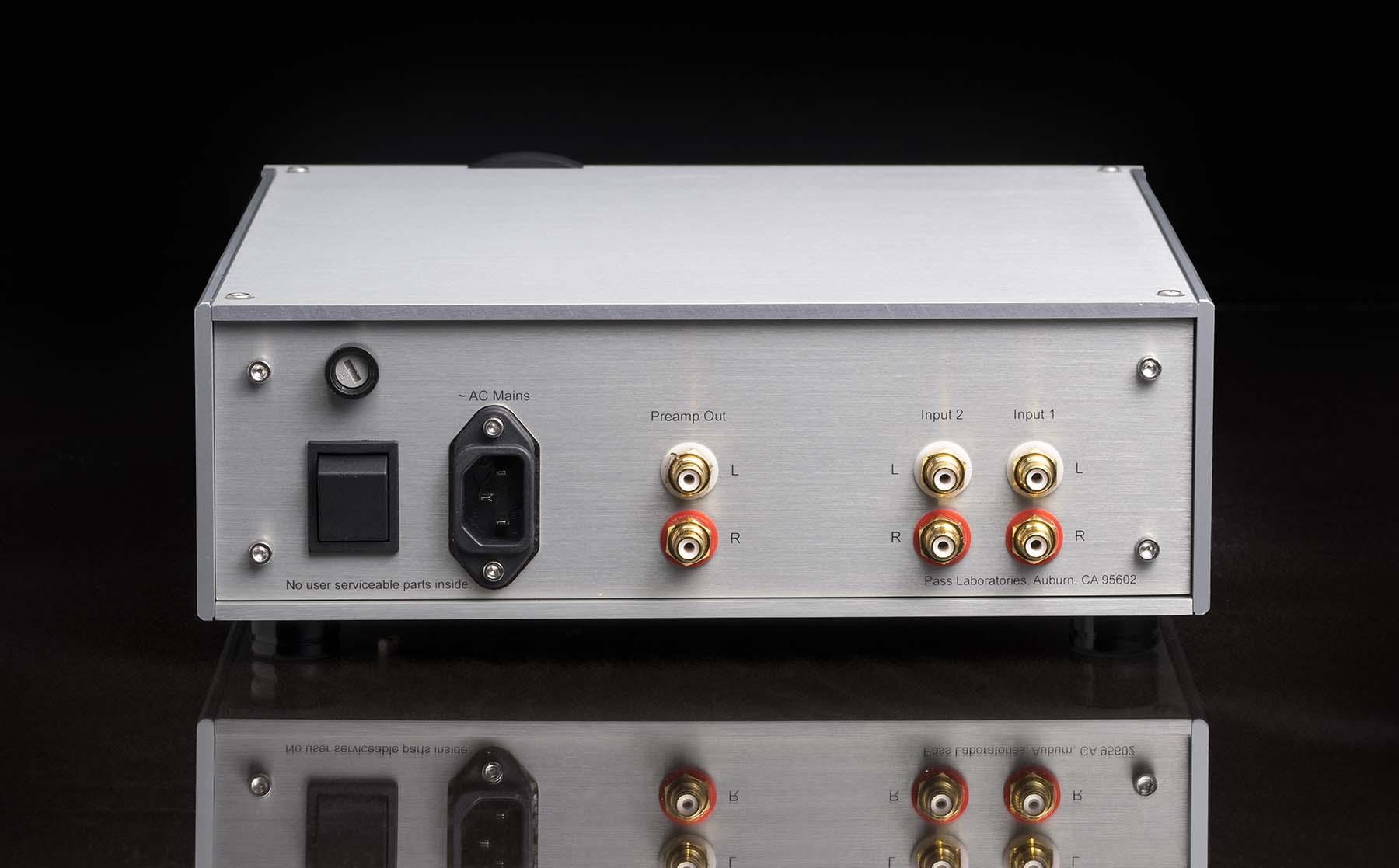

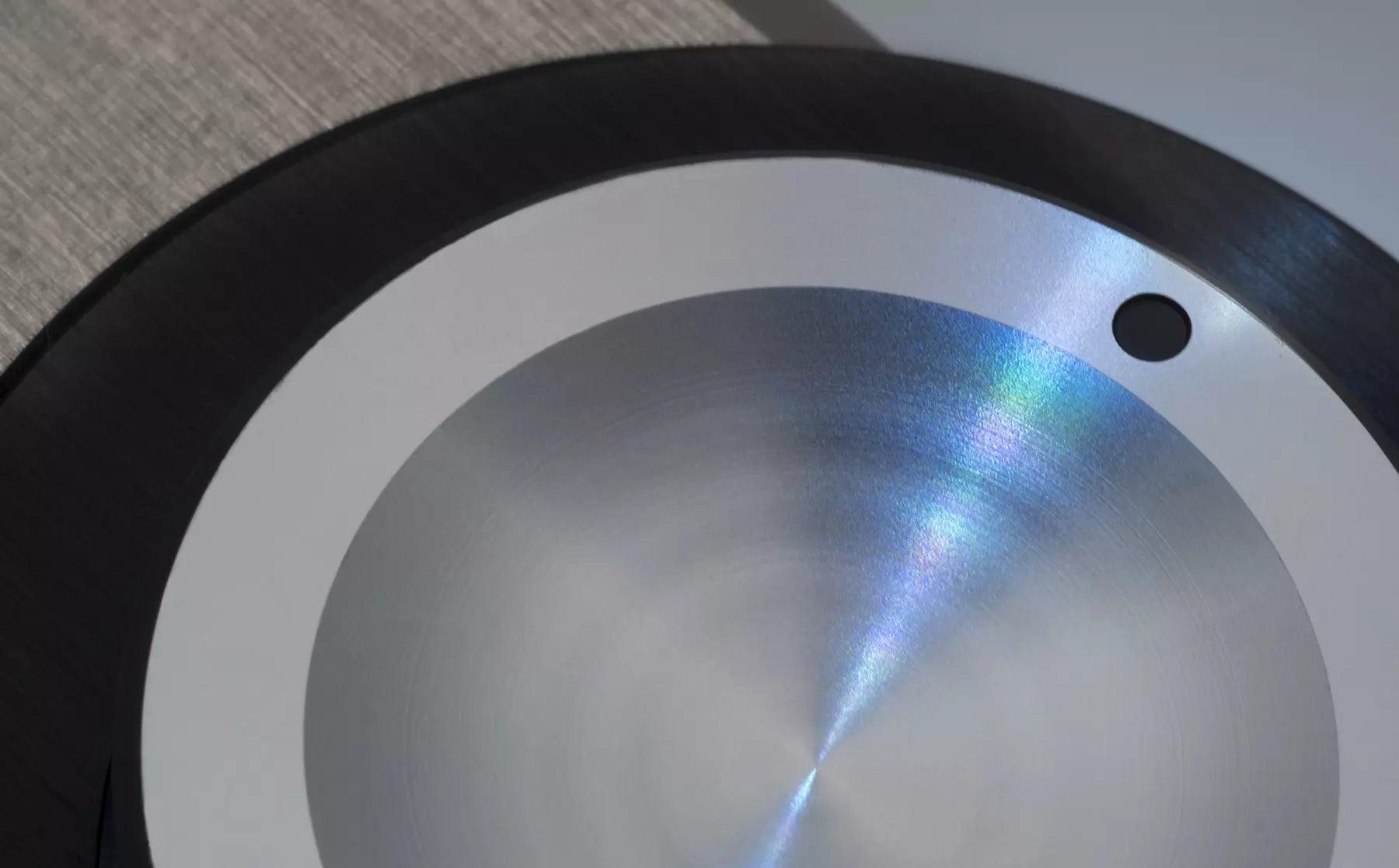

The HPA-1 delivers full-range dynamics and can drive any headphones. It's designed as a Class-A power amp, with a low-noise, shielded toroidal power transformer and discrete low-noise regulated power supply for the audio circuits. Low-feedback, wide-bandwidth J-Fet input, and Class A-biased MOSFET output stages offer superior audio. It easily drives headphones from 15 to 600 ohms and boasts a rotary knob volume control, plus input and preamp output jacks. Its sturdy brushed aluminum casework adds to its appeal.



Specifications
Gain (dB) - 8 dB
Frequency Response 10 Hz-100k - 1dB
Output Power into 20 ohms - 3500 mW
THD + Noise - <0.005 at 1V out
Out Power into 300 ohms - 200 mW
Input Impedance - 50k ohm
Output Impedance - <2 ohms
Power Consumption (Watts) - 23
Unit Dimension (W x D x H) (In.). -11 x 13.5 x 4
Unit Weight (LBS) - 14



Main Features

• Works with headphones with impedances of 15 ohms to 600 ohms.
• Designed as a power amplifier rather than a typical headphone amplifier to be able to drive low-impedance planar headphones.
• Low feedback wide bandwidth discreet design.
• Class A direct coupled Mosfet output stage.
• Custom low noise Toroidal power transformer with a Faraday shield.
• Discreet regulated power supply for audio circuits.
