⢠Fully manufactured and terminated in the USA
The tonearm lead is one of an analog system's most critical audio cables. As such, it demands a purpose-built, low-capacitance conduit to maximize the authentic and natural musical reproduction that LPs offer.Â

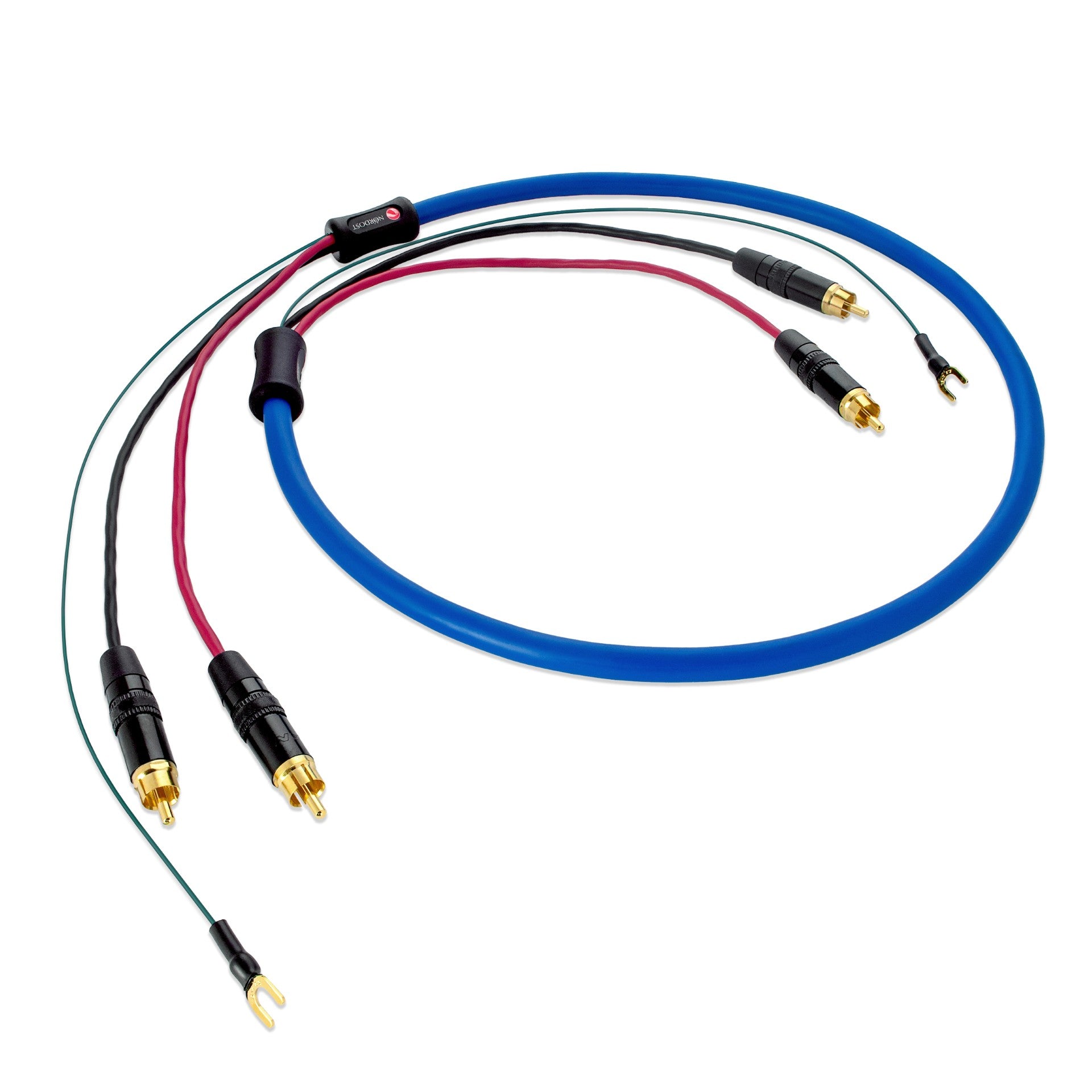

The Frey 2 Tonearm Cable + is virtually noiseless, with rapid transmission speed and the highest bandwidth capabilities, thanks to its twisted pair design, individualized shielding, and Nordostâs proprietary Dual Mono-Filament technology. It also employs a separately shielded, silver-plated bond wire wrapped in Micro Mono-Filament, to minimize noise from the line. However, the most exciting aspect of this cable design is its revolutionary grounding solution. Nordost has introduced detachable ground whips, complete with Micro Mono-Filament technology, that further eliminate any noise that could be introduced during signal transfer, regardless of the unique construction of the components found in each individual sound system.
Â
⢠Fluorinated Ethylene Propylene (FEP) insulation
⢠Mechanically tuned lay and lengths
⢠4 x 26 AWG Silver plated 99.99999% OFC Solid Core
Conductors: 2 Twisted pairs individually shielded, Dual Mono-
Filament design
⢠24 AWG silver-plated, stranded OFC bond wire w/ Micro Mono-
Filament design
⢠24 AWG silver-plated, stranded OFC removable ground whips
w/Micro Mono-Filament design
⢠Capacitance: 11.77pF/ft (38.5pF/m)
⢠Velocity of Propagation: 76%
⢠Overall Shield Coverage: 98%
⢠Tonearm cables are available with straight MoonGloâ DIN,
RCA, or XLR connectors. Standard model numbers reflect a
straight MoonGloâ DIN to RCA.
ⶠAdd $60.00 for 90° MoonGlo® DIN connector â Must
specify pin orientation (A,B,C, or D). See chart on page 4.
ⶠAdd $190.00 for an additional 1/2 meter
