The BW-3 is designed as a high bandwidth subwoofer with the objective of reproducing optimal dynamics and precision. This is reflected in the frequency range of the driver reaching up to 800 Hz in bypass mode, in contrast to traditional subwoofers, which are typically limited to 120 Hz.
Powerful and compact design
The internal amplifier is Lyngdorf Audioâs Class-D design based on more than 15 years of experience in designing audiophile Class-D amplifiers. With an output of 400 watts, it can deliver ample power to control the powerful 8â driver â even at high levels. The BW-3 is equipped with a long-throw driver mounted in an extremely compact enclosure. For the driver to work in such a compact cabinet, with only 7 l of internal volume, a custom unit was designed. The 8â woofer features a massive âmotor,â which has an extremely fast response and high efficiency.
Flexibility in installation
The woofer fits into all types of setups, as the amplifier module holds the traditional signal controls as well as a bypass switch for easy and direct connection to Lyngdorf Audio amplifier outputs or to other audio products, which provides full control of the sub-out connection.
The BW-3 is delivered without feet mounted, as the compact cabinet design allows for several ways to integrate the speaker with home décor. With cabinet dimensions reduced to a minimum, the BW-3 can be positioned standing upright or on its side in order to fit into the available space. This construction makes it the perfect match for any setup, as a subwoofer for other speakers in a stereo or home cinema system.
Specifications
Description:Â Active high bandwidth subwoofer
Driver:Â 8â long throw driver, Ã 38mm / 1 1/2 in voice coil, cone material: aluminum
Amplifier:Â 400 W RMS, Class-D type
Enclosure:Â Closed cabinet type, full MDF construction, volume: 7.25 liters
Frequency response:Â 27 to 200 Hz (using line in input), 27 to 800 Hz (using bypass input)
Maximum SPL:Â 99dB RMS THX method: 40-80 Hz
Controls: Bypass switch, phase control (0 to -180°), level control, x-over frequency (60 to 200Hz)
Connections:Â RCA / analog mono input
Input sensitivity:Â 2 V
Standby power consumption:Â <Â 0.5W
Dimensions (W x H x D):Â 31.5 x 23 x 17.2 cm, 12.4 x 9.1 x 6.8 in
Weight:Â 8.9 kg / 19.6 lb

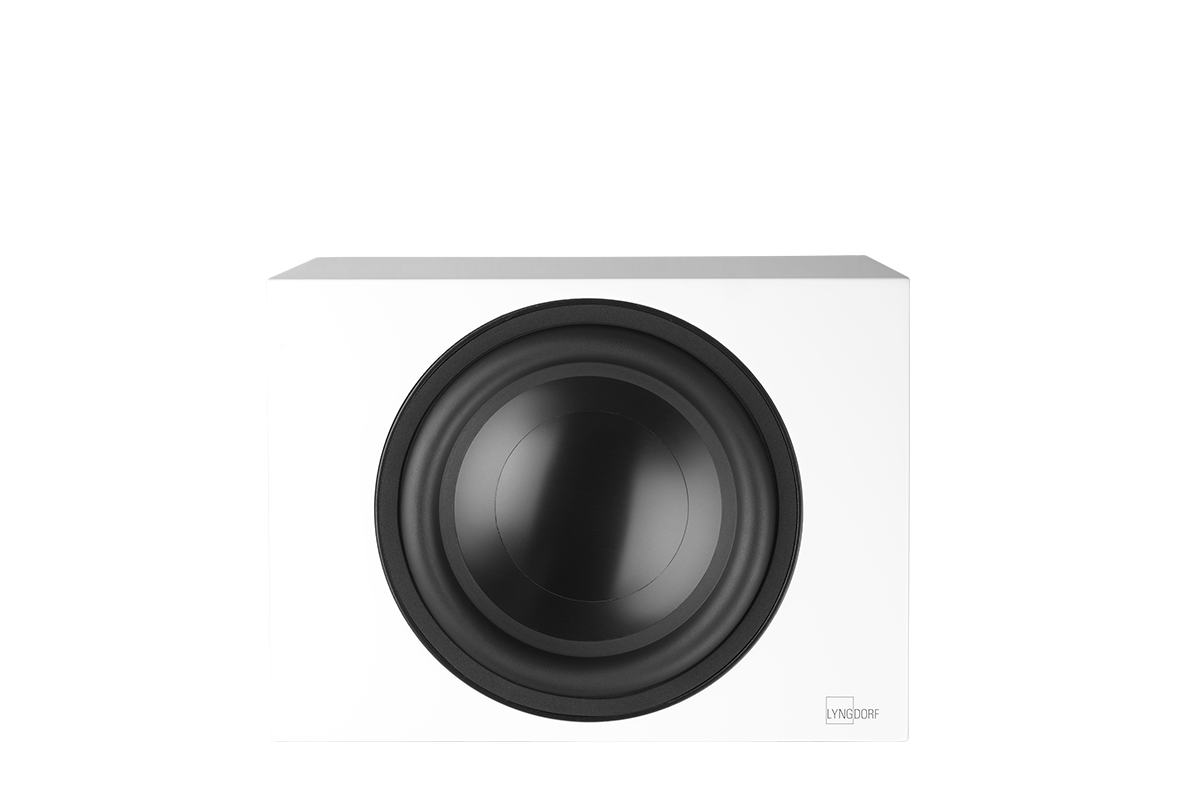

Standard finishes:Â Matte black with black fabric cover, matte white with grey fabric cover
Optional fabric covers:Â Black, grey, petrol blue, dusty green, red
