EASY TO POSITION
The driver materials, crossover design and geometry applied in the OBERON C series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.
LOW LATENCY
The SOUND HUB COMPACT transmits to OBERON C speakers using a proprietary 30 bit wireless protocol derived from the acclaimed DALI SOUND HUB. Audio transmission latency from input to speaker is typically less than 15 mS, and inter-speaker timing is accurate to the single sample period of the broadcast audio data.
PATENTED SMC
The iron pole piece of the OBERON C woofer magnet is crowned by the DALI patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.
ACTIVE SPEAKER
The OBERON C power amplification comprises two 50 Watt peak, closed-loop Class-D power amplifiers chosen specifically for their sound quality and dynamic ability. One amplifier powers the high frequency driver, one powers the bass/mid driver (or twin drivers in the case of the OBERON 7 C).
PRODUCT DETAILS

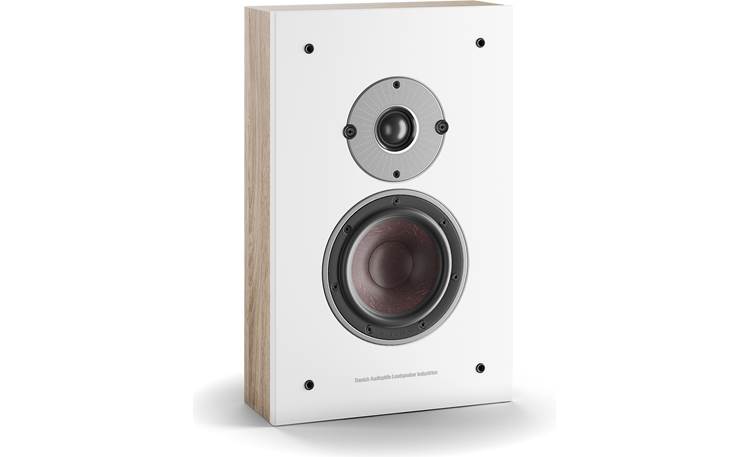

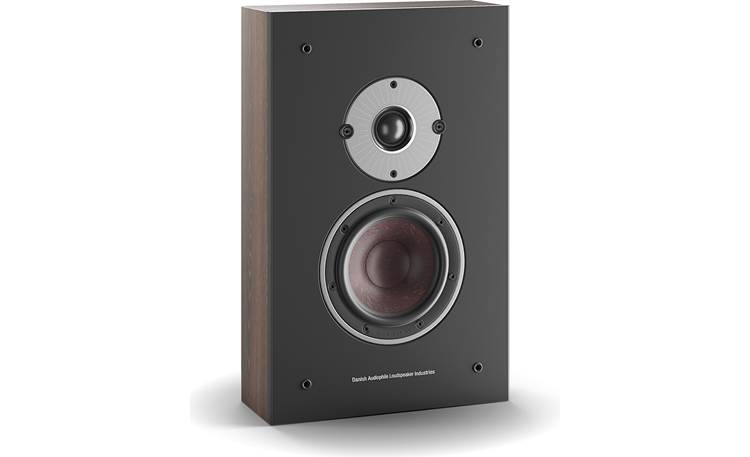

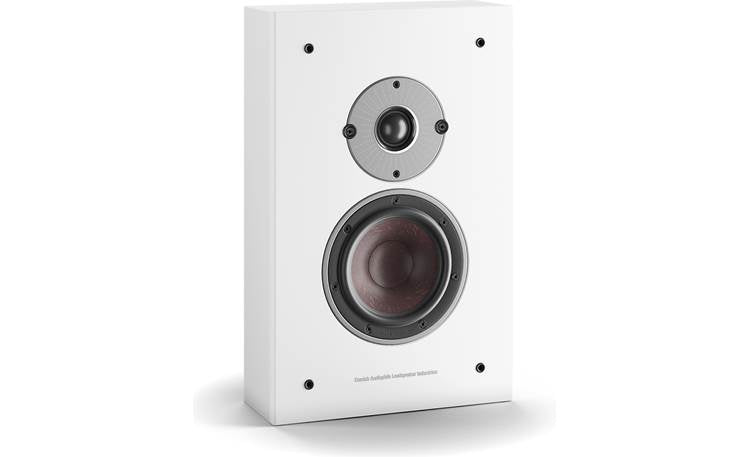

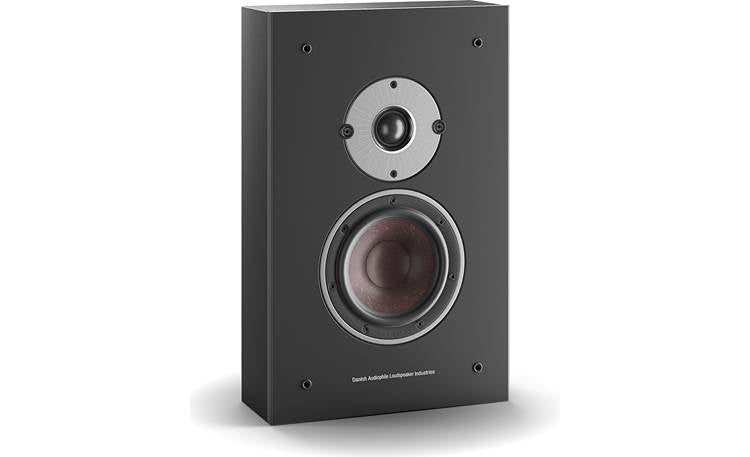

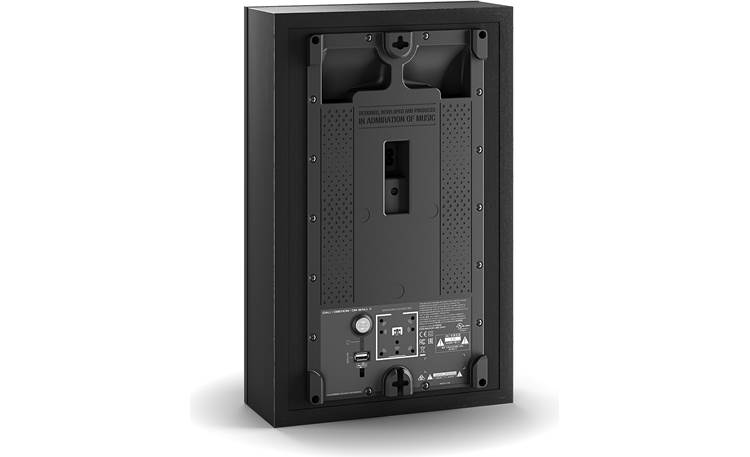

The OBERON ON-WALL C was designed with TV audio very much in mind and despite its compact dimensions, the combination of DALI technologies employed endow it with performance comparable to significantly larger speakers. The OBERON ON-WALL C is designed specifically for direct wall mounting via rear panel keyhole slots. Portrait and landscape orientations are both accommodated.
The slim and discreet OBERON ON-WALL C comprises a compact, low profile, rear reflex loaded cabinet fitted with a 5.25” DALI wood fibre cone driver featuring SMC, and a DALI ultra lightweight 29mm soft dome tweeter.
The compactness of the OBERON ON-WALL C makes it easy to integrate into any room. To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied in the OBERON ON-WALL C have been carefully selected. The same principles have been applied in the design of the crossover.
As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.
Technical specifications
SOUND HUB COMPACT
Wired inputs 2 × Optical (TOSLINK™)
1 × Analogue Stereo (RCA)
1 × HDMI (ARC)
Input impedance RCA (Ohm) 7.2 k
Max input (RCA) 3.0 Vp
Maximum Optical Digital Input Resolution (Bits/kHz) 24 / 192
Wired outputs 1 × SUB OUT (RCA with detection)
SUB output max voltage (V) 1.7 V RMS
Wireless inputs BT 5.0, AAC, aptX, aptX HD
Wireless output Full 24 Bit / 96 kHz (Not compressed)
Wireless Audio RF Band (MHz) 5150-5250 MHz and 5725-5875 MHz*
Other connections 1 × IR Sensor input / 1 × USB-A power output (5 V/1.5 A) / Service
Power input 9V DC
Maximum power consumption (W) 2.8 W
Standby power consumption (W) 1.7 W
Networked standby power consumption (W) 1.7 W
Time to enter networked standby < 20 minutes
Dimensions (H × W × D) mm 30 × 212 × 132 mm (1.2 × 8.4 × 5.2 in)
Included accessories Quick start guide, IR remote control,
9V DC power supply (universal 100-240 VAC), IR sensor
Weight (kg/lb) 0.5 kg
Accessories Rubber feet, manual, power supply unit, remote control, IR receiver
* Excluding Japan
OBERON ON-WALL C
Frequency range (±3 dB) (Hz)51 – 26,000
Maximum SPL (dB) 107
Crossover frequency (Hz) 2700
Crossover principle Full active 24 Bit DSP
High Frequency driver 1 × 29 mm soft dome tweeter
Low frequency driver 1 × 5.25"
Enclosure type Bass reflex (Rear ported)
Reflex tuning frequency (Hz) 52
Amplifier output power 2 × 50 W
Amplifier type Class-D
Wireless input Full 24 Bit / 96 kHz (not compressed)
Wireless Audio RF Band (MHz) 5150-5250 MHz and 5725-5875 MHz*
Input Mains Universal mains 100-240 VAC
Maximum power consumption (W) 62
Standby power consumption (W) 1
Networked standby
power consumption (W) **1.25
Time to enter networked standby < 20 minutes
Recommended placement Wall
Dimensions (H × W × D) mm 385 × 245 × 120
Weight (kg/lb) 4.9 kg / 10 lb
Included accessories Quick start guide, mains cable,
front grille, rubber feet,
silicone bumpers, cable clips
* Excluding Japan
** Please note that the speaker will remain in networked standby if the SOUND HUB / SOUND HUB COMPACT is powered off
