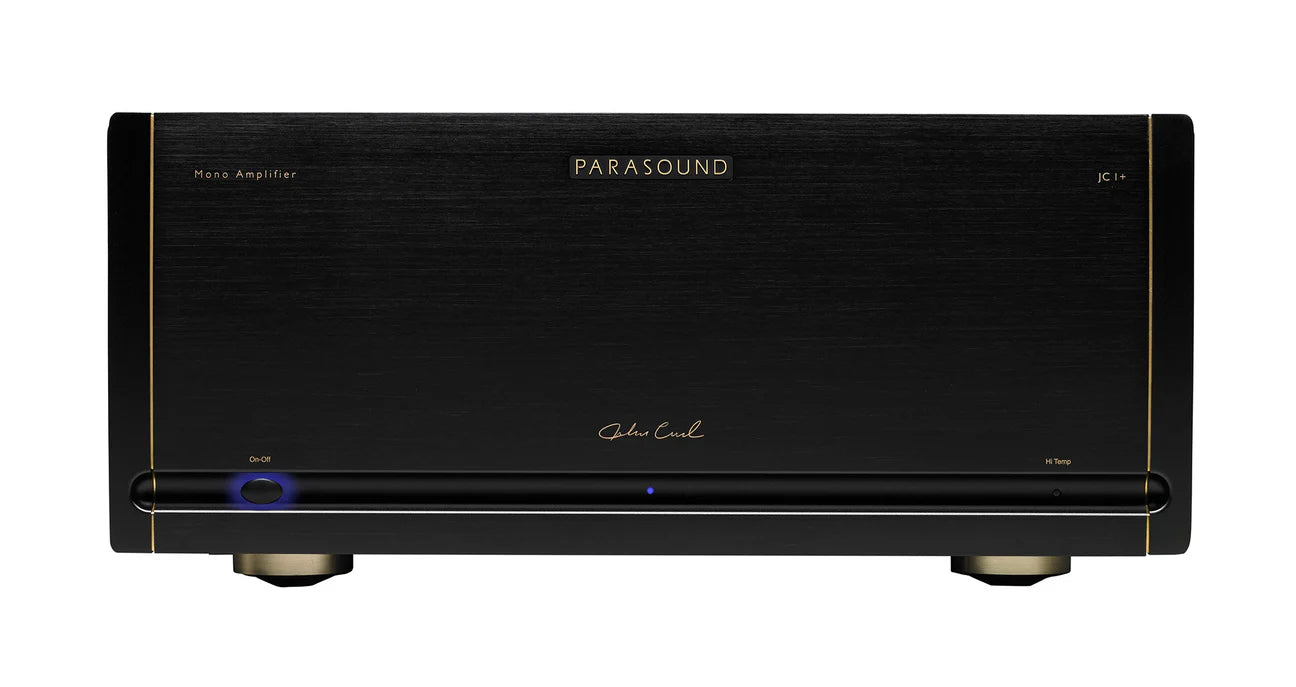

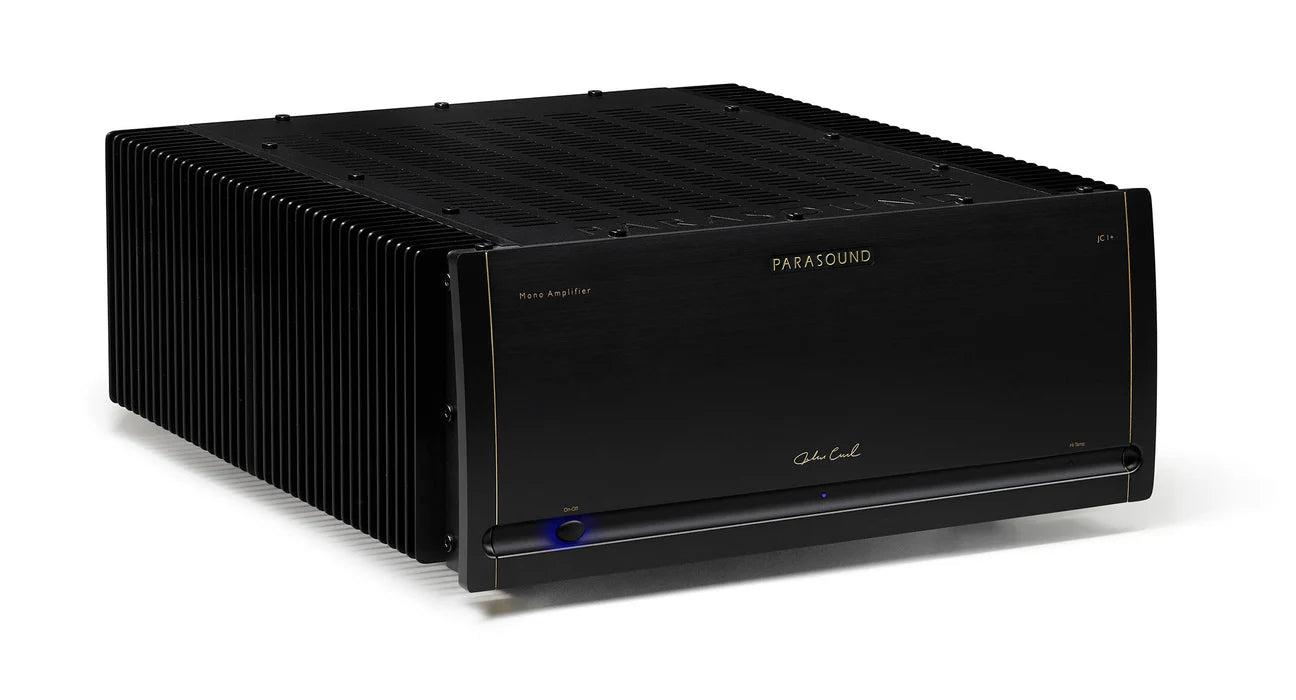

The Ultimate High-Performance Mono Power Amplifier
The JC1+ represents the pinnacle of Parasound's engineering, delivering exceptional performance for the finest loudspeakers and surpassing even the most expensive competitors. This masterpiece was developed by Parasoundâs renowned design team, led by legendary audio designer John Curlâthe "JC" behind critically acclaimed models like the JC1, JC2BP, JC3+, and JC5.
Powerful and Precise Performance
The JC1+ is the result of five years of intensive design and testing, achieving advancements in every respect over the iconic JC1. With power ratings of 450 watts RMS into 8 ohms, 850 watts RMS into 4 ohms, and 1,300 watts RMS into 2 ohms, alongside a peak current capability of 180 amperes, the JC1+ brings your speakers to life. The first 25 watts are delivered in pure Class A, ensuring an exceptional listening experience.
Even More Impressive Than Its Predecessor

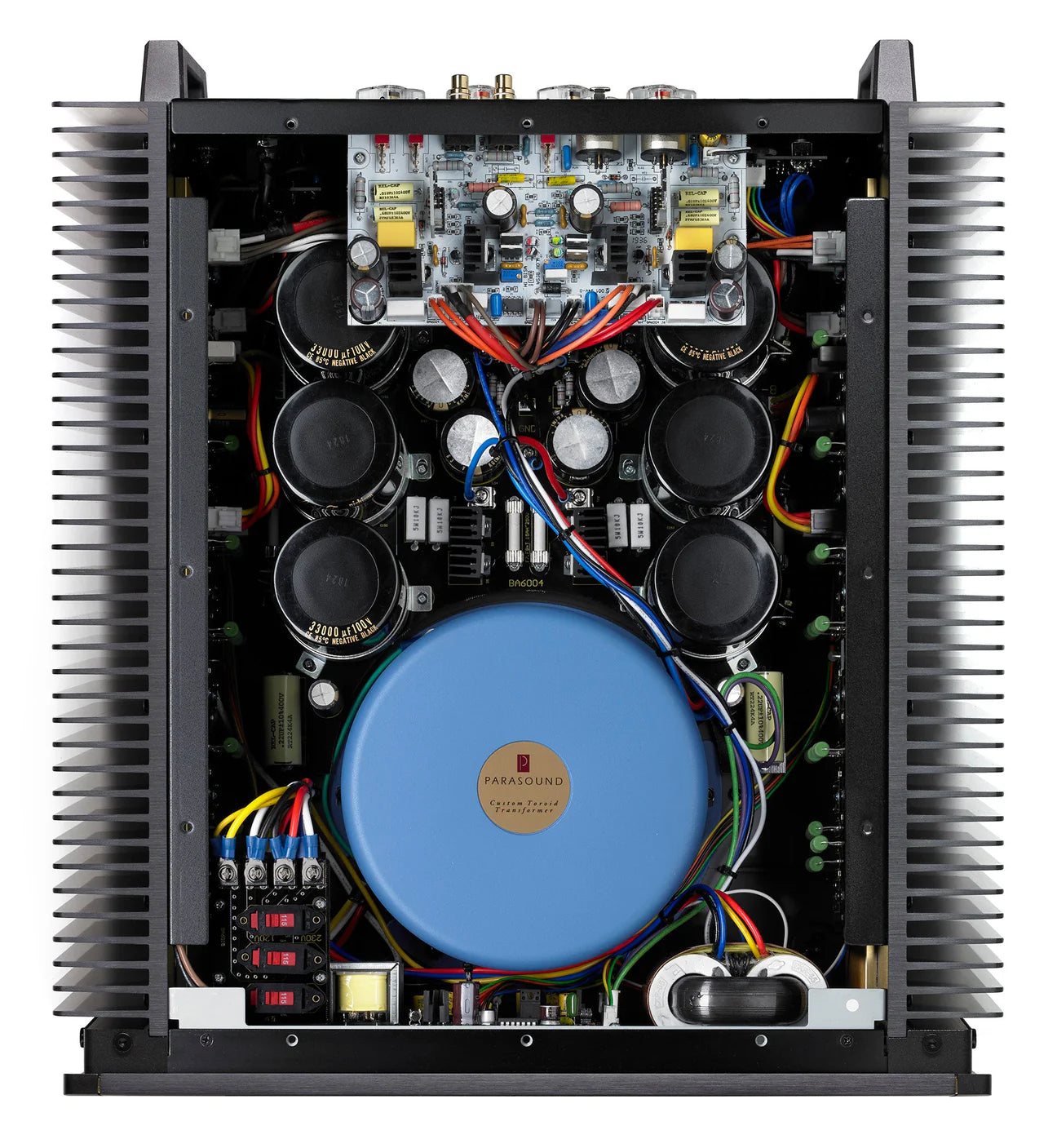

Building upon the success of the original JC1, the JC1+ is 30% heavier, with a 2.4kVA main power transformer thatâs 26% larger. This increased capacity, alongside a 50% greater main power supply filter, provides effortless handling of demanding music. The JC1+ boasts 33% more Sanken high voltage/high current output transistors, producing a commanding, dynamic sound that immerses you in the music.
Sonic Refinement Beyond Measurement
While technical specifications show the JC1+'s power, its sonic refinement is something that must be experienced. This level of detail, clarity, and emotional resonance is instantly recognizable to the discerning listener.
Exclusive Technology for Superior Sound
The JC1+ incorporates Bybee Music Rails⢠to eliminate power supply noise, resulting in sound that is remarkably authentic to the source. Its independent ± 112V input stage power supply keeps the input stage voltage stable, regardless of output demands, avoiding distortion common in most amplifiers. Additionally, a custom R-core transformer filters out noise from the AC power line for pristine sound quality.
Uncompromising Component Quality
Parasound selected only the finest materials for the JC1+. The input/driver circuit board is made from FR408, a material used in supercomputers and aerospace for its superior high-frequency performance. Premium REL capacitors, immune to vibrations, and 24k gold-on-gold internal connectors ensure unmatched signal purity and durability.
Additional Features for Superior Performance
- Fast-start bias circuit for optimal sound within minutes of power-on
- Bias level selector for cooler operation without performance sacrifice
- Two-position gain switch for compatibility with various preamps and speakers
- Staggered turn-on delays for powering multiple units without electrical overload
- Gold-plated Neutrik balanced XLR and Vampire RCA connectors for seamless connections
The JC1+ Story: Engineering Excellence for Audiophiles
The JC1+ isn't just an amplifier; it's a statement of Parasound's commitment to audio excellence. This amplifier delivers an uncompromising audio experience that audiophiles worldwide will appreciate for years to come.
Changes from the JC1 to JC 1+
- 400 -> 450 Watts @ 8â¦
- 800 -> 850 Watts @ 4â¦
- 1200 -> 1300 Watts @ 2â¦
- Filter capacitance: 132,000 -> 198,000 uF
- Transformer capacity: 1.9 -> 2.1kVA
- Output transistors: 18 -> 24 Sanken 60Mz devices
- Peak current: 135 -> 180 amps
- Weight: 64 -> 83 lbs net
- Bybee Music Rails⢠active high frequency noise filters
- John Curl driver stage employs a new cascode circuit design
- FR-408 input circuit board material improves HF signal integrity
- Gain switch to select 29 dB or 23 dB gain
- R-core power transformer for input stage
- Input circuit board is shielded
- Double thickness copper on output/power supply circuit boards
- Gold-plated internal audio signal path connectors
- Custom CHK Infinium speaker binding posts
- Looping Neutrik XLR output for easier bi-amping
- Front panel power indicator LED
- Updated auto turn on circuit with5mm 12V trigger jacks
All Features:
- Circuitry designed by legendary John Curl
- Ultra-high bias Class A/AB operation
- 25 watts of pure Class A power
- Stable with speaker impedance dips below 1â¦
- Bybee Music Rails⢠- active high frequency filters for input stage
- New John Curl driver stage employs a cascode circuit for greater open loop bandwidth & superior linearity
- Gain switch to select 29 dB or 23 dB gain for optimum compatibility with high gain preamps or extremely efficient speakers
- R-core transformer for input stage suppresses noise on power line
- 6 massive 33,000 uF Nichicon Gold Tune filter capacitors for output stage
- 22,400 uF input stage power supply filter capacitors, independent of the main power supply
- Dual CHK Infinium, custom 5-way speaker binding posts for easy bi-wiring
- Neutrik locking XLR balanced input & loop output jacks
- Vampire 24k gold-plated RCA input & loop output jacks
- Direct-coupled signal path, no capacitors or inductors in the audio path
- JFET input stage, MOSFET driver stage
- 24 beta-matched 15 ampere, 230V, 60 MHz bipolar output transistors
- 1 kVA shielded toroid power transformer with premium H18 grade core
- Independent power supplies for input stage, driver stage & output stage
- Full power is rated all the way down to 2Hz for unrestricted low-end bass
- Harris hyper-fast soft-recovery bridge diode rectifiers
- REL & Nichicon Muse capacitors
- DC servo & relay protection circuits
- AC turn-on inrush surge protection with relay bypass
- Automatic turn-on by 12 V trigger or audio sensing
- 4 rack space chassis with rear carry handles
- Rack mount hardware is included
- Available in silver or black
Power Output: 450 x1 watts @ 8Ω, 850 x1 watts @ 4 Ω, 1300 x1 watts @ 2 Ω
Power measurements are with 120VAC:Â 0.15% THD, RMS continuous power,full audio band (20Hz - 20kHz)
Class A Power Output: 25 Watts bias switch set to high, 10 Watts bias switch set to low
Current Capacity:Â 180 amps, peak
Slew Rate:Â > 130 volts per microsecond
Frequency Response: 2Hz-120 kHz +0/-2 dB, 20Hz-20kHz, +0/-0.25 dB
Total Harmonic Distortion (THD): < 0.15 % at full power, < 0.02 % at typical listening levels
IM Distortion:Â < 0.03 %
TIM:Â Unmeasurable
Damping Factor:Â > 1200 at 20 Hz
Input Impedance: Unbalanced: 50 kΩm Balanced: 100 kΩ, (50 kΩ per leg)
S/N Ratio, inputs shorted
- >122 dB, IHF A-weighted, bias set to Low
- >120 dB, IHF A-weighted, bias set to High
- >113 dB, Unweighted, bias set to Low
- >111 dB, Unweighted, bias set to High
Total Gain: 29 dB (Gain switch set to normal), 23 dB (Gain switch set to low)
Input Sensitivity for 28.28V Output into 8Ω (Gain switch set to normal)
- Unbalanced: 1 V
- Balanced: 1 V per leg
DC Trigger Requirements:Â +9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirement:Â 2.5 mV - 10 mV
XLR Pin Identification: 1 = Ground (Shield), 2 = Positive, 3 = Negative (Return)
Dimensions
- Width: 17-5â8" (448 mm)
- Height without feet: 7-1â8" (181 mm)
- Height with feet: 7-3/4" " (197 mm)
- Depth: 20" (508 mm)
- Depth with cables: 21-1â2" (546 mm)
Net Weight:Â 83 lb. (37.6 kg)
Shipping Weight:Â Â 107 lb. (45.4 kg)
Power Requirements
- Standby: <1 Watt
- Idle (bias set to low): 145 Watts
- Idle (bias set to high): 275 Watts
- Typical Listening levels: 400 Watts
- Maximum: 1500 Watts
