DESCRIPTION

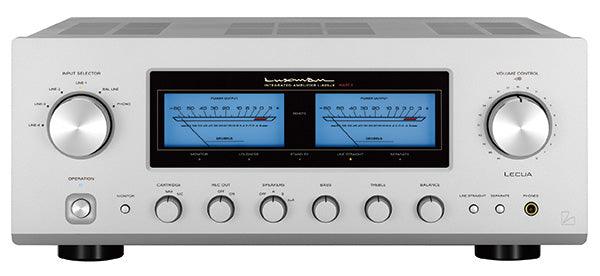

The Luxman L-505uXII boasts an unprecedented level of refinement and near-perfect performance, making it a highly sought-after product. This eagerly anticipated Mark II version of the acclaimed L-505uX integrates a variety of Luxman's proprietary technologies, including Version 4.0 ODNF (Only Distortion Negative Feedback) and LECUA (Luxman Electronically Controlled Ultimate Attenuator), making it a versatile and cutting-edge integrated amplifier. As the newest addition to Luxman's elite lineup, the L-505uXII continues the legacy of the highly praised L-505 series, solidifying its reputation as a top choice among audiophiles. With its sophisticated design and unparalleled authenticity, the L-505uXII stands out as another exceptional model in Luxman's impressive portfolio.
Â
Spec
| Rated output | 100W + 100W (8Ω), 150W + 150W (4Ω) |
|---|---|
| Input sensitivity/input impedance | PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN-IN: 1V/47kΩ |
| Output voltage | REC OUT: 180mV, PRE-OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (within -3dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 104dB or more |
| Volume adjustment | LECUA |
| Amplification circuit | ODNF 4.0 |
| Output configuration | Bipolar parallel push-pull |
|---|---|
| Damping factor | 210 |
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
| Power supply | 230V~(50Hz) / 115V~(60Hz) |
| Power consumption | 270W 85W (under no signal), 0.4W (at standby) |
| External dimensions | 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth |
| Net weight | 22.5kg (main unit) |
| Accessories | Remote control (RA-17A) Power cable |
| Speaker terminal Supported Y-lug terminal dimension | Width of part a: 15mm or less Width of part b: 8mm or more * Connection may not be performed depending on the shape of the Y-lug terminal. |
