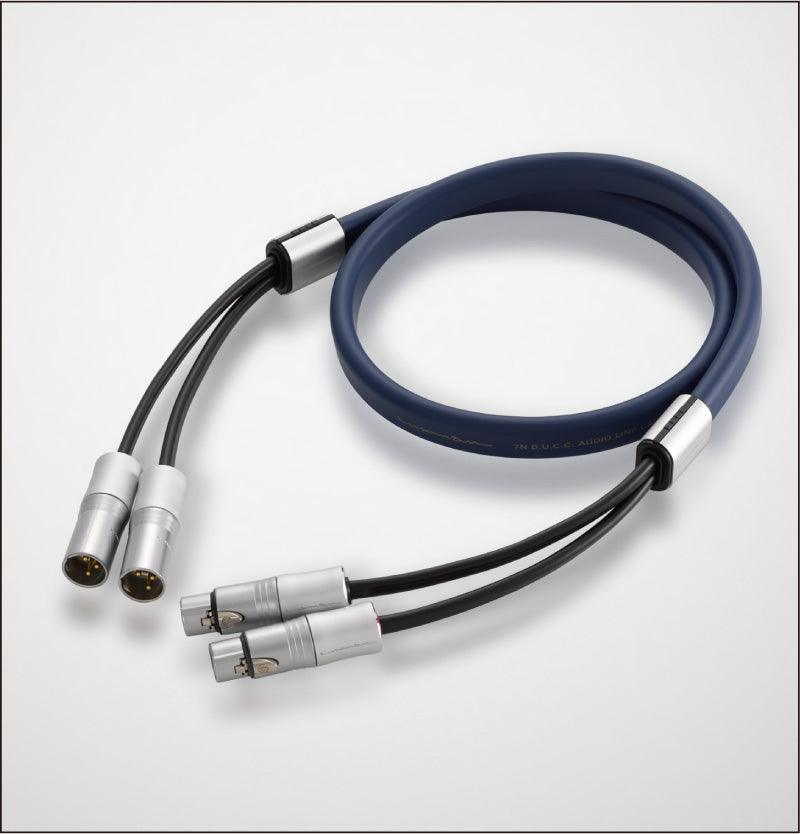

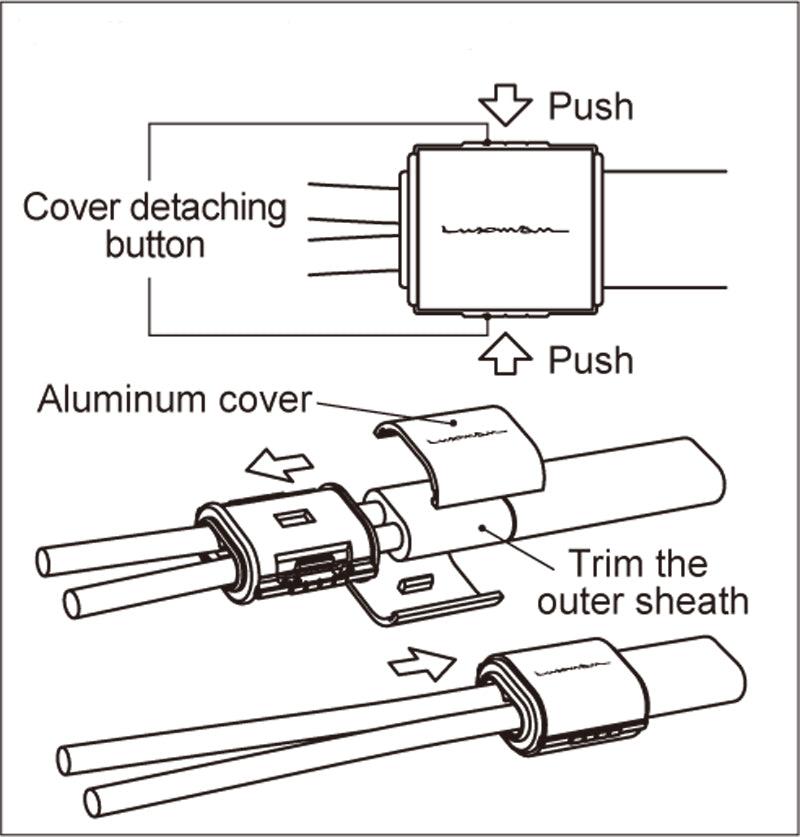

The LUXMAN 15000 series line cables feature a large diameter core utilizing high-purity 7N CLASS D.U.C.C. (99.99998%+ pure copper*) to ensure lower impedance. LUXMAN original technologies, such as a non-twisted structure of binding hot and cold lines in parallel to eliminate unwanted inductance, an integrated bound structure of the Left and Right channels to minimize unwanted ground loops and individual shielding for hot and cold transmission lines (reducing line-to-line capacitance by half) are also featured, resulting in an unconstrained and lively sound. The JPR-15000 features newly developed, easy to mount, high quality RCA terminals that are constructed of high conductivity materials. The JPC-15000 is fitted with genuine XLR terminals manufactured by Neutrik®. A newly developed, adjustable branch holder with an integral aluminum cover allows the length from the terminal to the holder to be easily adjusted without compromising the structural performance or appearance.
Specifications

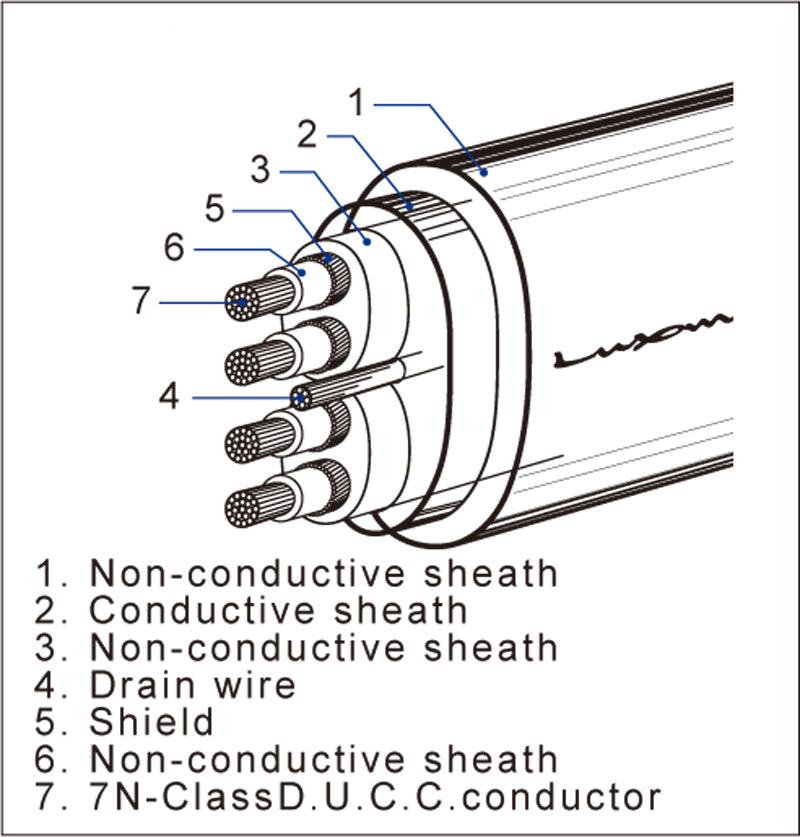

| Structure | Individually shielded 2-core,non-twisted structure |
|---|
| Core wire | High-purity copper (7N CLASS D.U.C.C.),Φ0.26mm x 19pcs |
|---|
| Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
|---|
| Shielded wire | Oxygen-free copper (OFC) wire, Φ0.18mm x 38pcs |
|---|
| Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
|---|
| Conductor resistance | 18mΩ/m or less (at 20°C) |
|---|
| Insulation resistance | 5000MΩ/m or more (at 20°C) |
|---|
| Capacitance | 70pF/m or less |
|---|
| Withstand voltage | 1,000VAC (for 1 minute) |
|---|
| Cable outside diameter | 10.5mm x 20mm |
|---|
