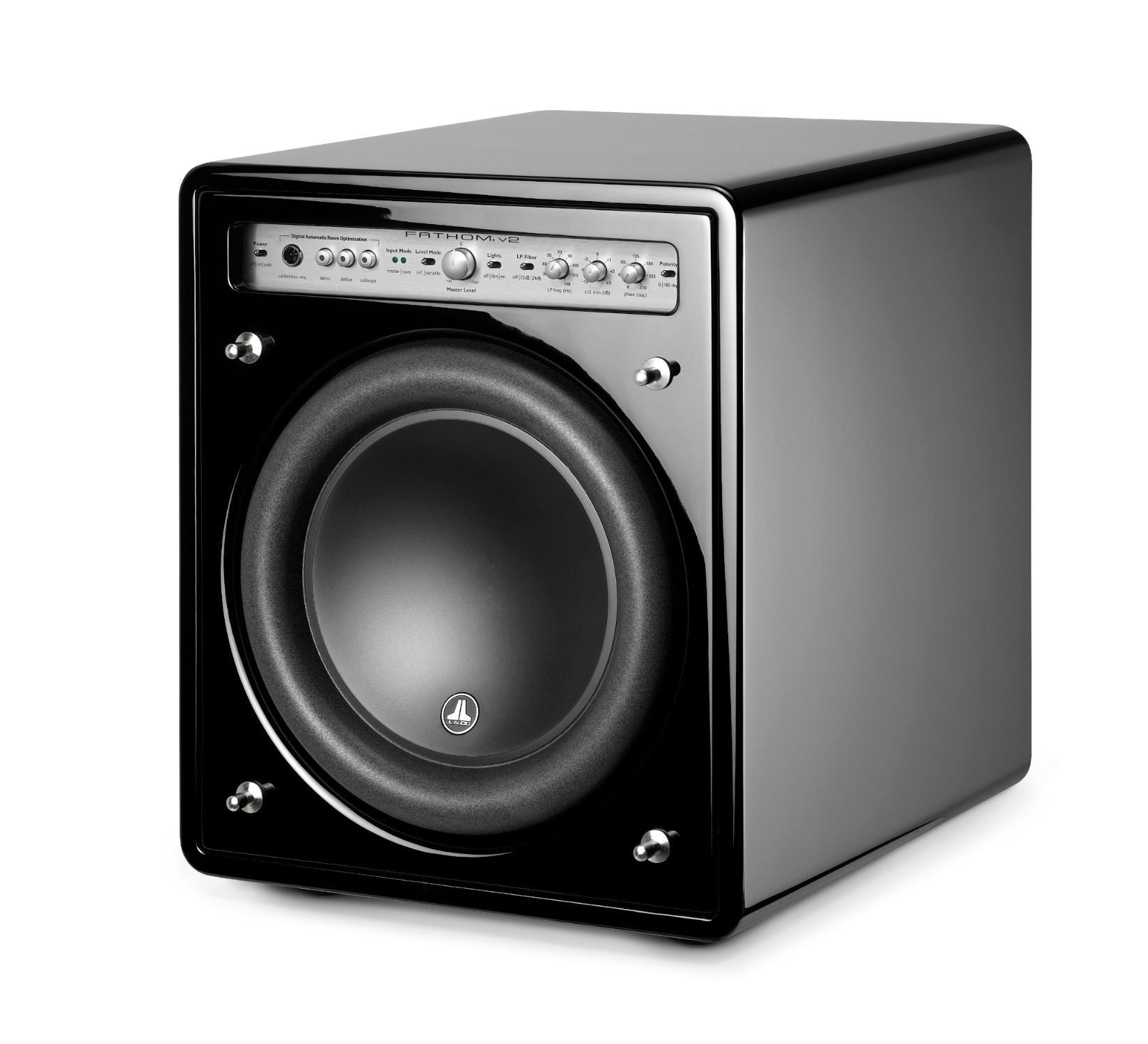

The Fathom f110v2 is the most compact subwoofer in the Fathom lineup but is fully capable of delivering stellar performance in smaller spaces. The combination of an ultra-long throw W7 10-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.
Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f110v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.
A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
Finish: Gloss Black
Grille finish: Black fabric
Enclosure Construction: MDF
Enclosure Type Sealed
Enclosure Finish Black Gloss
Frequency Response (Anechoic) 27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 120 Hz
-10 dB at 19 Hz / 155 Hz
Effective Piston Area (Sd) 60 sq in / 0.0387 sq m
Effective Displacement 160 cu in / 2.6 L
Amplifier Power 1.1 kW RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Light Modes Off, On or Dim
Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs N/A
Input Grounding Isolated or Grounded
Input Modes Master or Slave
Level Control Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz - 130 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0 - 280 degrees
Extreme Low Frequency (E.L.F.) Trim Variable, -12 dB to +3 dB at 28 Hz
Line Outputs N/A
Output to Slave Balanced (one male XLR jack)
Calibration Mode Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone
Width (W)
12.92 in / 328 mm
Height (H) 15.64 in / 397 mm
Depth (D) 17.27 in / 439 mm
Net Weight 69 lb / 31 kg
Note: Height dimensions include feet.
