NCF Piezo Ceramic Series Connectors ⢠A Furutech First!

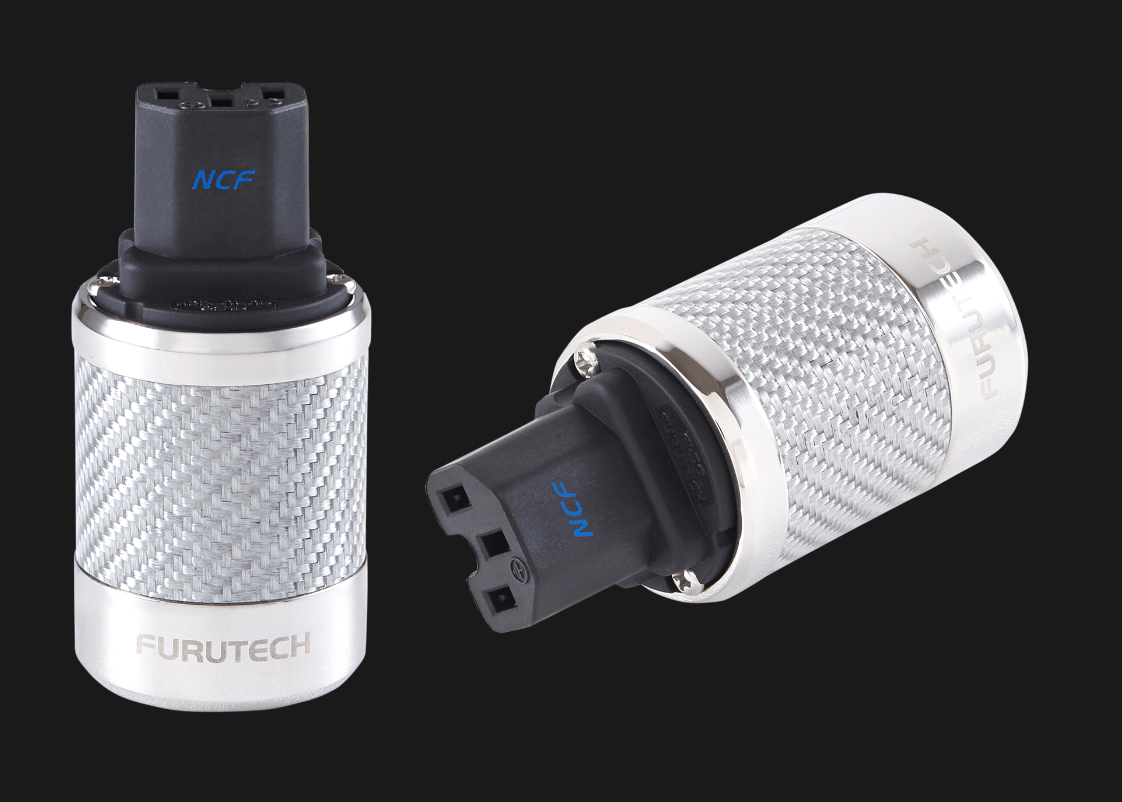

Furutechâs Pure Transmission FI-50 NCF Piezo Ceramic series connector bodies and housings feature several breakthrough construction techniques.
A multilayer nonmagnetic stainless steel and silver plated carbon fiber shell incorporates a special damping and insulating acetal copolymer. Furutech settled on stainless and silver-plated carbon fiber for the outer housing after extensive listening sessions with Japanese industry figures and audiophiles.
The body of the connectors incorporates an âactiveâ damping material: Nano Crystal² Formula - Nano Crystalline, Ceramic and Carbon Powder
Incorporated into select Furutech products, Nano Crystal² Formula --- NCF is comprised of a special crystalline material that has two âactiveâ properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional âPiezo Effectâ damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material â only found in Furutech products!
Nano Crystal² Formula eliminates static, âinterconvertsâ thermal, mechanical, and electrical energy, and damps vibrationsâall for the finest Furutech Pure Transmission signal imaginable.
Floating Magnetic Field Effects
The Furutech Earth/Ground Jumper System
How far will Furutechâs engineers go in their attempts to reach Pure Transmission reference quality? Their concentrated examination of every element of signal transfer has resulted in another breakthrough technology, the Furutech Earth/Ground Jumper System. It eliminates EMI (Electromagnetic Interference) induced in metal parts like connector housing screws.
Current flowing through the power connector creates a magnetic field, just as an insulated conductor creates both electromagnetic and electrostatic fields. Furutech engineers found this magnetic field induces current flow (and a small magnetic field) in the screws holding the connector together! These magnetic fields interfere with the larger magnetic field around the conductor and connector.
Furutechâs total attention to detail and elegant engineering neatly solve the problem. The Earth/Ground Jumper System connects the securing screws to a ground terminal within the plug eliminating the field disturbances they cause. The stray fields are grounded by a series of interlocking parts within the connector that attach to the ground conductor. The Jumper System is available in Furutech NEMA Power and IEC Connectors.ãThe Earth/Ground Jumper System Carries US Patent No. 6,669,491
Â
Specifications
⢠α (Alpha) Pure-Copper Rhodium-plated Conductor
⢠Earth (Ground) Jumper System (US Patent No.: 6,669,491/European: EP1445837)
⢠Nylon/fiberglass body with a special anti-resonance nano-sized crystalline, piezo ceramic particles, and carbon-damping material
⢠Multilayered nonmagnetic stainless steel and silver-plated carbon fiber housing incorporating an acetal copolymer. The best damping and insulation materials improve frequency extension and tonal balance
⢠Specified for cable diameters from 6mm to 20mm
⢠Dimensions:
FI-50 NCF Body length 44mm x 34.5mm diameter / 80.3mm overall length
⢠Metal cable clamp improves grip and reduces mechanically and electrically induced distortion
