Performance focused

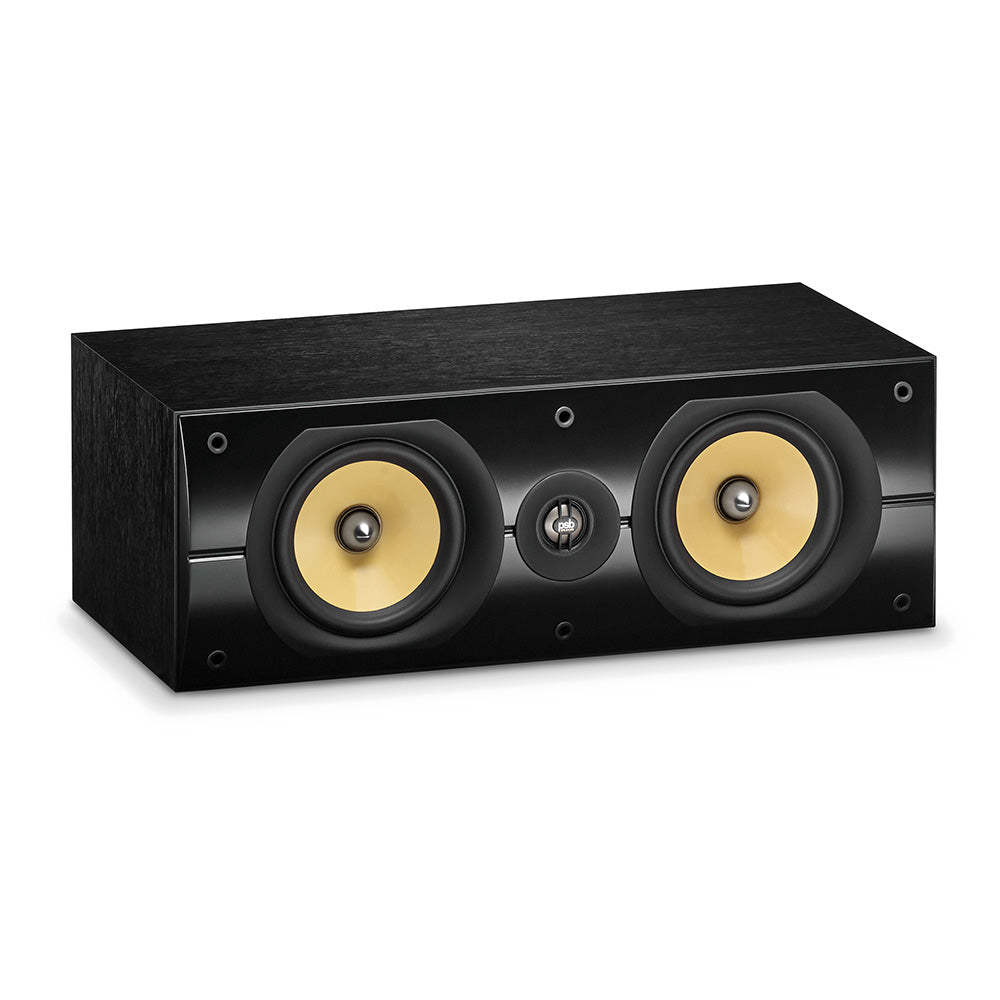

Featuring a dual-woofer horizontal format with a pair of 5¼” (133mm) woofers, the Imagine XC is designed for optimal performance when paired with other components in your setup. PSB has matched the Imagine XC carefully in timbre with the other Imagine X models for the best versatility when setting up your home theatre system.
Experience rich, detailed sound
Even the most demanding audiophile will appreciate the rich and detailed cinematic sound that flows from this speaker. Thanks to PSB’s expert approach to the design of the Imagine XC, music and movie sound effects have an added layer of authenticity. With the ability to bring out the musical essence of everything you choose to play, the XC is a welcome addition to your system setup.

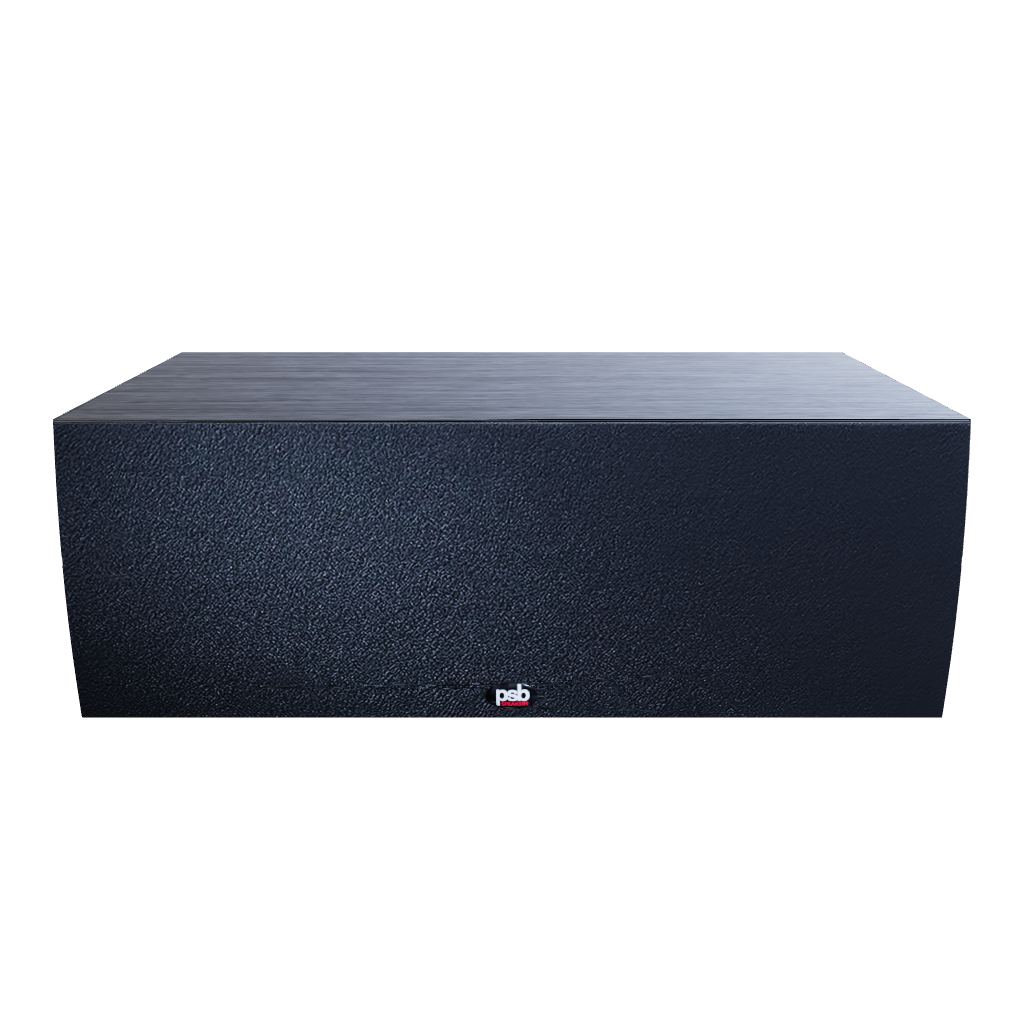

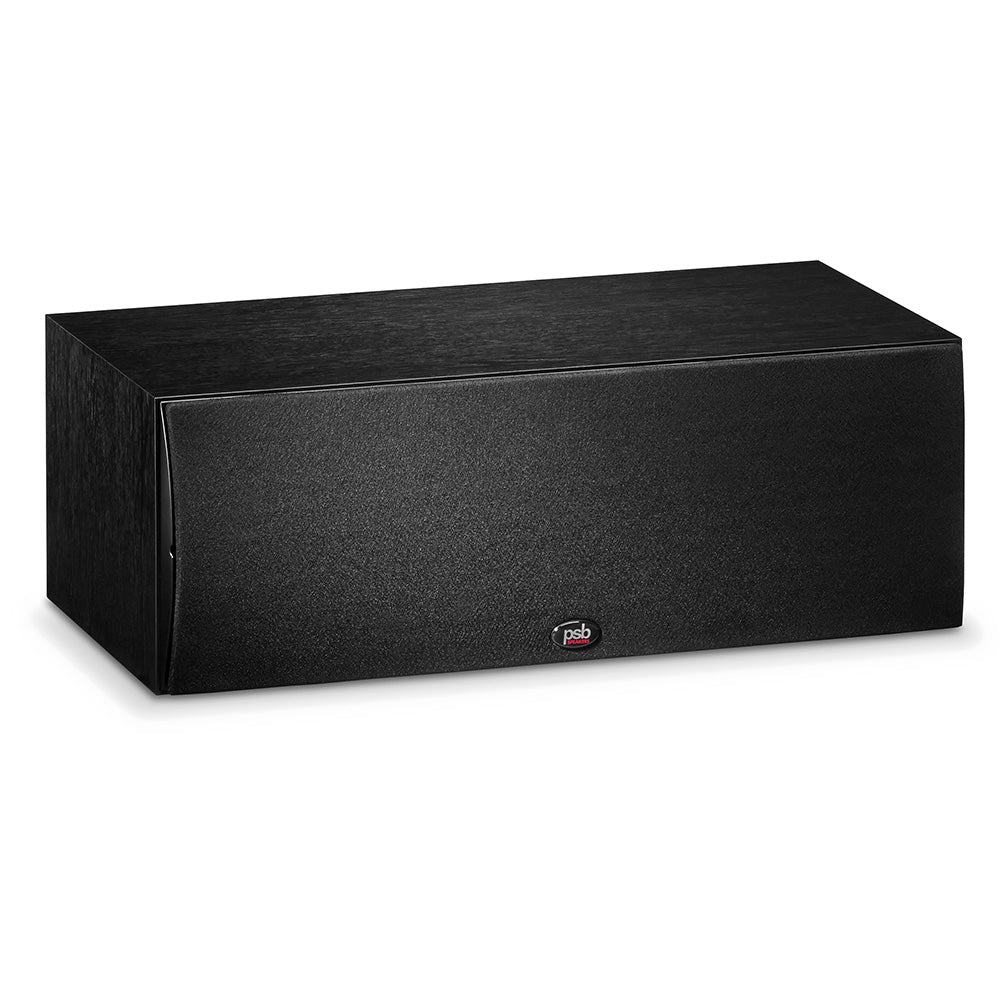

Simple and attractive
Just like the other models in the Imagine X range, the XC boasts a simplified and attractive black cabinet design, and can easily be incorporated into any room in your home with ease. The minimalist design of this center channel speaker allows it to blend well into your system setup and it will also look at home next to modern flat profile TVs.
Specifications
Frequency Response
| On Axis @ 0° ±3dB | 50 - 23,000Hz |
| On Axis @ 0° ±1 1/2dB | 65 - 20,000Hz |
| Off Axis @ 30° ±1 1/2dB | 65 - 10,000Hz |
| LF Cutoff -10dB | 45Hz |
Sensitivity
| Anechoic Chamber | 88dB |
| Listening Room | 90dB |
Impedance
| Nominal | 8 Ohms |
| Minimum | 4 Ohms |
Input Power
| Recommended | 20 - 150 Watts |
| Program | 150 Watts |
Acoustic Design
| Tweeter (Nominal) | 1" (25mm) Titanium Dome with Ferrofluid Neodymium Magnet |
| Woofer (Nominal) | 2 x 5 1/4" (133mm) Injection Moulded Clay/Ceramic reinforced Polypropylene Cone Rubber Surround Dual Magnet |
| Crossover | 1,800Hz, LR4 |
| Internal Volume | 0.58 cu ft (16.4L) |
| Design Type | Bass Reflex Rear Port |
Dimensions / Weight / Finish
| Size (W x H x D) | 19 1/8 x 6 3/4 x 11 1/8" * 485 x 170 x 280mm |
| Weight | Net - 19.8lb (9kg)/each Sipping - 22.2lb (10.1kg)/each |
| Finish | Black Ash |
| Notes | * Non-metric measurements are approximate. All specifications are subject to change without notice. |
