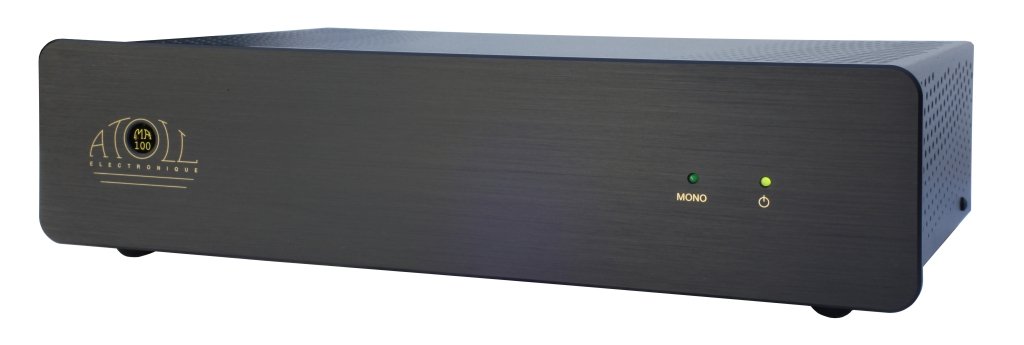

An amazingly compact and powerful solid state stereo amplifier! Can be bridged and used as a monoblock as well!
– Aluminium front panel of 4 mm (black or silver)
– complete steel chassis of 1,5 mm
– Fully symmetrical stages with discrete components
– Single pair of MOS-FET transistors per channel on outputs
– 170VA toroïdal transformer
– Stereo/Mono bridge

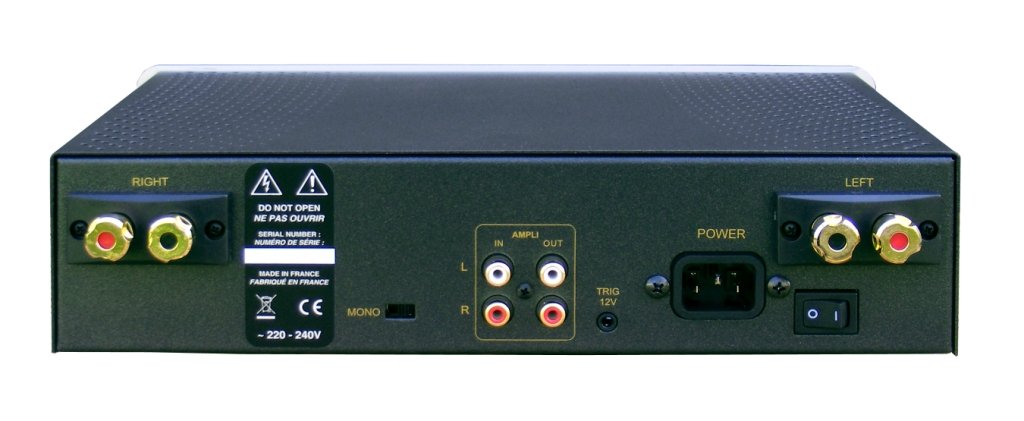

Rear connectors:
– 2 RCA Input/Output
– 2 loudspeakers Outputs
– Trigger 12V input
– Stereo/Mono switch
Technical Specs:
Power Watts RMS / ch. / 8 ohms (230V) 2×60 W
Power Watts RMS / ch. / 4 ohms (230V) 2×80 W
Impulse Power 100 W
Power Supply 170 VA
Total of capacitors 16 600 μF
Number of inputs 2
Input Impedance 110 kOhms
Sensitivity 1,68 V
Rate signal/noise 100 dB
Distortion at 1 kHz 0,05 % / 10W
Frequency response 5 Hz – 200 kHz
Rise time 2 μs
Dimensions 320x230x83 mm
Weight 4 kg
