Pass Labs XA30.8 Stereo Power Amplifier - High-End Audio Equipment for Home Theater & Music Listening - Perfect for Audiophiles & Hi-Fi Systems

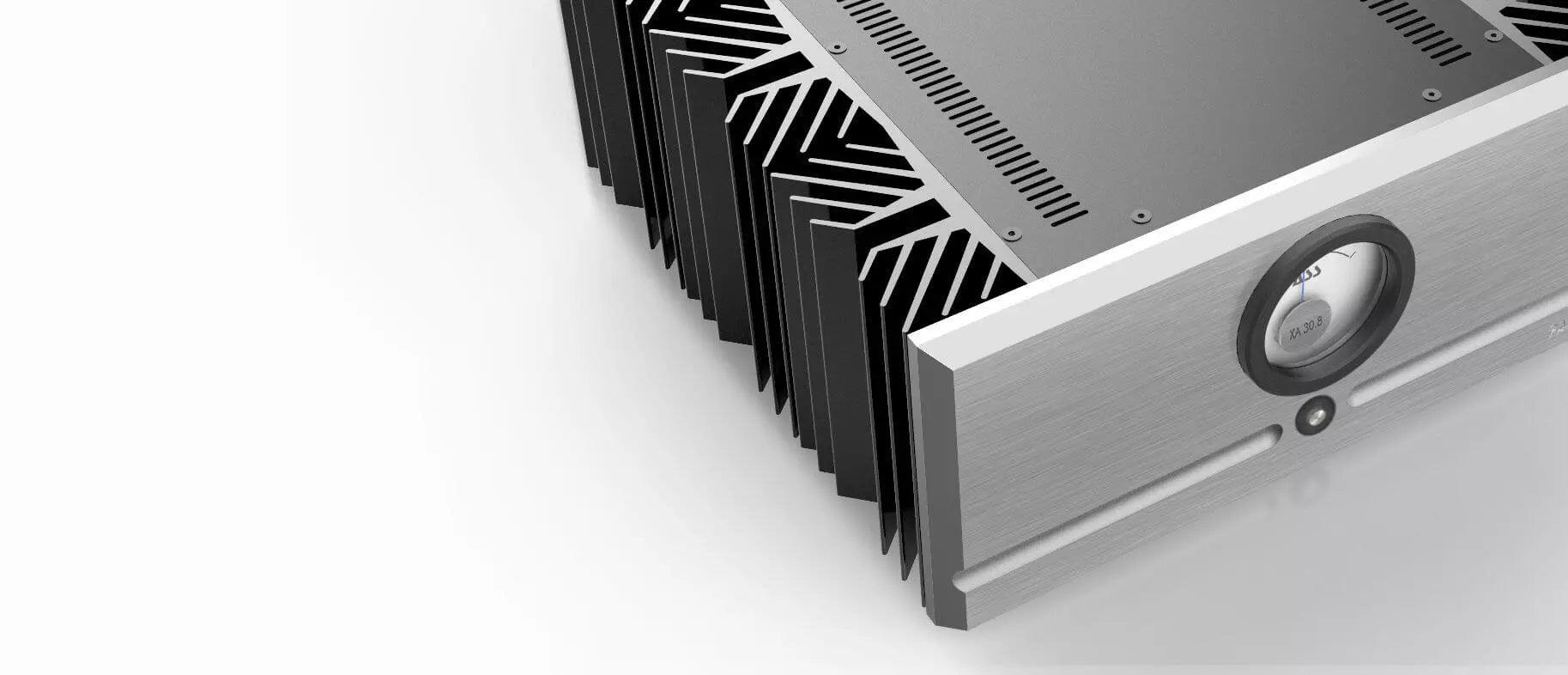

An exceptional stereo power amplifier on many levels -- high-biased MOSFETs providing higher-power class A operation, direct-coupled front-end circuitry for exceptionally high stability, and larger, more robust heat sinks similar to those of the larger .8 amplifiers. The list goes on, but listening may tell you the XA30.8 represents a value high-point -- quite possibly your particular optimal balance between performance and cost.



Specifications

Class - A

Type - Stereo

Gain (dB) - 26

Full pwr @ 26 dB gain (V) - 0.77

Low-Frequency Response - 1.5 Hz

High-Frecency Response - 100 KHz

Power Output /ch (8ohms) - 30

Damping Factor - 150

Power Consumption @ Idle (Watts) - 370

Unit Dimension (W x D x H)(In.) - 19 x 21.25 x 7.5

Unit Weight (LBS) - 88
