The Lyngdorf CS-1 is a compact full range loudspeaker specifically designed for discreet placement inside cabinets such as lowboards, sideboards and TV furniture.
For this purpose, the CS-1 is constructed as a horizontal rather than vertical loudspeaker design, the bass reflex is front-ported, while the tweeter is mounted both elevated and angled. This special tweeter placement reduces sound diffractions from furniture edges inside a cabinet and also improves sound radiation toward the listening area.
Best sound performance
For best sound performance the Lyngdorf CS-1 is based on the same midrange/bass driver and tweeter as the success- ful FR-1 two-way loudspeaker, while the overall construction and sound tuning have been specifically designed for in-cabinet placement.
Constructed for in-cabinet placement
Designed for placement inside cabinets and furniture, the CS-1 is a solid MDF construction with a durable and easy to clean matte-black lacquer. Self-adhesive rubber pads are supplied with the speaker to prevent any scratches on the furniture surface and to absorb resonance between furniture and speaker.
The CS-1 comes without any front grille to allow for the clearest sound performance for example behind the fabric cloth doors of TV furniture.
Specifications
Description:Â 2-way speaker with angled tweeter and front-ported bass reflex
Power handling:Â 100 W
Tweeter:Â Size 1â³, textile soft dome, PTC protection
Midrange/bass driver:Â Size 6.5â³, 35 mm voice coil, cone material: aluminum, die cast basket, vented magnet
Enclosure:Â Bass reflex, front ported, full MDF construction, volume: 15 litres
Frequency response:Â 42 to 22.000 Hz (-3dB)
Nominal impedance:Â 4 Ohm
Sensitivity:Â 88 dB (2.83V/1m)
Crossover point:Â 2.2 kHz

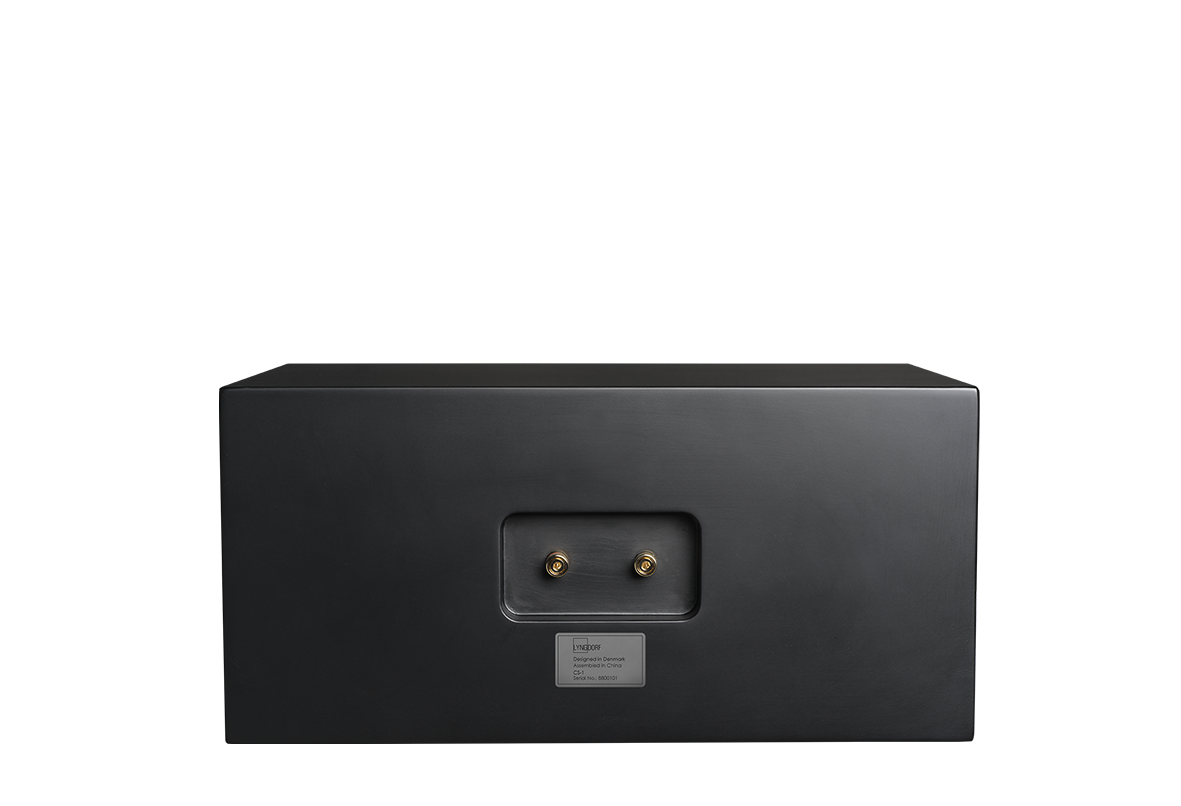

Connections:Â Binding posts
Placement options:Â Horizontal, inside furniture and cabinets
Dimensions (W x H x D):Â 42.0 x 20.0 x 29.5 cm / 16.5 x 7.9 x 11.6 inches
Weight:Â 7.9 kg / 17.4 lb
Finish:Â Matte black
