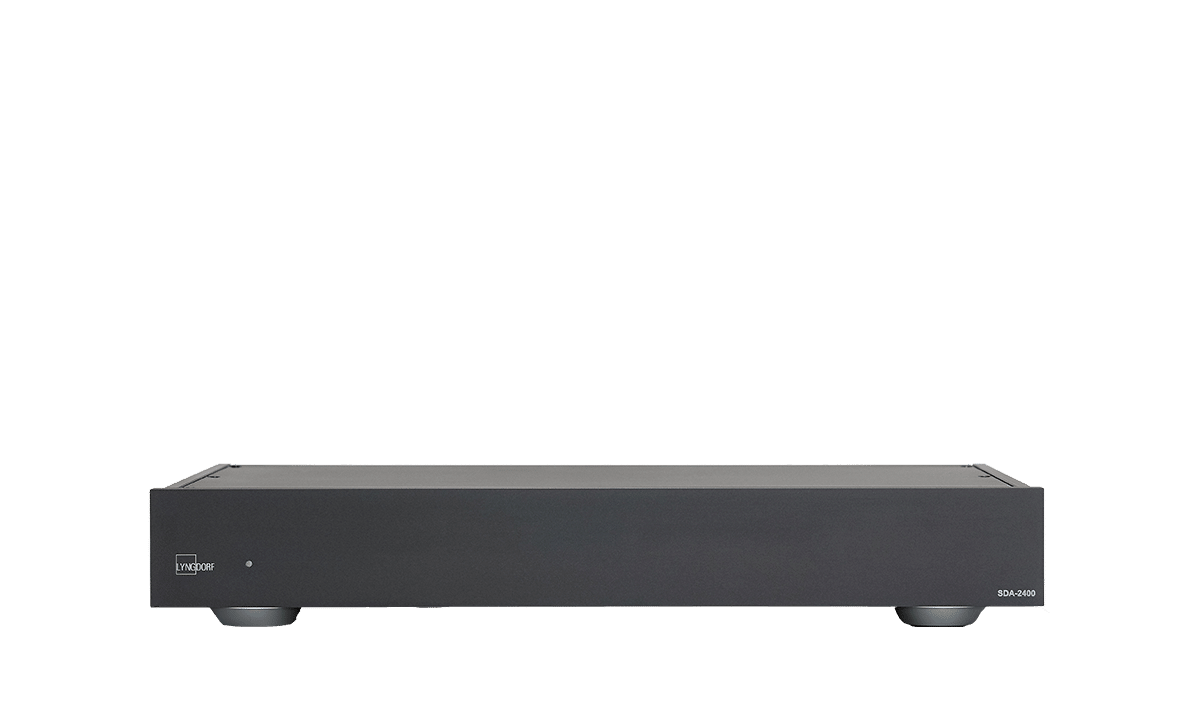

The versatile SDA-2400 stereo power amplifier features both analog and digital inputs, as well as a range of novel features to deliver outstanding performance in a wide range of applications.
Perfect for any setup

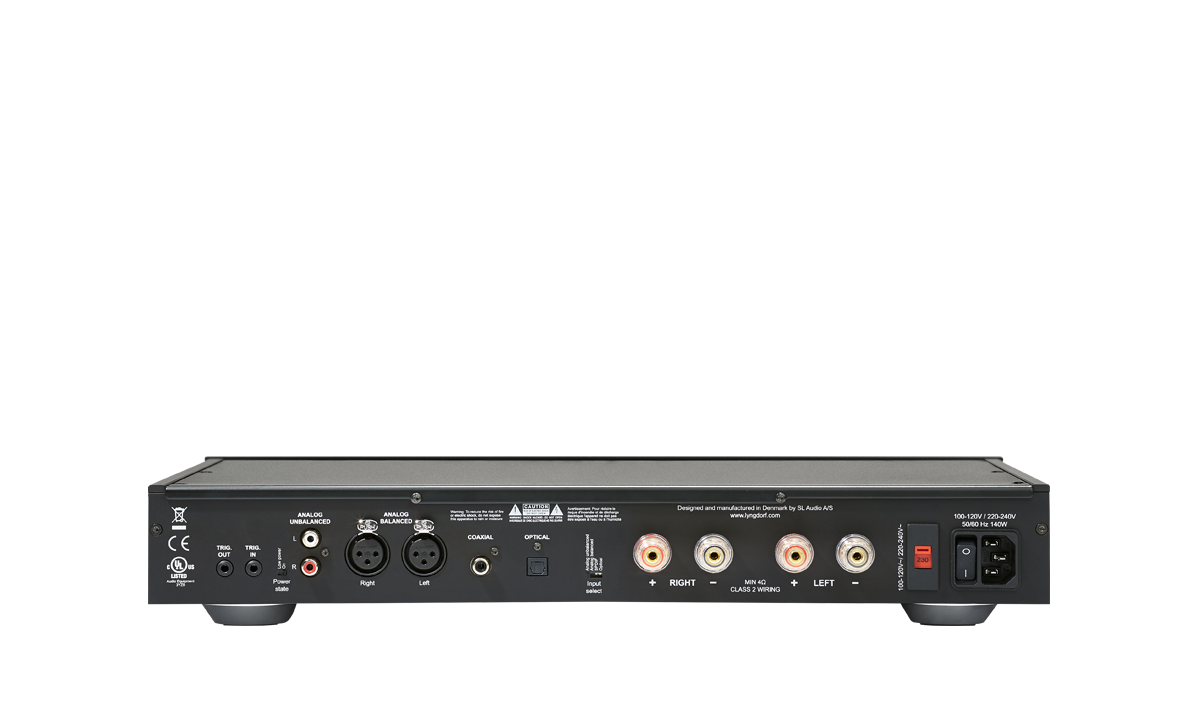

It includes both optical and coaxial digital inputs in addition to the traditional balanced and single-ended analog inputs in order to fit any possible setup. This power amplifier can function in a traditional stereo or multichannel setupâbut also as a powerful addition to single standing media players and streaming devices with integrated volume control. Using the digital connections, there will be no interference or noise from external sources. The digital inputs are based upon the Wolfson WM8804 PLL Transceiver for excellent dynamic performance and improved tolerance to clock jitter.
Smart power
The SDA-2400 will automatically go into stand-by mode when not in use. When the amplifier detects a signal, it will turn on automatically. You can set it to always be onâand if your connected device has a 12V trigger output, this can control the power state of the SDA-2400, and even daisy-chain several SDA-2400 amplifiers.
Lyngdorf is the pioneer in digital amplifiers, and the SDA-2400 power amplifier is not your typical Class D power amplifier. Itâs better. It has very low and linear distortion and an impressive signal-to-noise ratio, making it the perfect choice for those seeking the purest sounding high-power amplifier on the market.
The output stage uses Pulse Width Modulation with a patented switch speed optimization technology. Together with a fixed switching speed of 390 kHz and minimal feedback control, this ensures low and linear distortion compared to typical Class D amplifiers.
Specifications
Power Rating:Â 2 x 400 W @ 4Ohm, 2 x 200 W @ 8Ohm
Idle power consumption:Â 25 W
Standby power consumption:Â 0.35 W
Damping factor: 266 (8 â¦, @100 Hz)
Inputs: 1 x Analog Single Ended RCA, 1 x Analog Balanced XLR, 1 x Coaxial Digital (â¤192kHz / 24 bit), 1 x Optical Digital (â¤96kHz / 24 bit), * All inputs has signal detection
Power Modes:Â Input detection, Always on
Trigger (12V):Â 1 x Input, 1 x Output for daisy chain
Heat dissipation value:Â 210
Dimensions (WxHxD):Â 45 x 7.3 x 36 cm*, 17.7 x 2.9 x 14.2 in*, *including 1.3cm / 0.5in feet (rack mounting kit included)
Finish:Â Anodized aluminum, matte black
Weight:Â 6.5 kg / 14.3 lb
