The M2 incorporates the Diamond coated Beryllium diaphragm tweeter (28-mm) used in the M3 and M6. The optimized geometry and the Diamond coating on the Beryllium aligns the acoustical properties closer to perfection without adding extra weight of a full Diamond dome, this revolutionary tweeter design offers a near perfect weight to stiffness ratio that is unmatched in the industry. The new tweeter provides extra-long excursion movement and uses a neodymium based motor system that is customized to match the sensitivity and power handling capabilities of the M2 while maintaining ultra-wide dispersion characteristics and ultra-low distortion measurements.
Magico is the worldâs first manufacturer to utilize graphene in the development of a radically new and advanced loudspeaker cone design. Graphene has many extraordinary properties and is approximately 100 times stronger than the strongest steel. The newly designed Magico six-inch midrange and seven-inch bass driver cones found in the M2 are both manufactured using Multi-Wall carbon XG Nanographene and an ultra-stiff proprietary new carbon weave which is 20% lighter and 300% stiffer than previous cone material we used in Magico loudspeaker offerings.
Two seven-inch M2 bass drivers are vertically aligned to achieve ideal room integration and reproduce the lowest registers of bass frequency with speed and accuracy. The M2 bass drivers are optimized for minimal music related distortions in the frequency and time domain using the latest state-of-the-art FEA simulation.
A contributing element to the stunning overall sound performance of the M2 is the application of the MPOD. The MPOD is based on the scientific principles of Constrained Layer Damping (CLD) which are well documented and in our opinion, the most effective way to channel unwanted vibrations away from a component and its platform. Operating under massive weight the MPOD is a noise channeling system that effectively dissipates resonance while maintaining ultimate coupling properties to the floor resulting in remarkable sonic results. M2âs ordered with the MPOD 3-Pt Stand come with a beautifully appointed case that includes six MPODâs and a professional grade torque wrench that allows for periodic maintenance of the internal tension rods.
SPECIFICATIONS
Driver Complement:
1 X 1â (2.8cm) Diamond Coated Beryllium Dome Tweeter
1 X 6â (12.24cm) Graphene Nano-Tec Midrange
2 X 7â (17.78cm) Graphene Nano-Tec Bass
Sensitivity: 88dB
Impedance: 4 Ohms
Recommended Power:
Minimum 50W rms

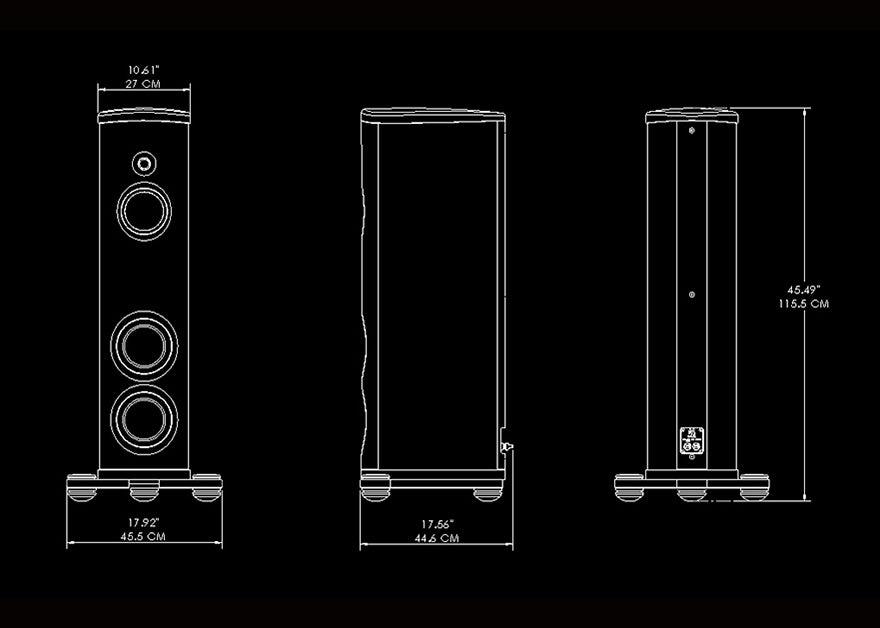

Dimensions:
45"H x 17.5"D x 18W
(114.3cm x 44.45cm x 20.32cm)
(including MPod 3-Pt Stand)
Weight: 165 lbs. (75 kg)
