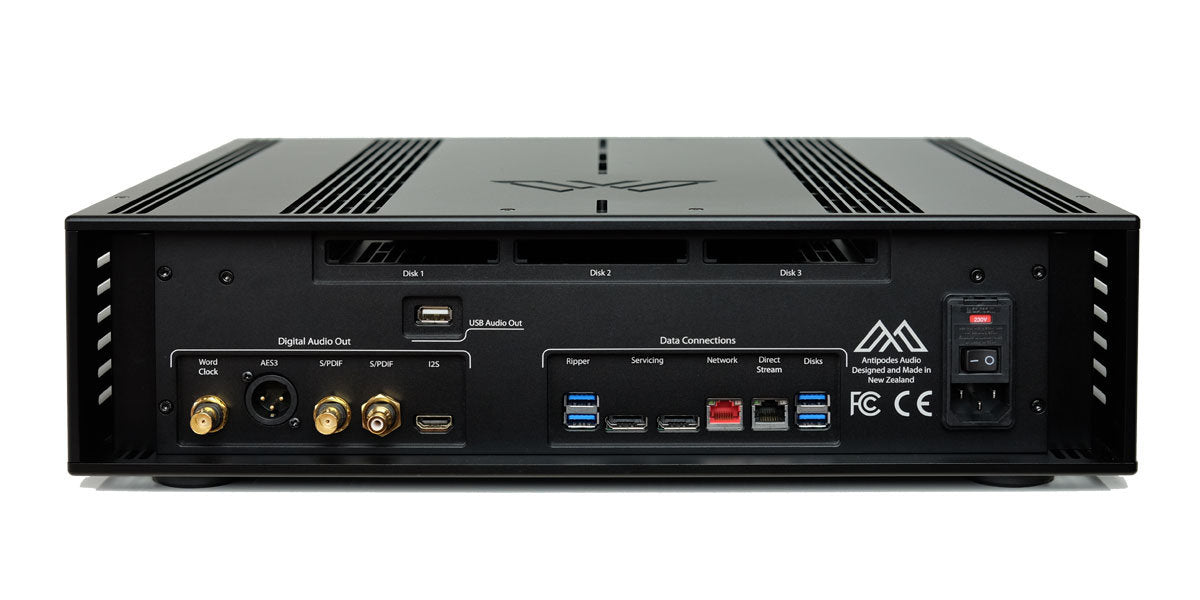

K50 Connections
1. Insert Up To three 2.5″ Sata SSDs. They will click securely in place. Insert
2. USB Audio 2.0 Output
3. OCXO Word Clock Master Output on BNC
4. AES3 Digital Audio Output on 3-pin XLR
5. S/PDIF Digital Output on BNC
6. S/PDIF Digital Output on RCA
7. S/PDIF Digital Output on Toslink
8. I2S Digital Output on RJ45
9. I2S Digital Output on HDMI
10. Dual USB Ports For External CD Ripper (eg. Antipodes K10)
11. Two Servicing Ports
12. Ethernet Connection to Network on RJ45
13. Ethernet Connection for Direct Streaming to Streamer on RJ45
14. Two USB Ports for USB Disks
15. Mains Power IEC Inlet – User Switchable 110-120vac to 220-240vac
