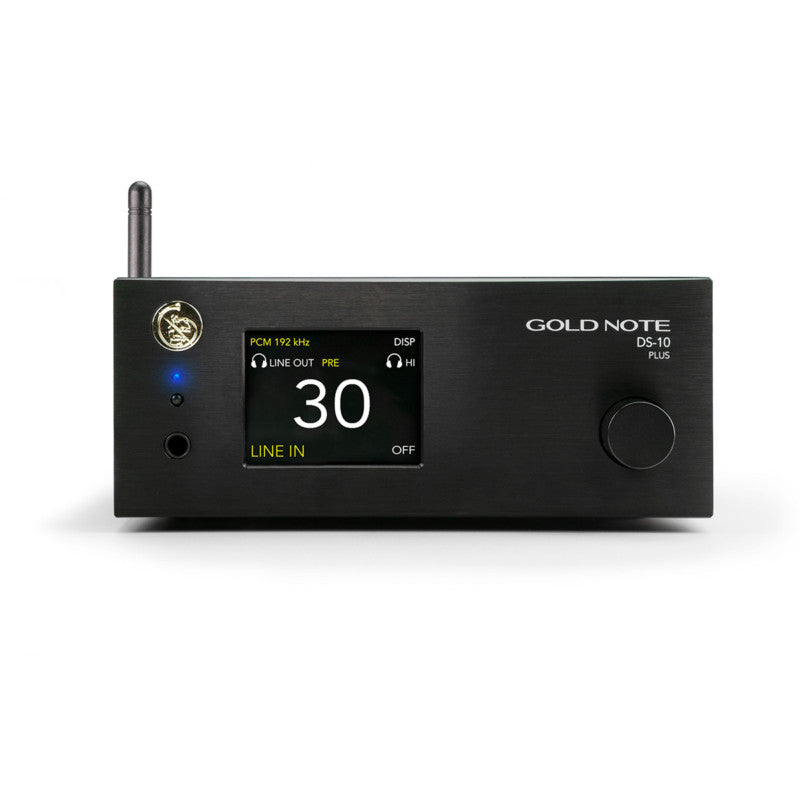

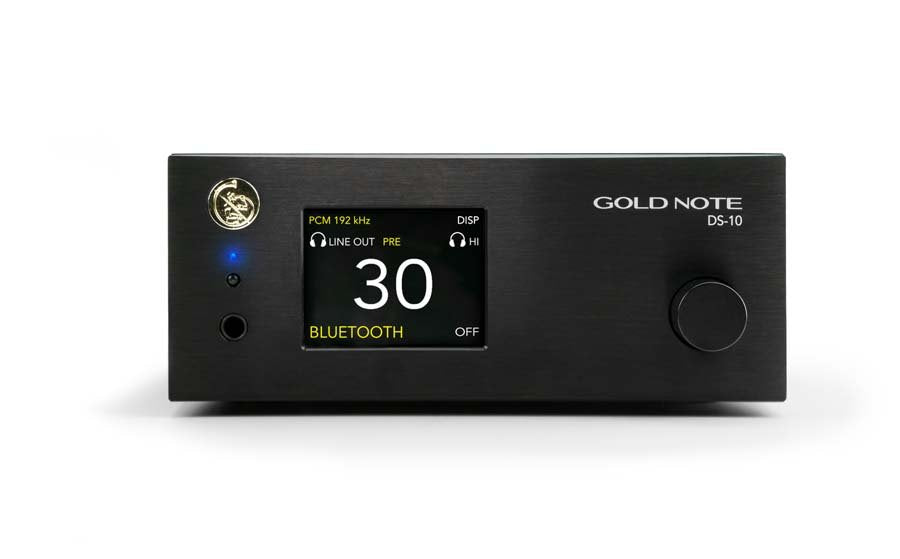

A COMPLETE AUDIO SOURCE: D/A CONVERTER, STREAMER, LINE PREAMPLIFIER AND HEADPHONE AMPLIFIER WITH ADDITIONAL ANALOG INPUT The DS-10 is a versatile state-of-the-art streaming DAC designed for the contemporary audiophile. The technology of the DS-10 is brilliantly enclosed in a compact-sized aluminium chassis and it’s the perfect addition to a modern High-End audio system. The DS-10 PLUS is also equipped with a 3.5 mm jack analogue input and a completely analogue stage, a perfect preamplifier for analogue and digital sources
The DS-10 PLUS is a 4-in-1 digital source that features a UPnP-DLNA Streamer, High-End D/A Converter, Line Preamplifier and Headphone Amplifier. Inspired by our acclaimed IS-1000 All-In-One unit, it combines its extended connectivity features with the exceptional high-resolution of the Bluetooth 5.0 – for the first time ever on a High-End audio product – and the impressive headphone double power GAIN output. The DS-10 PLUS is also equipped with an analogue input to become a complete preamplifier for analogue and digital sources, both the analogue line input and the preamp stage operate in a fully analogue way to preserve the purest audio quality (available on DS-10 PLUS only).
Part of the Series 10, the DS-10 is the perfect connection between the PH-10 phono stage and the PA-10 power amplifier, and the core of a smart stereo system.
The DS-10 is a Roon Ready device with a quick plug&play set-up and multi-room capabilities. Simply connect it to your network using the Wi-Fi or the Ethernet port and to your power amplifier or active speakers, and get ready to explore the limitless possibilities of high-resolution music. Stream through Roon, Airplay, Tidal, MQA, Qobuz, Spotify and Deezer or access your collection of digital music stored locally on a NAS or a USB flash drive controlling the DS-10 PLUS with our easy to use GN Control App on your smartphone or tablet (available for free on iOS and Android).
The DS-10 has a unique feature that sets it apart from any other DAC – its behaviour can be changed to adapt to the music played without modifying the audio signal and maintaining the highest audio quality, acting on the PCM Equalization curve (Low-Pass filter), the High-Frequency De-emphasis, and the internal power profile. Such profiles can be selected in real-time during music playback delivering a unique listening experience and ease of use thanks to the clear menu on the TFT display. It’s time to enjoy the unprecedented listening pleasure that only the DS-10 can offer you.
CHAMELEON MODE
With the Chameleon Mode you can adjust the sonic profile of the DS-10 fine-tuning the performance of the DAC to adapt it to the music you’re playing, just as a chameleon, acting on the PCM Equalization curve (Low Pass filter), the High-Frequency De-emphasis, and the internal power profile. The Chameleon technology allows you to adapt the DS-10 perfectly to the music you love while preserving the highest quality of the audio signal.
Please note:
The Chameleon Mode is available on firmware version V.130 and higher.
DAC D/A Converter AKM AK4493 PCM up to 32bit/768kHz & DSD512 native
STREAMER Roon Ready, MQA, Airplay, vTuner, Tidal, Qobuz, Deezer, Spotify
CONNECTIVITY LAN/WLAN
Bluetooth 5.0 (44/16)

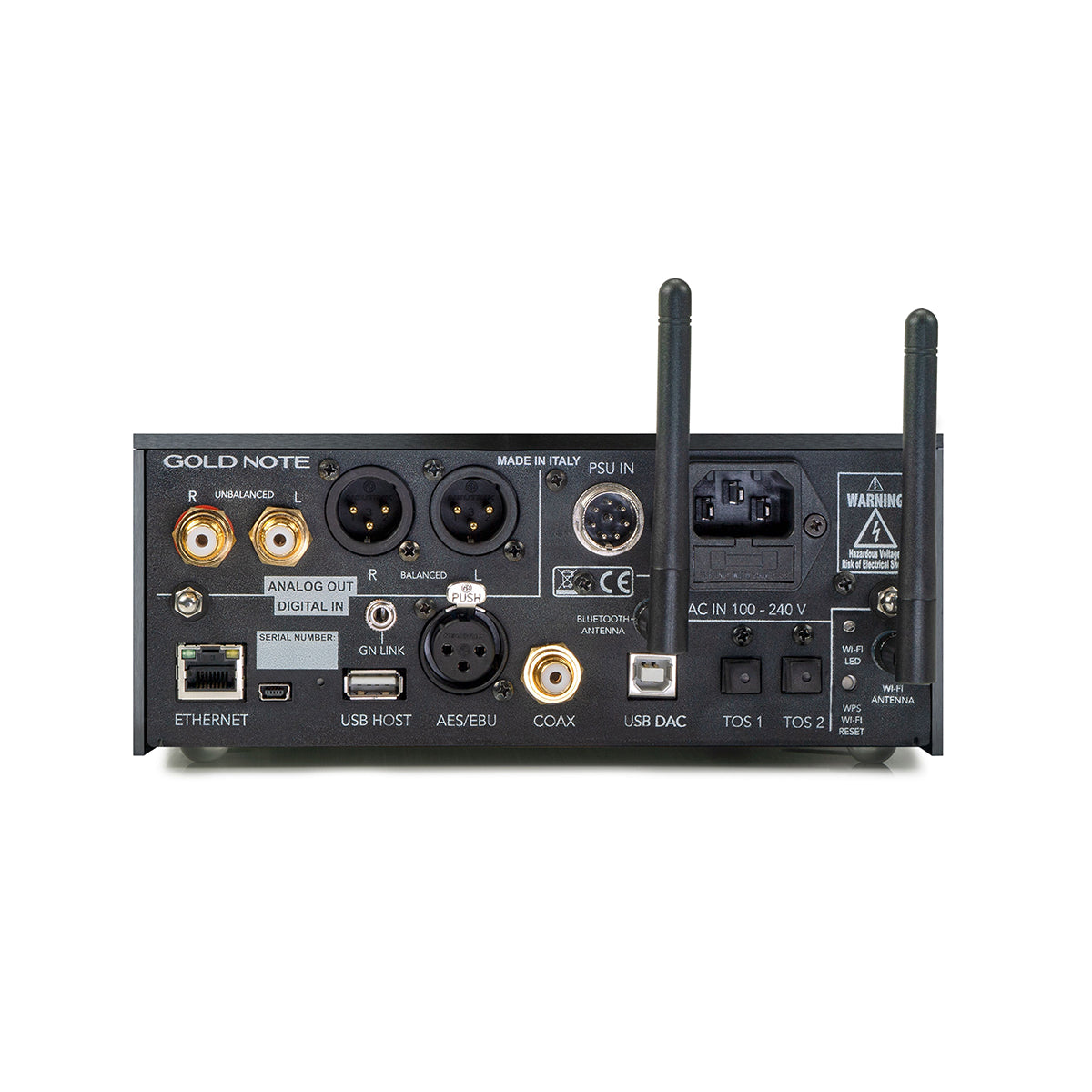

DIGITAL INPUTS 1 RCA Coax (PCM 24/192)
2 Optical Tos-Link (PCM 24/192)
1 AES/EBU XLR (PCM 24/192)
1 USB-B (PCM 32/768, DSD512)
1 USB-A (PCM 24/192, DSD64)
ANALOGUE INPUT 3,5mm mini jack
AUDIO OUTPUTS DAC stereo RCA @ 1Volt and balanced XLR @ 2Volt
AUDIO OUTPUTS PREAMP Stereo RCA, balanced XLR;
1 headphone 6,3mm Jack on the front panel double gain
OUTPUT IMPEDANCE 50Ω
FREQUENCY RESPONSE 20Hz-20kHz +/-0.1dB
THD – TOTAL HARMONIC DISTORTION 0.001% max
SIGNAL TO NOISE RATIO -125dB
PREAMP STAGE VOLUME CONTROL enabled/disabled by remote
DYNAMIC RANGE 120dB
SUPPORTED AUDIO FORMATS (NETWORK) PCM 24bit/192kHz
DSD64: DSF, DFF
AIFF (.aif, .aiff, .aifc)
ALAC
WAV (.wav) packed/unpacked
FLAC
MP3
Apple Lossless
OGG
Monkey’s
IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
SUPPORTED MEDIA SERVERS all UPnP / DLNA / Roon
REMOTE CONTROL included
CONTROL APP available for free on iOS and Android
Search for “GN Control” on the Apple App Store or Google Play Store
POWER SUPPLY 100-240V, 50/60Hz
Multiple Transformer proprietary power supply
Power consumption: 30W
DIMENSIONS 200mm W, 80mm H, 260mm D
WEIGHT 8lbs net
11lbs boxed
FINISHES Brushed Aluminum in Black, Silver or Gold color
