Items marked (available to demo) are available in our store for audition. Please give us a call or email in advance for an appointment.
AVAILABLE IN BLACK ONLY
ALL IN ONE BEAUTIFUL COMPACT INTEGRATED AMP/PRE/DAC/STREAMER/PHONO

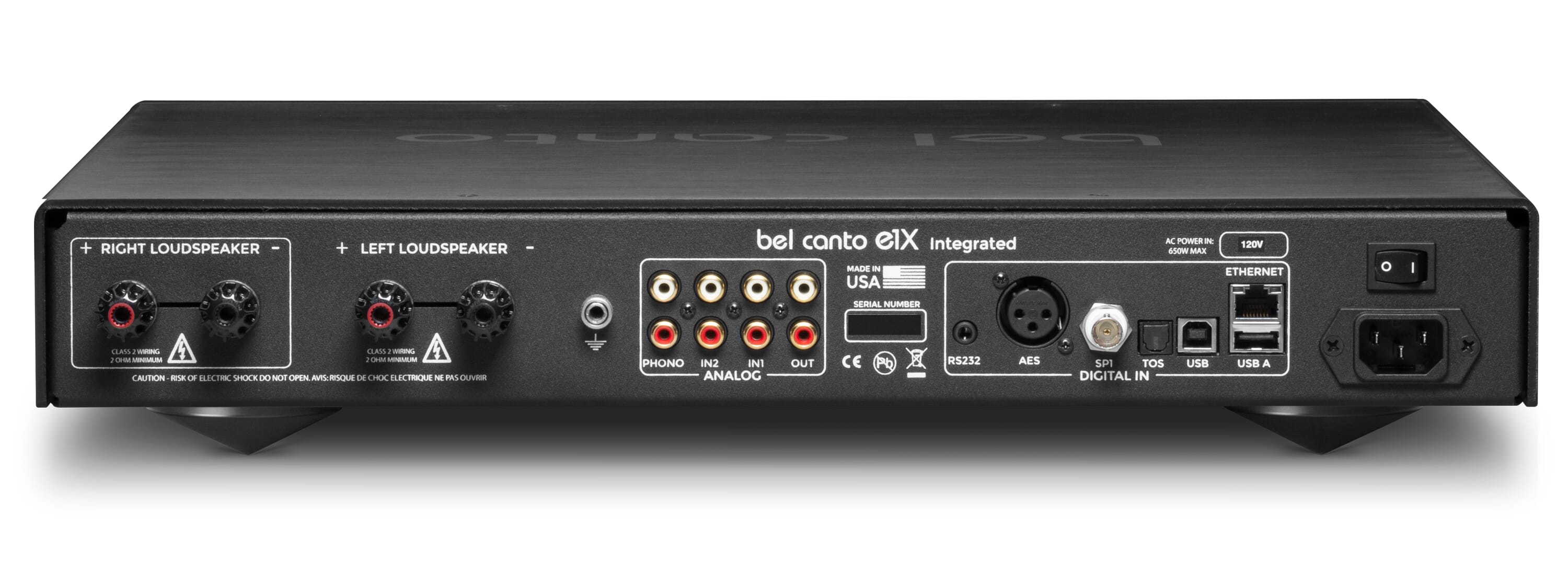

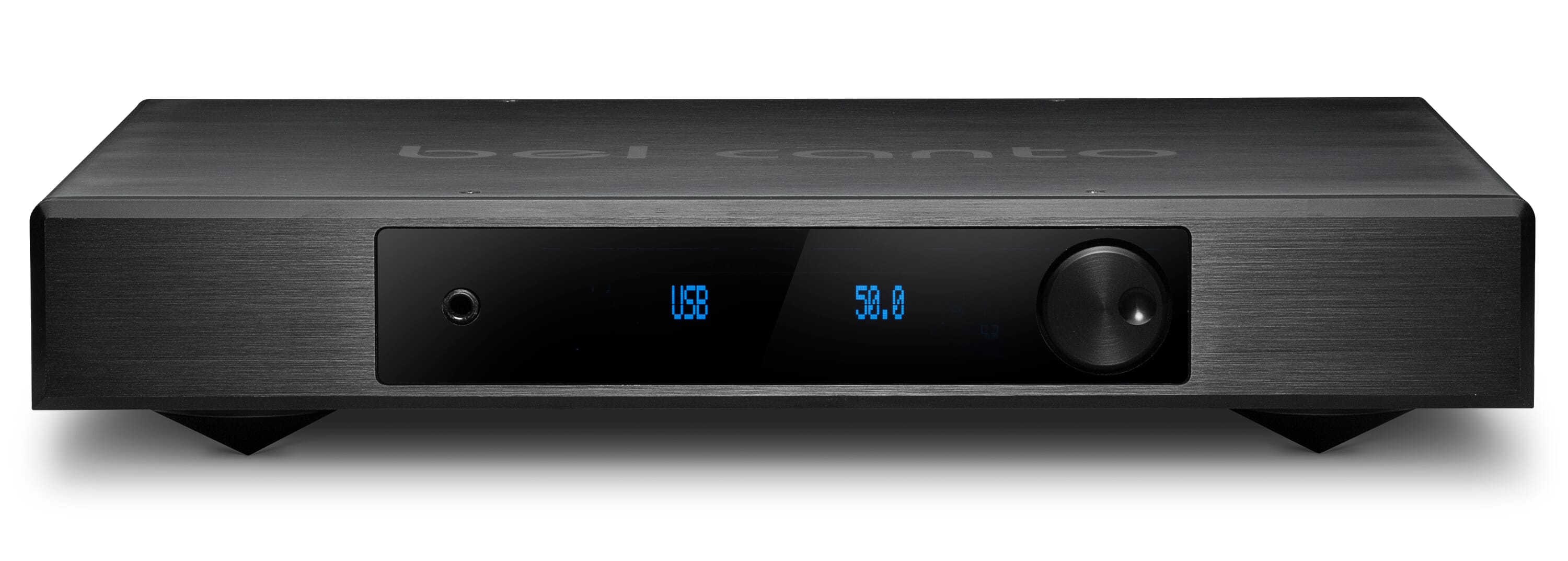

The new E1X integrated shares the DAC control preamplifier core and functions with a custom power amplifier rated at 180/250 watts. Stream music through Ethernet or USB, or the full suite of digital inputs, line level inputs, sub output and MM/MC software controlled analog phono stage. Features include software controlled Trim, Bass EQ and subwoofer filter management. Roon Ready or DLNA control with Bel Canto SEEK iOS APP to stream Tidal/MQA, Qobuz or your personal library.
Technical Specifications
24bit Data to 192ks/s : AES, SPDIF, TOSLINK
24bit Data to 192ks/s, MQA, and DSD64: 10/100
Ethernet
24bits to 384ks/s, MQA, and DSD64/128 (DoP): USB2
Audio
Headphone : 4.5Vrms maximum, 32ohm minimum load
Input Sensitivity : MM: 2.5mV to 5mV; MC: 0.25mV to
0.5mV
Input Load : MM: 47K ohms; MC: 50, 100, 500, 1000
RIAA Accuracy : +/- 0.25dB, 50Hz-15kHz
THD+N : <0.01% 1kHz A-Weighted
SNR : >70dB A-Weighted
Damping factor : >500
Maximum Power Output : 250W-4ohm, 180W-8ohm
Peak Output Current : 18 amperes
Frequency Response : -3 dB 0.5Hz-50kHz, all loads
Output connections : 2-pair WBT Nextgen binding posts
Dynamic Range : 125dB A-weighted
THD+N : <0.001% 1W, 1kHz, 4 ohms
