The new 5-inch full-cone midrange driver enables wider dispersion and greater midrange transparency. Like the bass driver, the midrange also incorporates an advanced Graphene carbon fiber sandwich cone. A new long-life foam surround helps achieve ideal cone/surround integration, faster settling time and impressively low distortion. The all-new motor system features a pure Titanium voice coil that operates in a super-stabilized magnetic field with a pure copper pole cap to minimize eddy currents and maximize efficiency. This latest midrange driver design truly sets a new benchmark of measured performance. A dedicated sub-enclosure houses the midrange driver, protecting it from the extensive back wave energy of the bass drivers.
The tweeter dome is based on the fundamental design platform and geometry of the M-Series tweeters and shared with the other A-Series models; the tweeter incorporates a pure beryllium-diaphragm with an optimized 28-mm dome. Magico encases the customized neodymium motor system in an engineered back chamber with the companyâs most advanced damping materials. This enables ultra-low distortion, high power handling, massive dynamic capabilities and extended linear voice coil movement.
M-Resist Ultra Foil Resistors
The A5 will be the first product in the world to offer Mundorfâs new M-Resist Ultra foil resistors. Now perfected after years of development, the new resistors deliver greater power handling, transparency and liquidity. The Elliptical Symmetry Crossover topology acoustically integrates all five drivers using a full complement of state-of-the-art components from Mundorf EB Gmbh of Cologne, Germany. The 3-way network features a 24 dB per octave Linkwitz-Riley filter that maximizes frequency bandwidth while preserving phase linearity and minimizing intermodulation distortion.

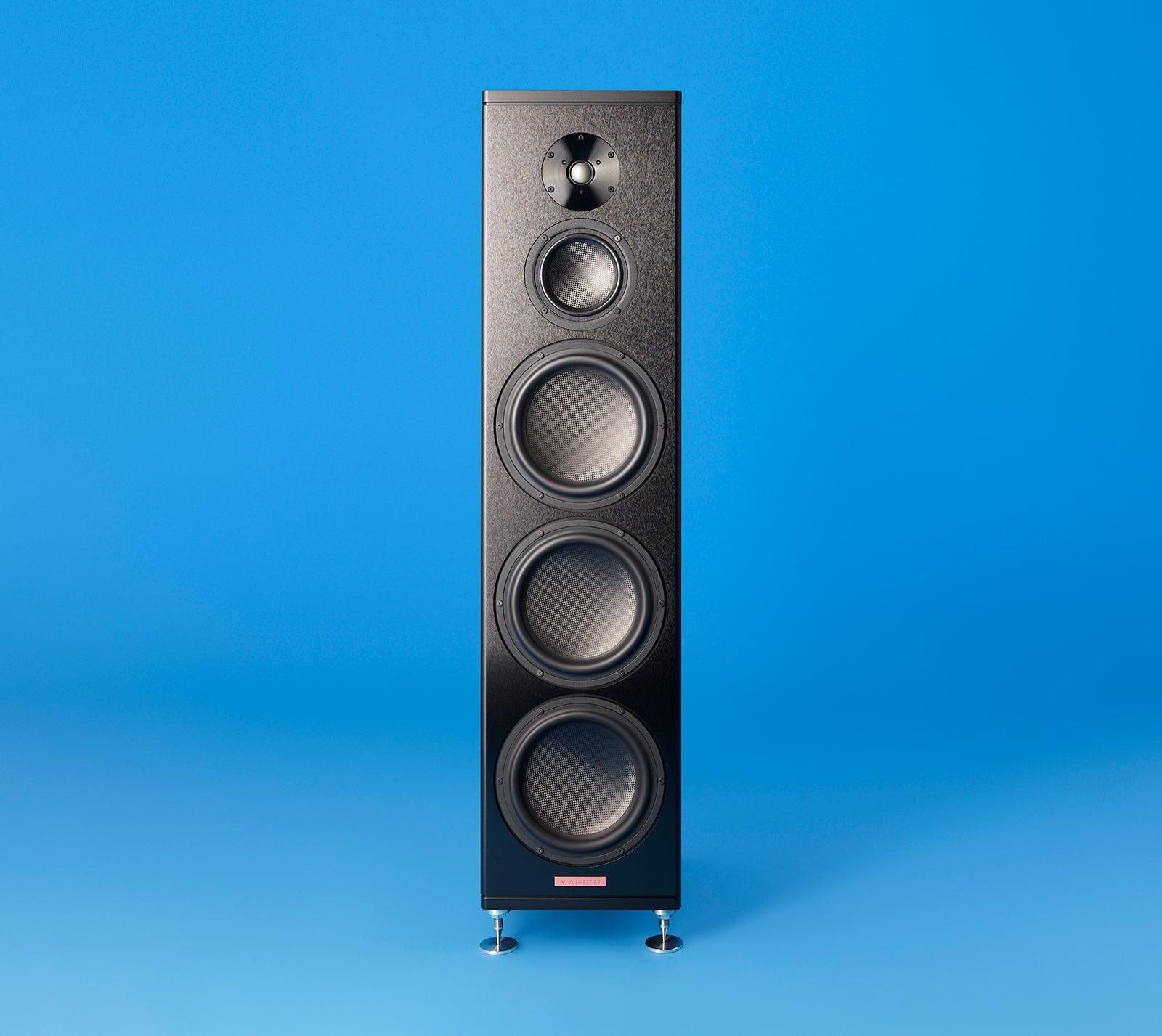

Driver Complement
1â Tweeter (x1)
5â Graphene Nano-Tec Midrange (x1)
9â Graphene Nano-Tec Bass (x3)
Â
Specifications
Sensitivity: 88dB
Impedance: 4 Ohm
Frequency Response: 24 Hz â 50 kHz
Recommended Power: 50-1000 watts

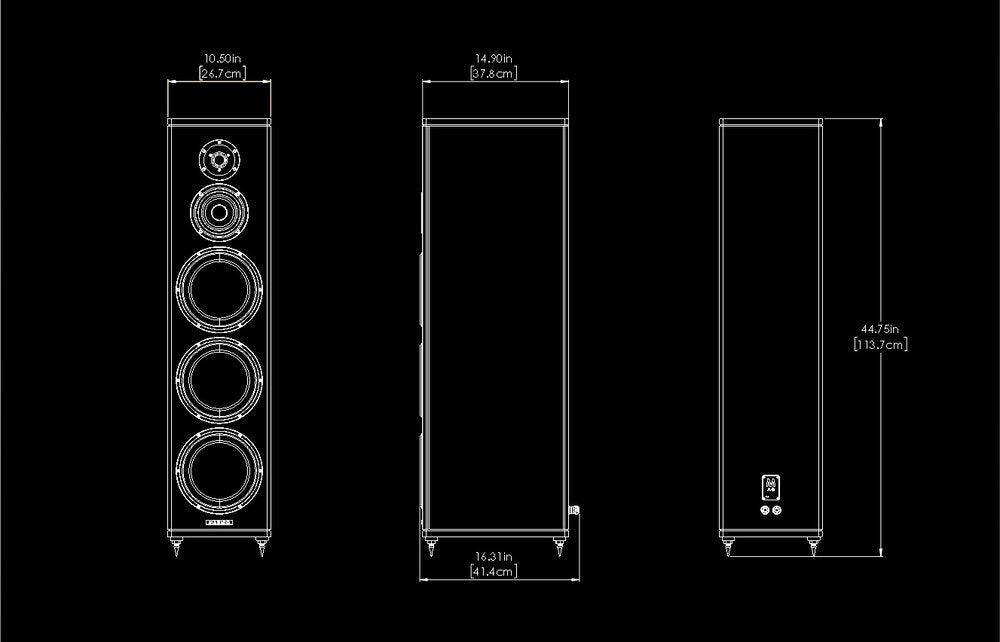

Dimensions: 10.5â (W) x 14.9â (D) x 44.75â (H)
Weight: 180 lbs.
