Tweeter Highlights: The S5âs tweeter is based on the model used in the M Series. The S5âs 28mm tweeter uses a diamond-coated beryllium diaphragm. A neodymium-based motor system yields the lowest distortion possible today along with even greater power handling than previous S Series speakers. The S5âs high frequencies are chock-full of textural detail and the sonic subtleties Magico is renowned for.
Midrange Highlights: The S5âs midrange is 6â in diameter with a 3â voice coil. A key change from previous Magico S Series speakers is the Nano-Tec Gen 8 cone structure: an aluminum-honeycomb core sandwiched by graphene-reinforced carbon-fiber skins, terminating in  an innovative, long-life foam surround. The coneâs revolutionary core structure allows lower thickness, lighter weight, and more effective damping. This driver features two extra-large neodymium magnets, a full copper cap, and a pure titanium voice coil. The S5âs midrange sets a new benchmark for measured performance in both the frequency and time domains. The result is midrange clarity that will leave you speechless.
Woofer Highlights: Bass in the S5 is provided by a pair of 10â woofers. Each driver sports a 5â titanium voice coil and a Nano-Tec Gen 8 cone built into a third-generation chassis. This woofer has a huge copper cap and is capable of one half inch of linear movement with the lowest distortion available in a driver of its size. This enables the S5 to provide accurate, undistorted low frequencies while producing high maximum sound-pressure levels. The S5 produces low frequencies with awe-inspiring power and depth, while maintaining fidelity to the source not heard outside of a Magico loudspeaker.
The newly designed curved-and-shaped aluminum cabinetâoptimized using simulated 3D modeling to minimize internal resonancesâmaximizes stiffness while enabling optimal damping strategies. The front baffle is curved for minimal diffraction effects. A Polytec Laser Vibrometer was leveraged to precisely measure the most minute vibration of the cabinet panels and calculate the sound-pressure levels they generate. This enabled Magico to address them early in the design process, resulting in the desired target: the S5âs cabinet adds no coloration to the sound. Notably, the S5âs internal volume was increased by 31% versus the previous version. The larger bass cabinet enables the S5âs low-frequency response to plumb 5Hz lowerâto 20Hzâwhile keeping the same sensitivity (88dB).

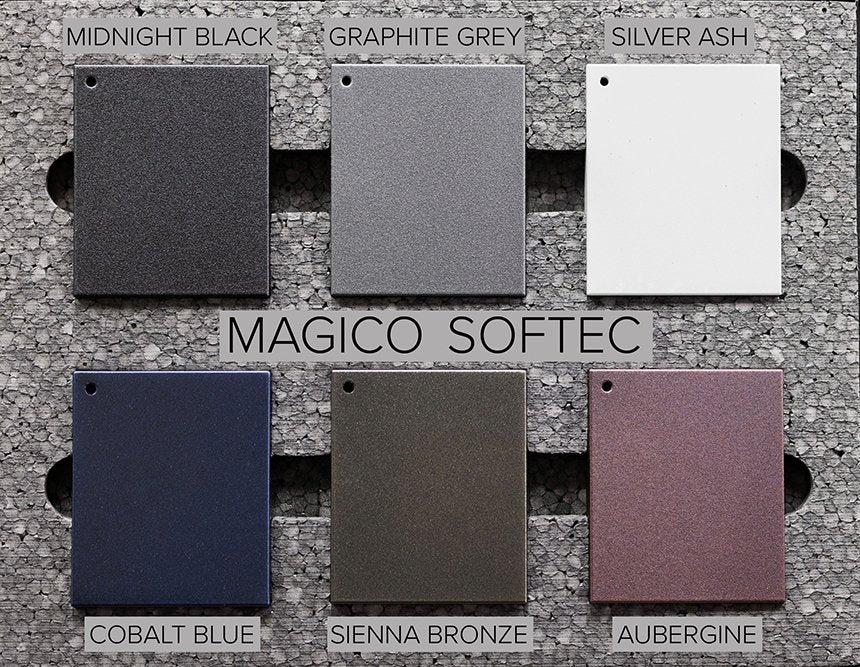

The S5 is available in a generous selection of premium finishes: six Softec choices that are rich in color depth, smooth to the touch, and very durable; and six High Gloss finishes that are expertly polished to a lustrous shine with a clear top coat. The three-footer support system uses constrained-layer damping and premium materials for greatly enhanced sonic performance.
Driver Complement:
1 x 1.1" (28mm) Diamond Coated Beryllium Dome Tweeter
1 x 6" (15.24cm) Graphene Nano-Tec Gen 8 Cone Midrange
2 x 10" (25.4cm) Graphene Nano-Tec Gen 8 Cone
Sensitivity: 88dB
Impedance: 4 ohms
Frequency response: 20Hz-50kHz (in-room)
Recommended Power: 50 watts - 1000 Watts
Dimensions: 48"H x 19.3"D x 19"W (122cm x 49cm x 48.5cm)
Weight: 262 lbs. (118 kg)
