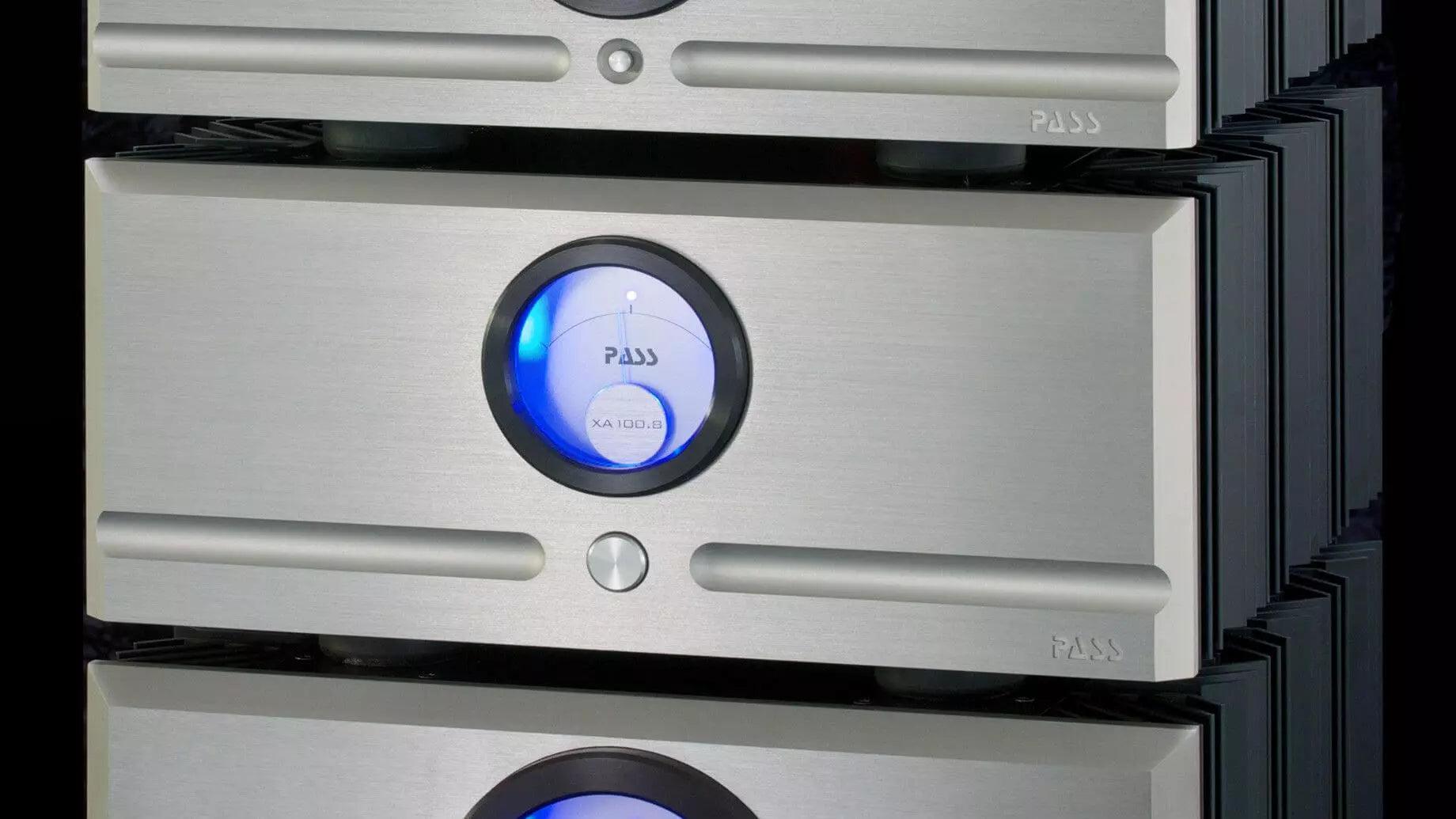

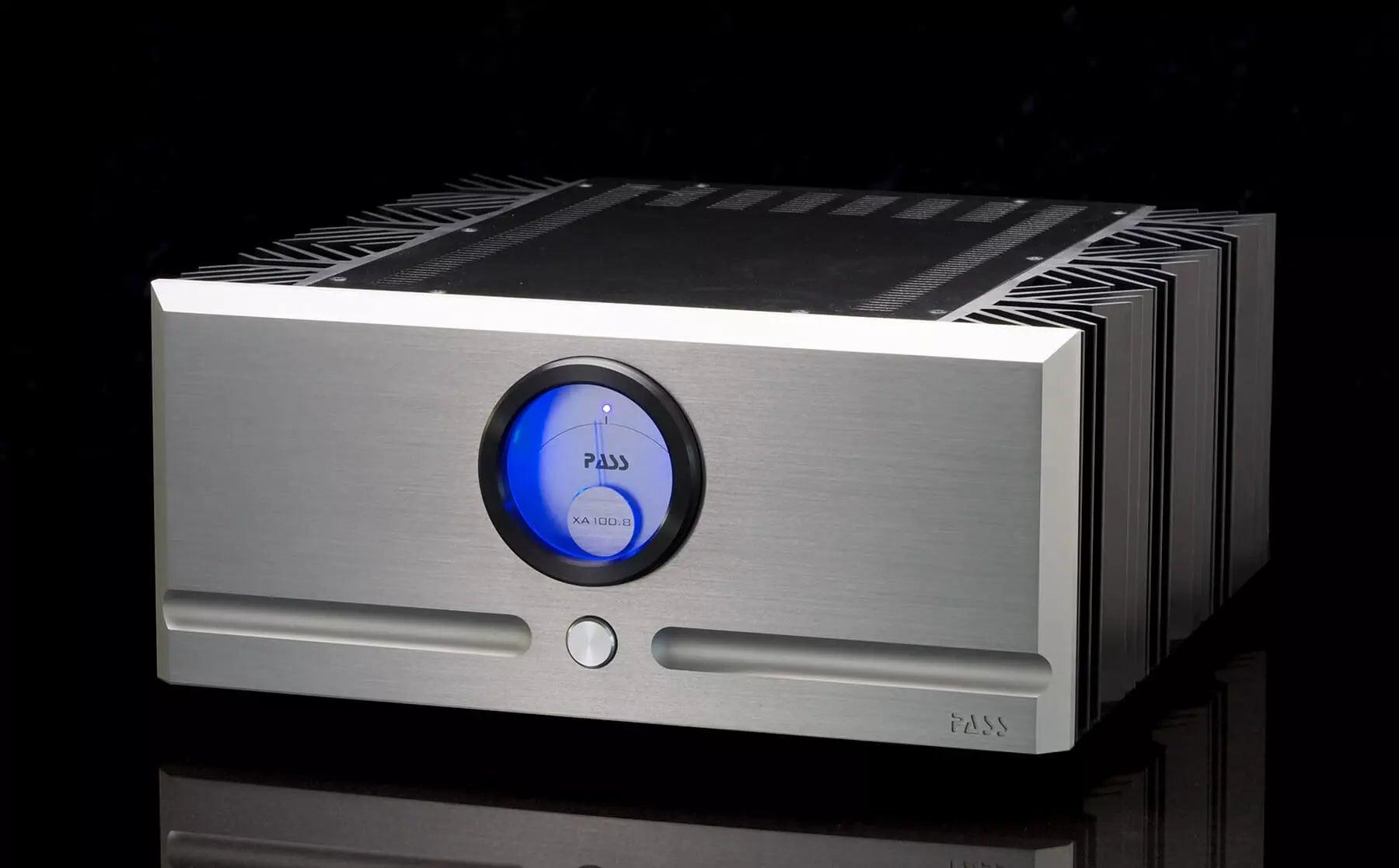

Pass Labs XA100.8 Monoblock Power Amplifier (Pair) - High-End Audio System for Home Theater & Audiophile Listening Rooms

The middle sibling of the XA.8 series, the XA100.8 realizes a muscular yet highly refined sonic profile. Like all Pass Laboratory's power amplifiers, they feature both single-ended and balanced inputs, Furutech five-way binding posts, and a convenient ground terminal for safe subwoofer connection. Improved constant-current sourcing, precise voltage references and current-feedback all represent new benchmarks in state-of-art amplifier design. The result is a larger, more realistic soundstage, sharper transient response, and the prized ability to reach concert-hall dynamics and realism without strain.



Specifications
Class - A
Type - Mono
Gain (dB) - 26
Full Pwr @ 26 dB gain (V) - 1.41
Low-Frequency Response - 1.5 Hz
High-Frequency Response - 100KHz
Power Output /ch (8 ohms) - 100
Input Impedance (SE & BAL Kohms) - 50/100
Damping Factor - 200
Power Consumption @ Idle (Watts) - 500
Unit Dimension (W x D x H)(In.) - 19 x 21.25 x 9
Unit Weight (LBS) - 99
