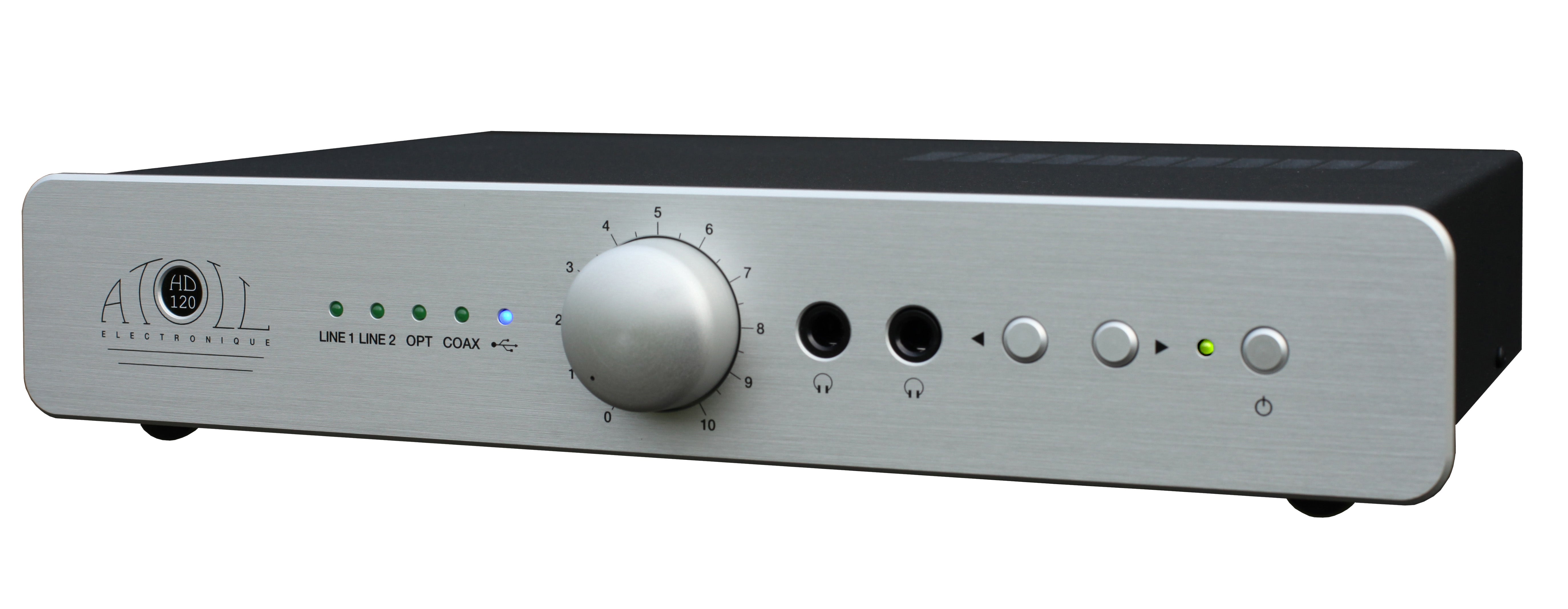

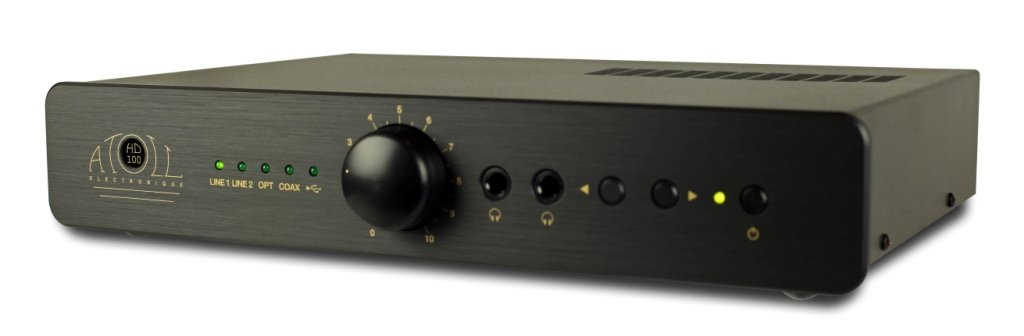

This stunning product can serve many purposes - from straightforward preamplifier to headphone amp/DAC to standalone digital-to-analog converter! It's small size makes it perfect for desktop applications as well!
MAIN FUNCTIONS:
– 2 Headphones Jack Outputs (6,35mm – 1/4″)
– Inputs Selection and Indicators
– Analog Volume Control (ALPS potentiometer)
– Optional Remote Control (volume and sources selection)
– Stand-by

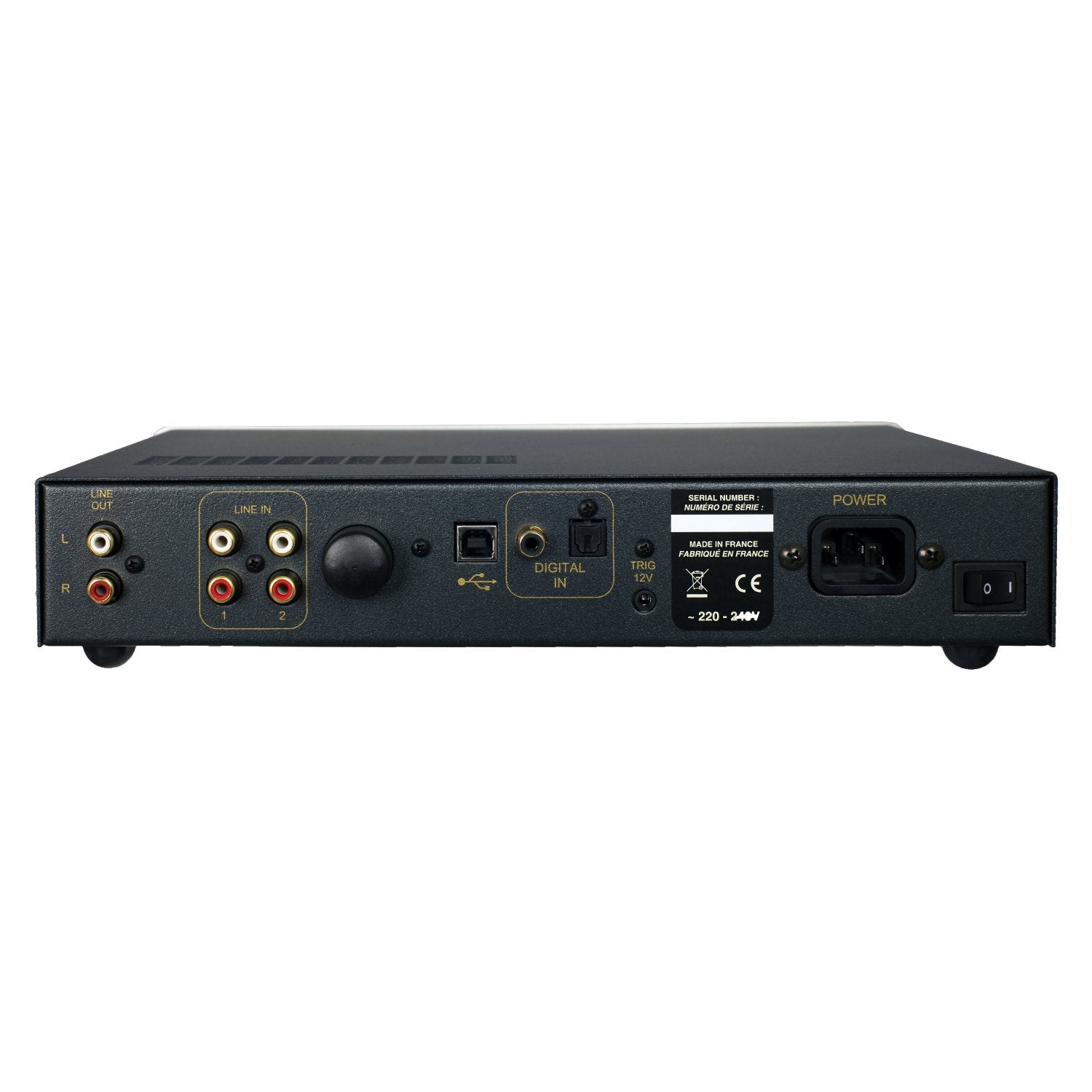

CONNECTING:
– 2 Line Inputs (RCA)
– 1 Preamp. Output (RCA)
– 1 Coaxial Input (32bits/384kHz)
– 1 Optical Input (24bits/192kHz)
– 1 Trigger 12V output (direct switsh on/off with MA100)
Additional on HD120:
– 1 USB-B 24/192kHz asynchronous input
– 1 Bluetooth input (i2C direct)
HD100 – HD120 – TECHNICAL DATAS:
Supply : 12,8 VA
Power : 1,4W / 32ohms
Impulse Power : 6,8W/ 32ohms
Total of capacitors : 12 425 µF
Input Impedance : 220 kohms
Output Impedance on Headphones (X2) 1 ohm
Bandwidth : 1Hz – 150kHz
Rising Time : 3 µs
Signal/Noise Ratio : 112 dBA
Distorsion at 1kHz : < 0,01%
Dimensions : 320*220*60 mm
Weight : 2,5 Kg
