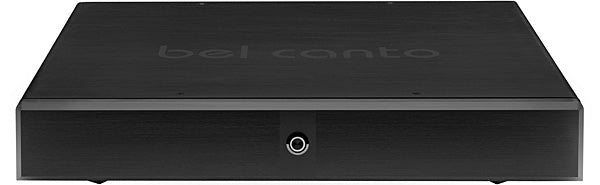

E1X Stereo Amplifier

The E1X Stereo amplifier is designed in a sleek all-aluminum chassis using our unique constrained layer damping that provides the highest quality anti-vibration platform for high-power amplification. The E1X discrete SSHC (Single Stage High Current) and output stage are combined with switch mode power that produces 250W 8 ohms and 500W into 4 ohms per channel, delivering incredible high-power accuracy and musicality to your .

Our proprietary SSHA (Single Stage High-Current Amplifier) interposer defines the sonic quality of the E1X Amplifier. This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains constant very low distortion levels through the audio band because of its high open-loop bandwidth. The SSHA module brings a further element of dynamic resolution and contrast to the NCore Amplifier power buffer. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design. The PCB represents a final degree of design refinement that is especially critical when the circuit is capable of 130dB of dynamic range or more.
