P1 Specification highlights
Network playback:
- Up to DSD512
- Up to 384 kHz, 16–32-bit, Stereo
- MQA Full Decoding
Upsampling rates & bit depths:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files

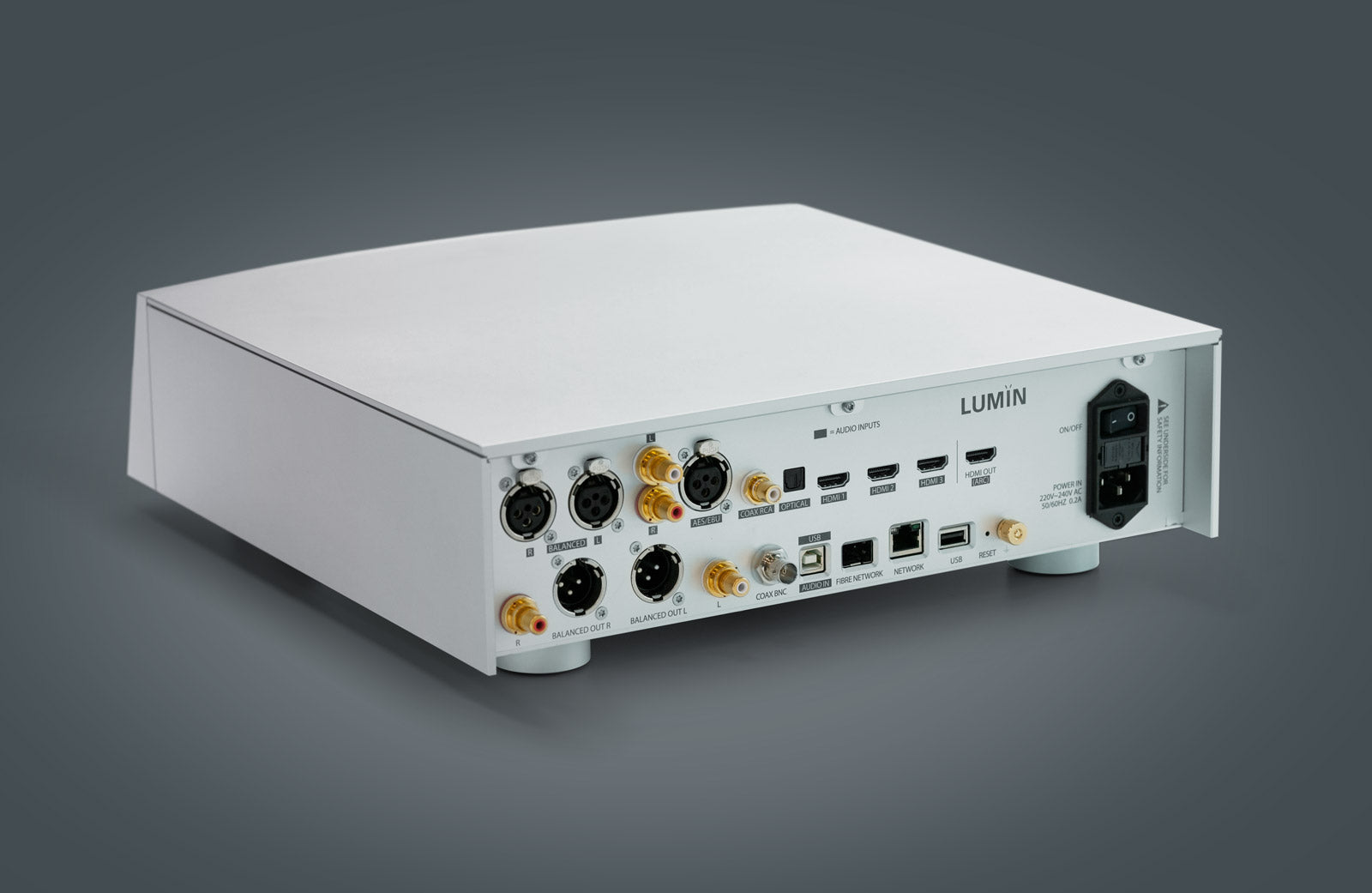

Digital Input:
USB:
- USB Audio Class 2 Compatible
- WINDOWS 10 (Release 1703 or above) / Mac OSX or above
- DoP 128 support
- PCM 44.1–384 kHz, 16–32-bit, Stereo
AES/OPTICAL/SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
HDMI x3:
- PCM 2.0 Audio support
- 4K Video Passthrough
Digital Output:
USB:
- Native DSD512 support
- PCM 44.1–384 kHz, 16–32-bit, Stereo
BNC SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
HDMI x1:(HDMI Passthrough and ARC support)
- PCM 2.0 Audio support
- 4K Video Passthrough
- ARC (Audio Return Channel) support
Analogue Input:
- RCA Unbalanced x1
- XLR Balanced x1
Analog Output:

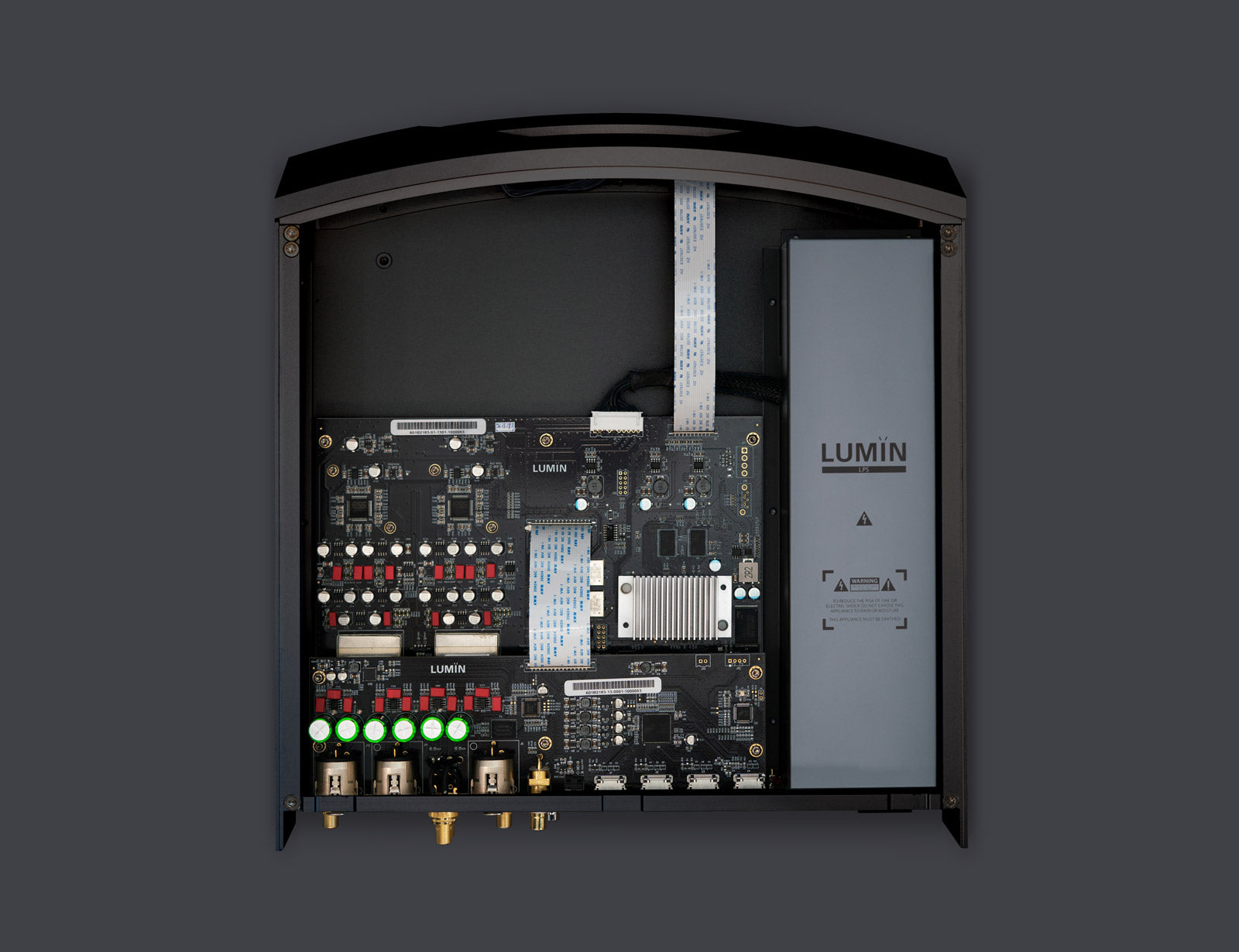

- Dual ESS SABRE32 ES9028Pro DAC chips
- Fully balanced layout with high-quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
- Femto Clock System with precision FPGA distribution
Optical Network:
- Industry-standard SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
Power Supply:
- Internal dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator
Physical:
Finish:

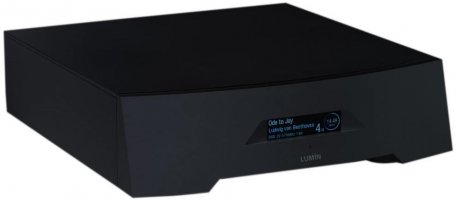

- Black anodised aluminium
- Raw aluminium
Lumin (solid aluminium chassis):
- 350mm (W), 380mm (D), 107mm (H), 12kg
