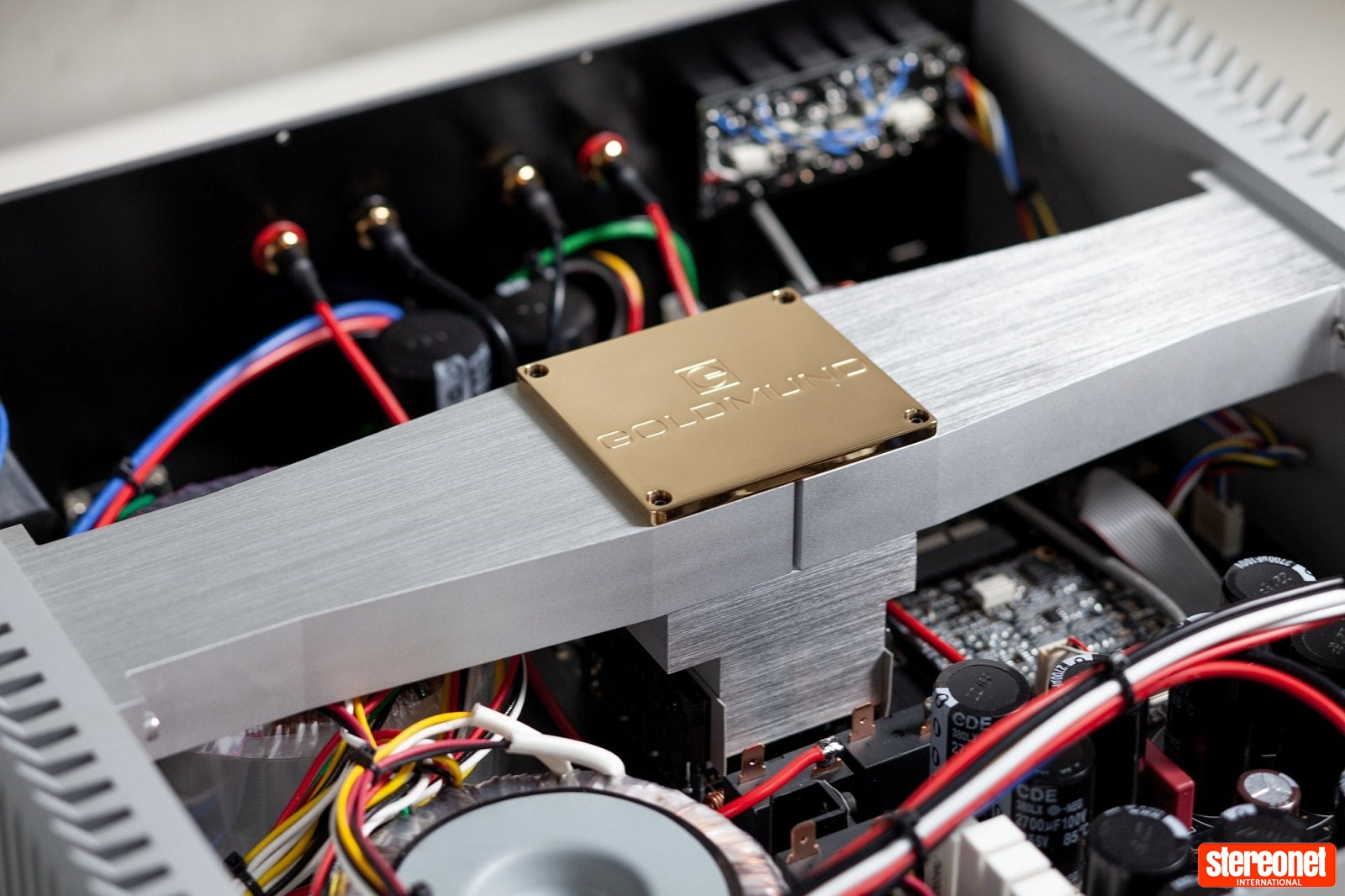

Crafted with meticulous attention to detail, the Telos 690 exemplifies Goldmund’s commitment to precision mechanics. Its upgraded panel structure not only reinforces the amplifier’s enclosure but also enhances mechanical grounding and vibration dispersion capabilities, elevating every interaction with the amplifier into an extraordinary sensory experience.
POWER SUPPLY
Nominal line voltage: 110 V or 220 V
Input voltage range: +/- 10 %
2x 350 VA Toroidal Power Transformer
Capacitor bank: 46’000 μF
OUTPUT POWER
Maximum power (IEC 62368-1):
· 2 x 250 Wrms on 8 Ω / 1 % THD
· 2 x 320 Wrms on 4 Ω / 1 % THD
RATED POWER CONSUMPTION
IEC 62368-1, 1/8 Output Power at 8 Ω: 275 W

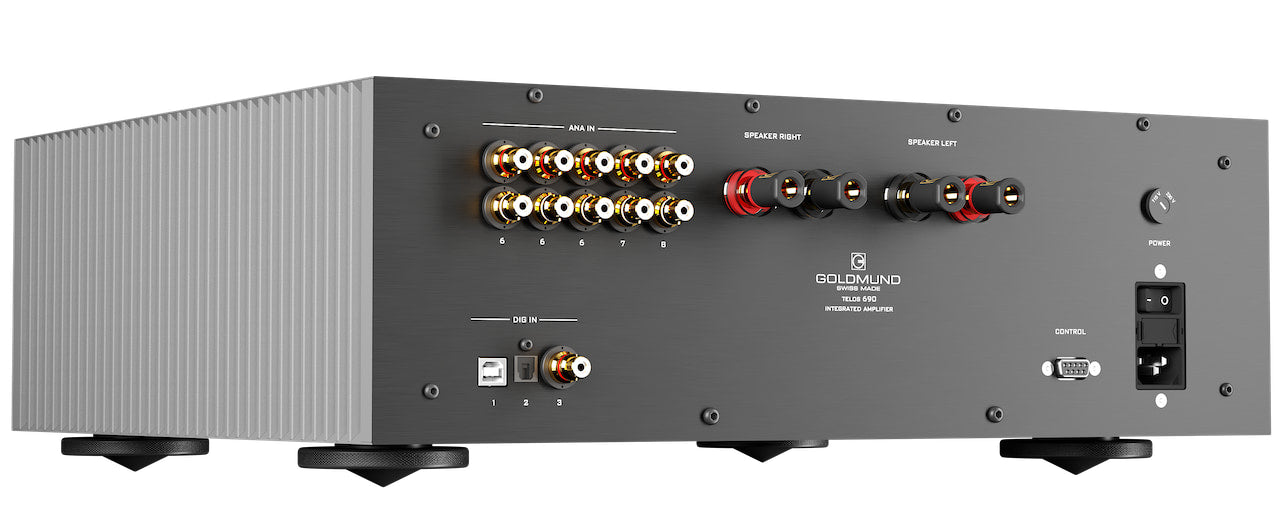

REAR PANEL
2 x output binding posts (left & right)
1 x On/Off power switch key
1 x Voltage input selector
RS232 Command connector
1 x USB device: Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows, contact your Goldmund representative):
· Sample rate up to 384 kHz/Bit depth up to 32
· DSD64, DSD128 over PCM capabilities
1 x Toslink Optical
1 x Digital S/PDIF coaxial RCA 75 Ohms
5 x Analog RCA (left & right)
INPUT
Max level before clipping, Analogue input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT
Max level before clipping, 1 % THD, unloaded:
170 Vpp
DISTORTION
IMD (SMPTE), unloaded: < 0.02 %
THD+N, unloaded: < 0.08 % from 20 Hz to 20kHz at 30 Vrms output
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 10 μV from 20 Hz to 20 kHz
GAIN
35 dB
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 100 dB
DAMPING FACTOR
600 at 1 kHz / 8 Ω
AMPLIFIER SIZE & WEIGHT
44 W x 16.5 H x 44.5 D (cm)
28 kg
PACKAGING SIZE & WEIGHT (NET)
51 W x 26 H x 56 D (cm)
26 kg
COLOR
Standard
Silver Gray
Custom
Black Matte
