Presented in Goldmund’s iconic silver-gray finish for its standard edition, the Telos 800 exudes sophistication. For those seeking personalized elegance, a golden ring option is available to replace the silver-gray ring on the top left front, allowing for a bespoke touch to suit individual preferences. Goldmund also offers a Black Version of the Telos 800, available on demand.
The Telos 800 marks a significant milestone for Goldmund, redefining the possibilities in high-fidelity audio with its exceptional performance and ground-breaking price point. It transcends being a mere electronic component; it embodies Goldmund’s unwavering commitment to audio perfection. Designed and crafted in Switzerland, it represents the pinnacle of audio engineering and craftsmanship, offering unmatched sound quality for the most discerning audiophiles.
POWER SUPPLY
Nominal line voltage: 115 V or 230 V, 8A slow-blow fuse
Input voltage range: +/- 10 %
3200 VA Toroidal Power Transformer

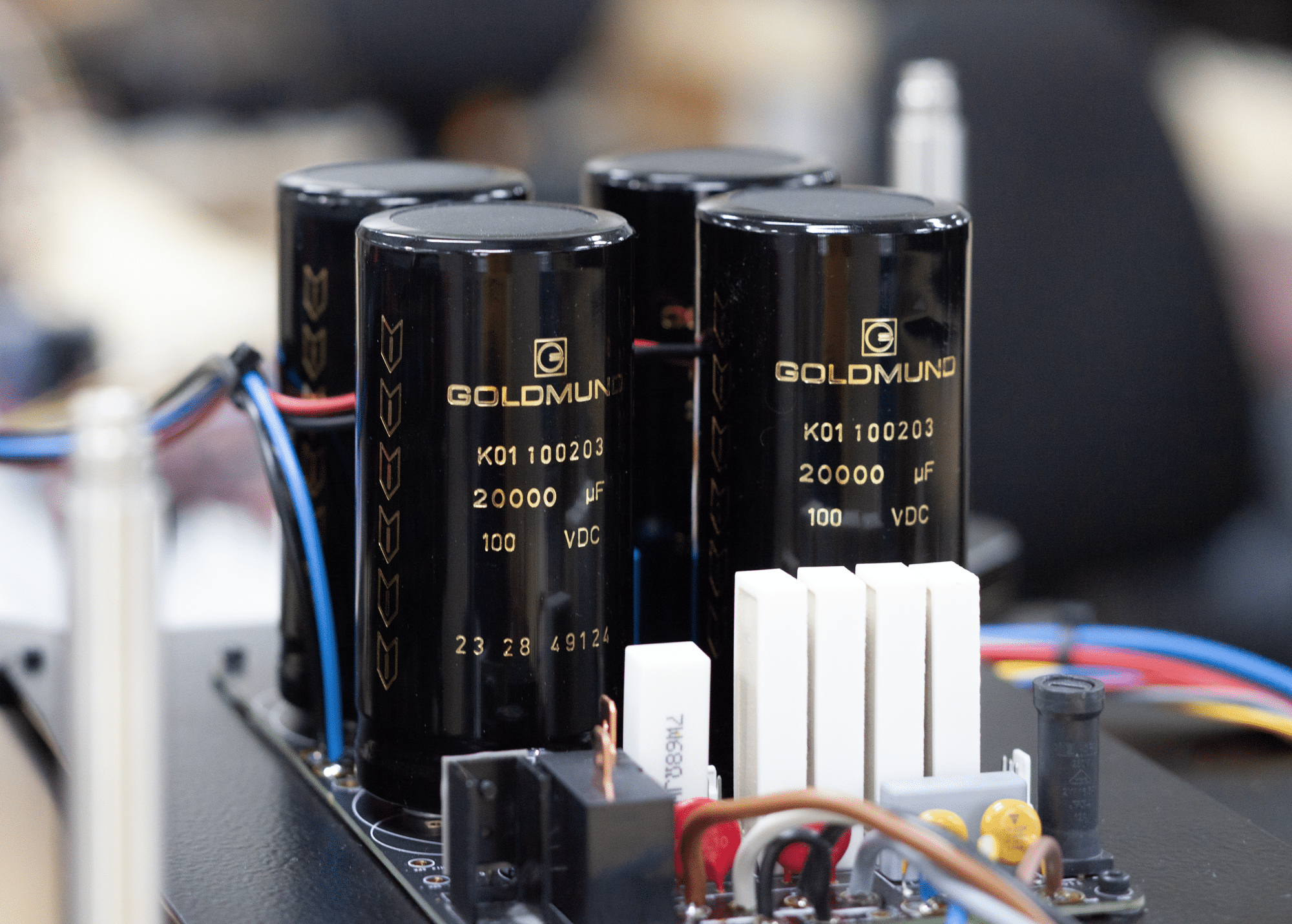

Capacitor bank: 93’600 μF
RATED POWER CONSUMPTION
IEC 62368-1, 1/8 Output Power at 8 Ω: 335 W

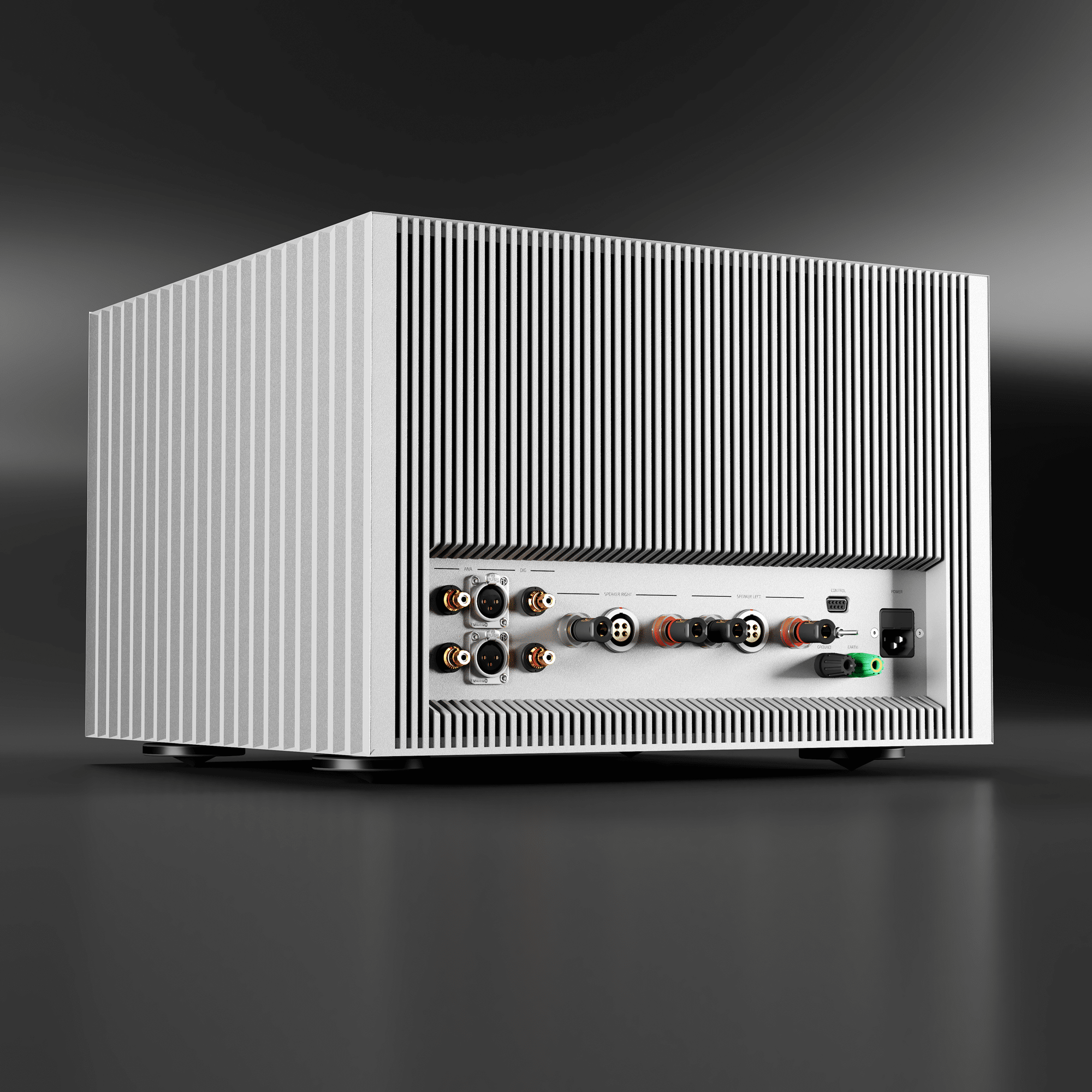

REAR PANEL
1 x Power cord: universal socket 3 lugs
1 x Main fuse (8 A slow-blow for 115V & 230 V)
1 x Green-yellow AC earth binding post (with bridge connection)
1 x Black ground binding post (with bridge connection)
1 x Ground/Earth lift switch
4 x output binding posts (2x red & 2x black ; Left & Right speaker Output)
2 x output Goldmund speaker 4B type connector (Left & Right speaker Output)
2 x Analogue RCA input (unbalanced connector, Left & Right)
2 x Analogue XLR input (balanced connector, Left & Right)
1 x Digital input and output RCA connectors
1 x RS232 command connector
INPUT
Max level before clipping, Analogue input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT
Max level before clipping, 1 % THD, unloaded: 170 Vpp
OUTPUT POWER
Maximum power (62368-1):
· 2 x 300 Wrms on 8 Ω / 1 % THD
· 2 x 390 Wrms on 4 Ω / 1 % THD
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output
OUTPUT NOISE FLOOR
Analogue input terminated with RCA Shorting Caps, unloaded: < 3 μV from
20 Hz to 20 kHz
GAIN
35 dB
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB
DAMPING FACTOR
600 at 1 kHz / 8 Ω
AMPLIFIER DIMENSIONS
44 W x 32 H x 45.2 D (cm) – 17.3 W x 13 H x
17.8 D (inch)
57 kg
COLOR
Standard
Silver-gray with top gray ring
Custom
Silver-gray with top gold ring
Black matte with top black ring
Black matte with top gold ring
