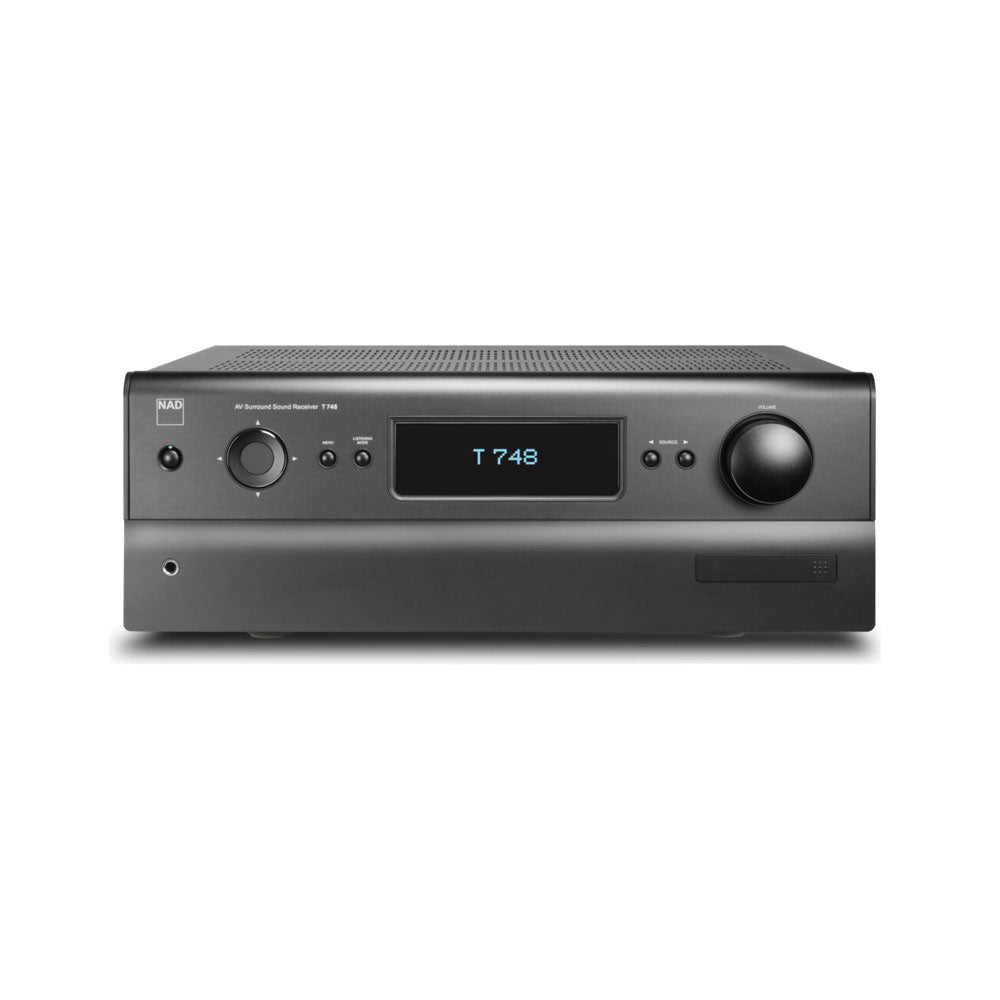

NAD T 748 v2 A/V Surround Sound Receiver
The T 748V2 offers killer video performance and the latest digital video technology, including 3D video at resolutions up to 1080p. Analogue video, Audio Return Channel, and Consumer Electronic Control are all supported on HDMI for simple integration with your digital video devices. You’ll also enjoy the NEW Zone 2 feature.
Popular surround sound formats, including Dolby TrueHD and DTS Master Audio, are decoded using the latest generation of high-speed DSP. Stereo source material can be converted to surround sound using our exclusive EARS surround mode, praised by reviewers for its natural sound quality.
In contrast to many AV receivers, the T 748V2 is incredibly simple and user-friendly. We include all the essentials and none of the fluff, making setup and control easy and straightforward. For convenience, we have also included connections for external control systems like Crestron, AMX, Nevo, etc.
While other AV receivers only offer one global setting for all sources, you can customize the T 748V2 for various systems or material (Blu-ray player, action movie, music, gaming, etc.) with specific speaker settings and surround modes. Another thoughtful touch is the ability to rename Inputs to match your components
AMPLIFIER SPECS
FTC 2 x 80W
Full Disclosure Power (all channels driven simultaneously) 7 x 40W
IHF Dynamic Power 8 ohms
4 ohms
2 x 110W
2 x 160W
Total Harmonic Distortion at rated power <0.08%
IM distortion at rated power <0.08%
Damping Factor, 8 ohms >60
Input Sensitivity and Impedance 250mV/47kohms
Frequency Response ±0.5dB (ref. 1kHz, 20Hz-20kHz)
Signal/Noise Ratio >100dB (ref. rated power at 8 ohms, A-WTD)
>90dB (ref. 1W at 8ohms, A-WTD)
TUNER SECTION
AM SECTION
Tuning Range 520kHz - 1710kHz (120V version, 10kHz steps)
522kHz - 1620kHz (230V version, 9kHz steps)
Usable Sensitivity 60dBμV
Signal/Noise Ratio 40dB
Total Harmonic Distortion <1.5%
Loop Sensitivity 20dB S/N 60dBμV
FM SECTION
Tuning range 87.50MHz - 108.00MHz
Usable Sensitivity Mono <10dBμV
Signal/Noise Ratio Mono
Stereo
65dB
60dB
Total Harmonic Distortion Mono
Stereo
0.25%
0.5%
Channel Separation 30dB
RDS Decode Sensitivity 28dBμV
GENERAL
Idle Power 50W
Standby power <0.5W
Unit Dimensions (WxHxD) - Gross* 435 x 167 x 397mm
17 1/8 x 6 5/8 x 15 11/16 inches**
Shipping weight 14.0kg (30lb)
